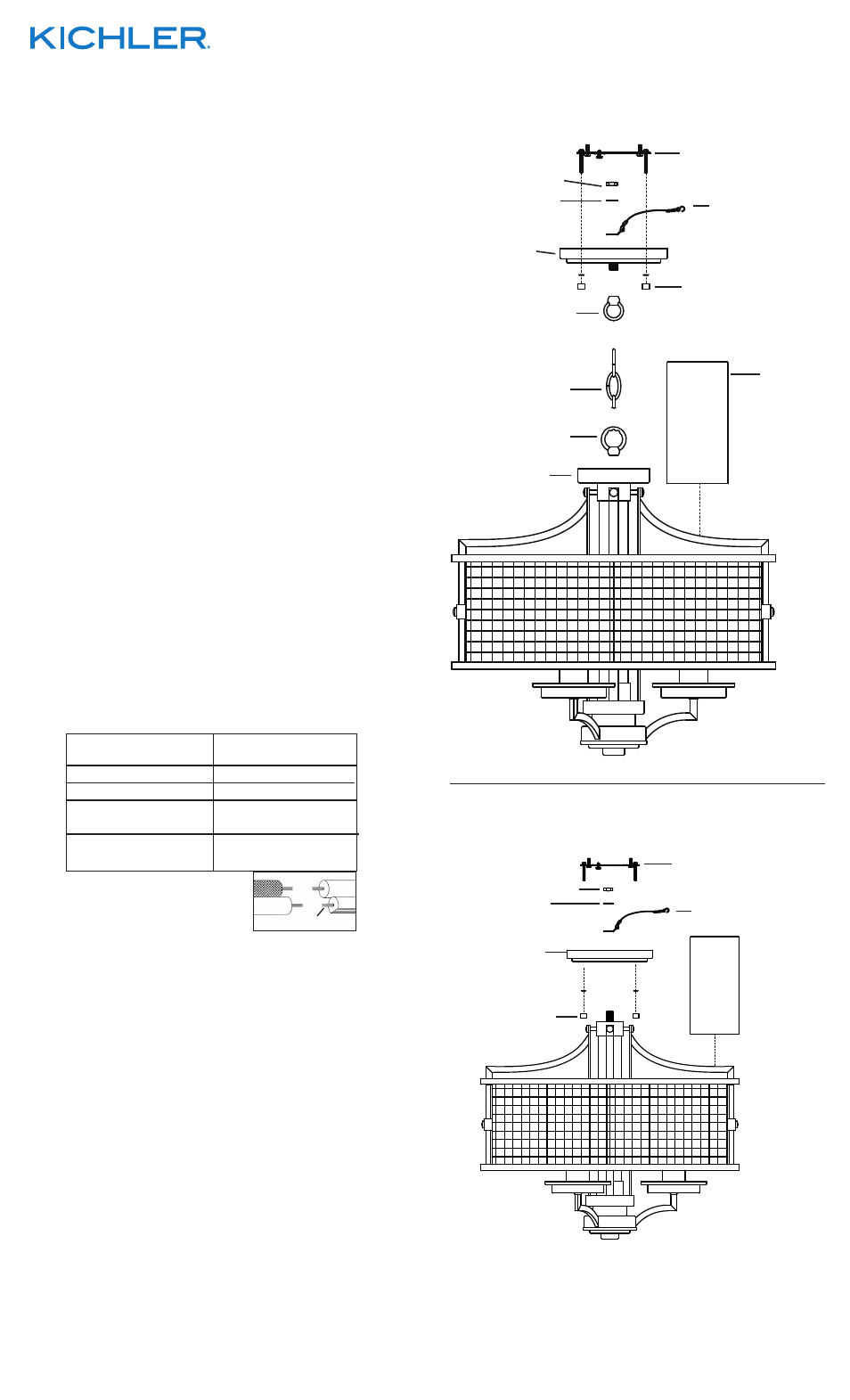

CHAIN DROP INSTALLATION INSTRUCTIONS

1) Thread small threaded pipe into end of small loop.
2) Pass threaded pipe on end of small loop up through hole in
canopy.
3) Slip loop at end of safety cable over end of threaded pipe

protruding from inside canopy.

4) Thread lockwasher onto end of threaded pipe protruding

from inside canopy.

5) Thread hexnut onto end of threaded pipe protruding from

inside canopy. Tighten hexnut to secure small loop to canopy.

6) Pass fixture wire from top of fixture through hole in bottom

of large loop. Thread large loop onto threaded pipe on top of

fixture.
7) Attach one end of chain to large loop on top of fixture.

Attach other end of chain to small loop on canopy.

8) Weave fixture wires through chain links no more than 3

inches apart.

9) Pass fixture wires through hole in small loop on canopy and

up through hole in canopy.

10) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

11) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

12) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

13) Attach safety cable to slot in mounting strap.
14) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

15) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

16) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

17) Lower glass shade over socket. Set bottom of glass shade

in socket cup.

SEMI FLUSH INSTALLATION INSTRUCTIONS

1) Remove small canopy from top of fixture by unscrewing

hexnut from threaded pipe inside small canopy. Remove

hexnut and unscrew lockwasher from threaded pipe. Raise

canopy up and remove from fixture.

2) Take the large canopy with two small holes and one large

center hole. Pass fixture wire from top of fixture body through

center hole in canopy. Pass center hole in canopy down over

end of threaded pipe on top of fixture.

3) Pass fixture wire through hole in loop at end of safety cable.

Slip hole in loop at end of safety cable over threaded pipe.

4) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto threaded pipe protruding from inside

canopy.
5) Pass fixture wire through hole in hexnut. Thread hexnut onto

threaded pipe protruding from inside canopy.

6) Follow steps 10-17 in Chain Drop Installation Instructions.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 9/26/14

IS-43581-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada
