FOR USE WITH LANDSCAPE LIGHTING SYSTEMS ONLY.
1) The device is accepted as a component of a landscape lighting system
where the suitability of the CSA or UL labeled combination shall be
determined by CSA, UL respectively or the local inspection authorities
having jurisdiction.
2) Fixture shall be connected to an extra low voltage transformer approved
for use with landscape lighting systems.
3) This fixture is to be connected to a secondary wiring of the following
type:
12 GA 60°C minimum type;
SPT-3 suitable for outdoor use; or
approved landscape lighting cable.
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE),
CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES,
GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT
BULB, LENS, OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1) Determine desired location for mounting fixture.
2) At desired location, hammer stake into ground. To avoid damage to stake,
place a board on top of stake while hammering. If ground is hard and
stake is difficult to install, make a crosscut in ground using a flat shovel.
3) Clear away area in ground at wireway slot in top of stake.
4) Lay 12V cable into wireway slot and screw fixture into stake. Aim fixture
in desired direction and secure by tightening locknut. If necessary, use
wrench or pliers for final tightening of nut.
5) Adjust angle of accent light by loosening Phillips head screw.
6) Adjust angle of cowl by loosening thumb screw.
7) TURN OFF POWER.
8) Make wire connections using supplied Quic Disc ™ following instructions
below, or using other approved wiring connection method (not
supplied).
Date Issued: 12/2/11 IS-16006-CB
OUTDOOR USE ONLY
DOM ETRE INSTALLE A L’EXTERIEUR
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada FIXTURE
LUMINAIRE
LOCKNUT
CONTRE-ÉCROU
STAKE
POTEAU
QUIC DISC ™ WIRING INSTRUCTIONS
Turn off power.
The full length of the 18 GA fixture wire may be used to connect with the 10 GA or 12 GA cable provided the following conditions are met:
• Wiring is to be protected by routing close to the fixture or accessory or secured to a building structure such as house or deck.
• 18 GA fixture wiring is to be cut off so that it is attached to the connector within 6 inches of the fixture or building structure.
• If it is necessary to make the connections underground, then no more than 6 inches of the 18 GA fixture wire is to be buried.
The Quic Disc ™ connector is designed to install one fixture and accommodates one 18 GA fixture wire and one 10 GA or one 12 GA supply wire.
Place the 10 gauge supply wire across the area marked 10 GA on Quic Disc ™ or place the 12 gauge supply wire across the area marked 12 GA
on Quic Disc ™ .
Place the 18 gauge fixture wire across the area marked 18 GA on the Quic Disc ™ . After the wires are in place, connecta the top of the Quic
Disc ™ to the base with supplied screw, making sure that the wires remain flat in the bottom portion of the Quic Disc ™ , and the screw is tightened
all the way down.
The copper contacts will automatically pierce the wires’ insulation. Excess 18 GA fixture wire that sticks out the end of the Quic Disc ™ is to be cut off.
Make no other wiring connections to the 18 GA fixture wire.
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Pour de plus amples informations sur la garantie, cliquez sur le lien ci-dessous : http://www.landscapelighting.com/portal/warranty_page

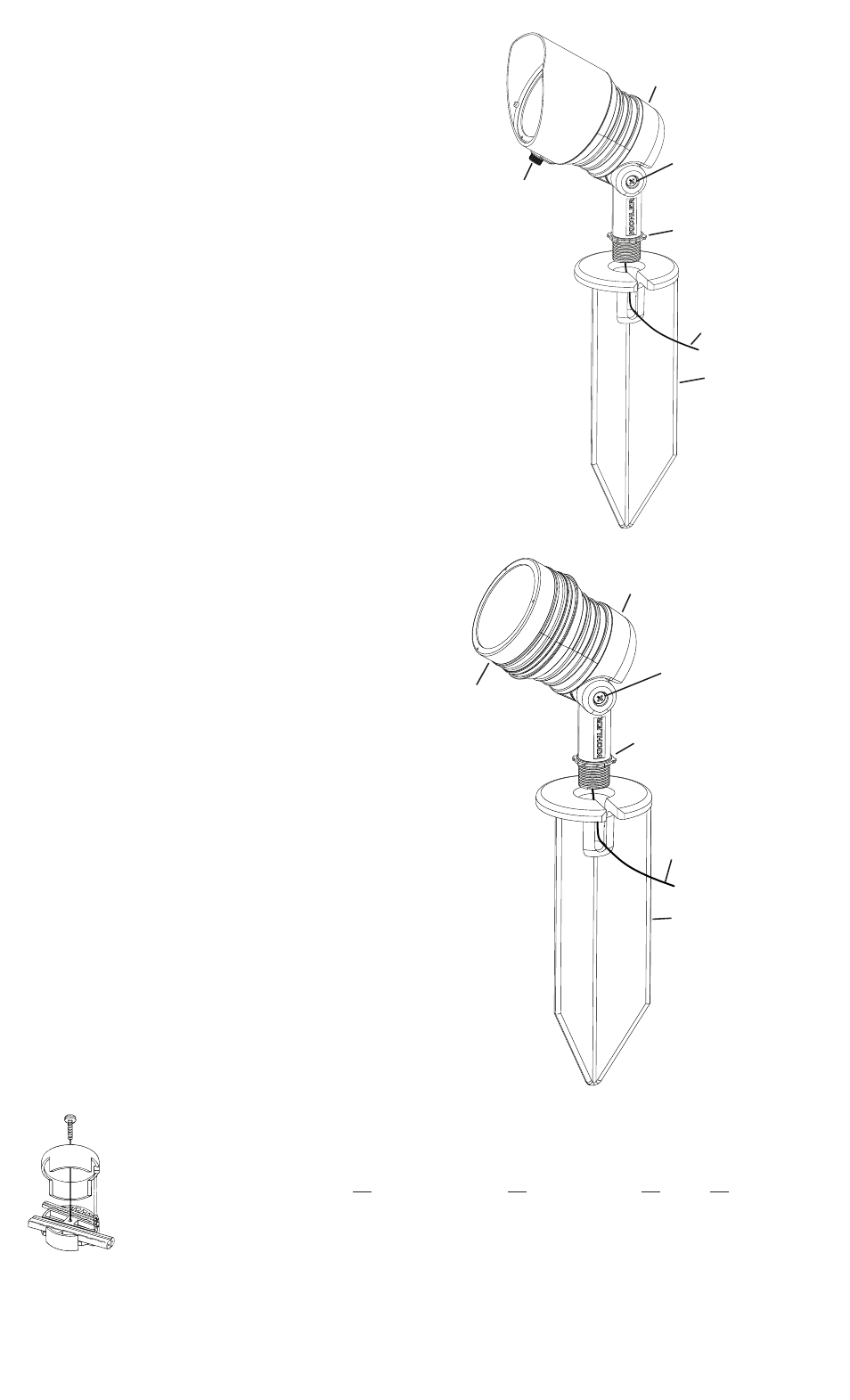

FIXTURE
LUMINAIRE
LOCKNUT
CONTRE-ÉCROU
STAKE
POTEAU
PHILLIPS HEAD SCREW TO
ADJUST ANGLE OF FIXTURE
VIS À TÊTE PHILLIPS POUR
AJUSTER L’ANGLE
DU LUMINAIRE
PHILLIPS HEAD SCREW TO
ADJUST ANGLE OF FIXTURE
SERRER LA VIS POUR
AJUSTER L’ANGLE
DU LUMINAIRE
THUMB SCREW TO ADJUST
ANGLE OF COWL OR TO
LOOSEN AND REMOVE COWL
VIS À OREILLES POUR
RÉGLER L’ANGLE DU
CAPOT OU POUR
DESSERRER ET ENLEVER
SHOWN WITH OPTIONAL
COWL REMOVED
ILLUSTRATION SANS
LE CAPOT
WIRE LEAD
CONDUCTEUR DE FIL
WIRE LEAD
CONDUCTEUR DE FIL
