Caractéristiques
techniques

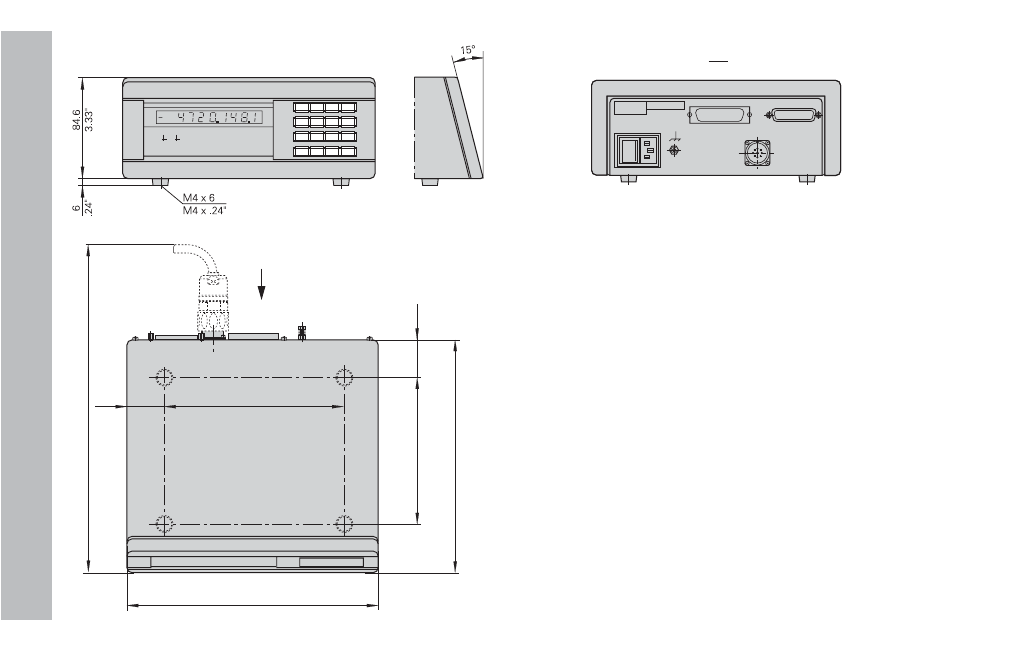

ND 282 B: Dimensions en mm/pouces
X
35 1.43"
172 ± 0.2
6.77" ± .008"
33.5
1.37"
224 8.82"
140 ± 0.2
5.51" ± .0
08"
239
9.41"
325 12.8"
REF 1 SET START PRINT 2 inch
< = > MIN ACTL MAX DIFF
X
X1
X33 X41
