Greenheck SP-110L-VG and SP-80L-VG Lighted Multi-Speed Ceiling Exhaust Fan (IOM) - Manuel

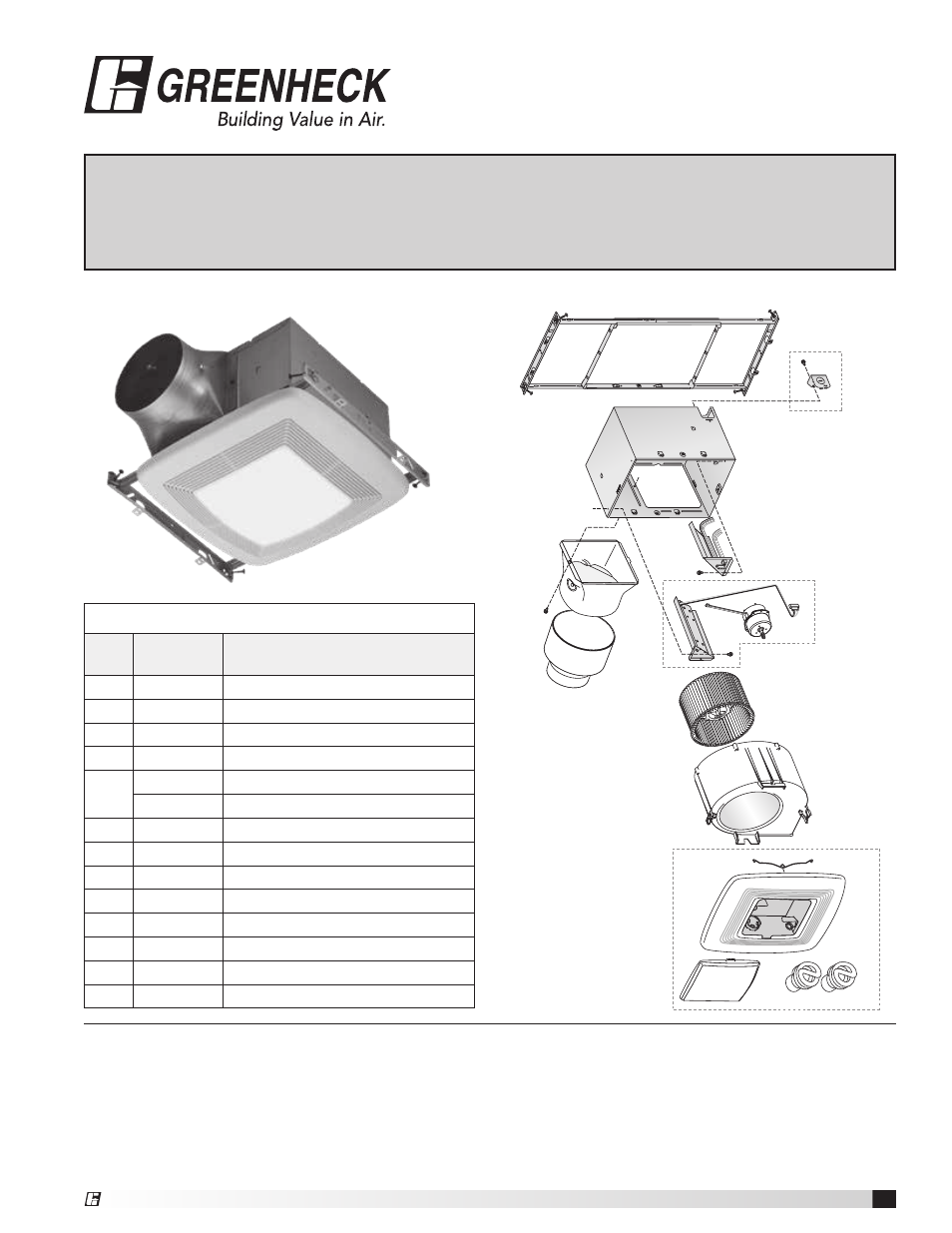

Service Parts
Key
No.
Greenheck
Part No.
Description
1 435100 Mounting Frame
2 435101 Knockout Plate & Screws
3 435102 Housing
4 435103 Wiring Panel/Harness Assembly
5
434112 Control Assembly & Motor (SP80L)
435113 Control Assembly & Motor (SP110L)
6 435106 Duct Connector - 6"
7 435114 6" to 4" Reducer (model SP80L only)
8 435108 Blower Wheel
9 435115 Scroll Assembly
10 435117 Grille Assembly (includes 11, 12, 13)
11 435111 Grille Spring (2 req’d)
12 435118 Lens
13 435119 Bulb, GU24 18W 3500K FL (2 req’d)
Table of Contents
Warnings and Cautions ............................................ 2
Typical Installation .................................................... 2
New Construction Installation .................................. 3
Retrofit Installation ................................................... 7
Easy installation in both new construction and retrofit. Model SP110L / SP80L
Operation ................................................................ 11
Cleaning and Maintenance ..................................... 12
Troubleshooting ...................................................... 12
Our Commitment .................................................... 12
5
10
12
1
3
6
7
4
8
9
11
13
2
Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property damage!
1 SP Ceiling Exhaust Fans
Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property damage!
®
®
Document 99045144B
Model SP110L/SP80L
Lighted Multi-Speed
Ceiling Exhaust Fan
