Retrofit installation – Greenheck SP-110-VG and SP-80-VG Multi-Speed (IOM) Manuel d'utilisation
Page 10
2
1
4
5
6
3
LINE
IN
GRD
GRD
WHT
BLK
BLK
BLK
RED
WHT
WHT
RED
MASTER
ON/OFF
SWITCH
MASTER
ON/OFF
SWITCH*
MODE
SELECT
SWITCH
MODE
SELECT
SWITCH*
FAN
UNIT
SWITCH BOX
KNOCKOUT
PLATE
RECEPTACLE
120 VAC
LINE IN
SWITCH BOX
BLACK
WHITE
RED
GROUND (green or bare)
* purchase separately
Retrofit Installation

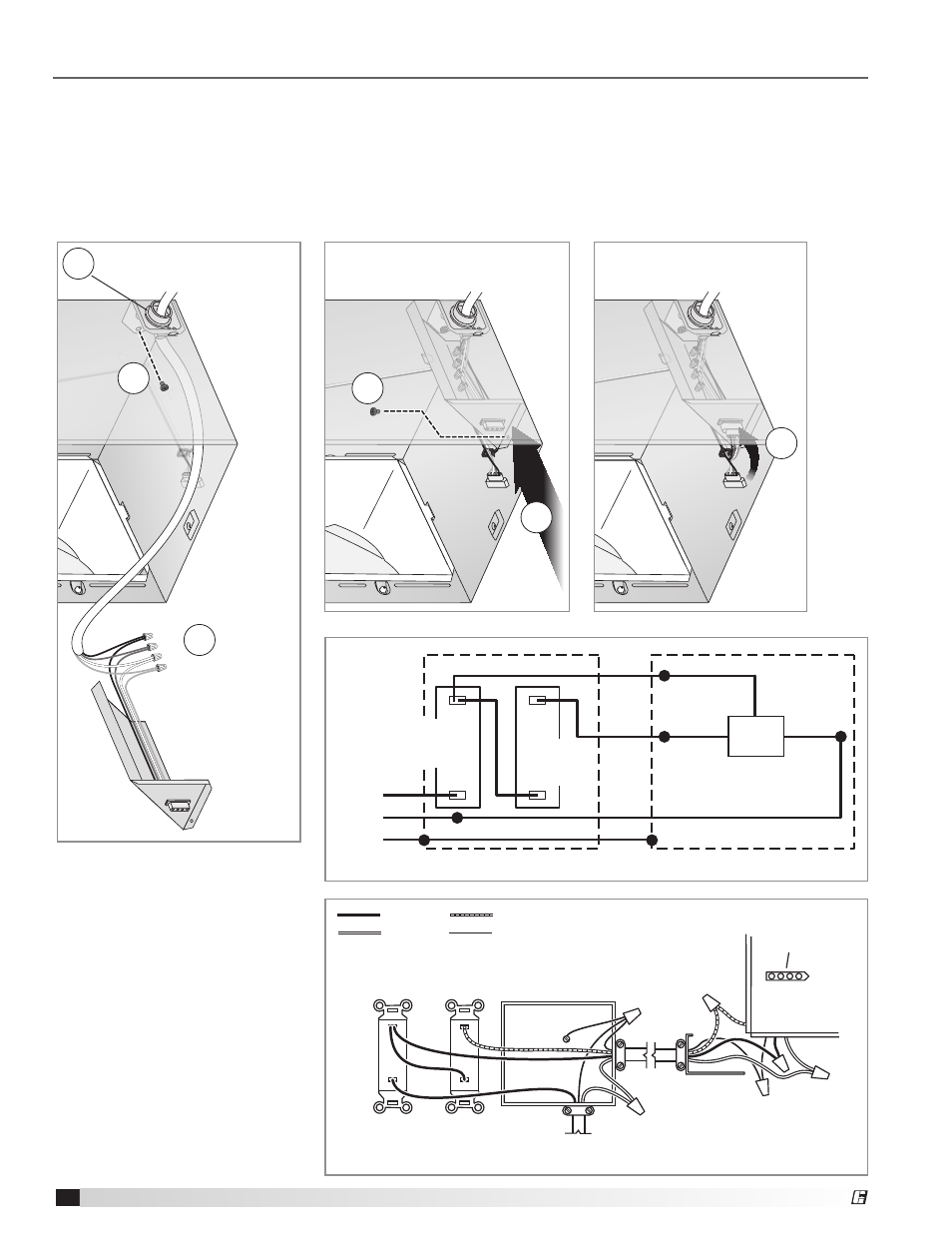

11 - Install Knockout Plate, Connect
Wires and Install Wiring Panel
Screw from
Parts Bag
Attach cable clamp to Knockout
Plate. Knockout Plate mounts to
inside of Housing and may be
oriented as
desired.
Connect
wires
Screw set
aside in
Step 6
• Use proper UL-approved connectors to secure wiring
to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
LINE
IN
GRD
GRD
WHT
BLK
BLK
BLK (Adjustable Level)
RED
WHT
WHT
RED
(Rated
Level)
MASTER
ON/OFF
SWITCH
MODE
SELECT
SWITCH
FAN
UNIT
SWITCH BOX
10
SP Ceiling Exhaust Fans
®
