5 — English © 2010 Baja, Inc. All Rights Reserved.

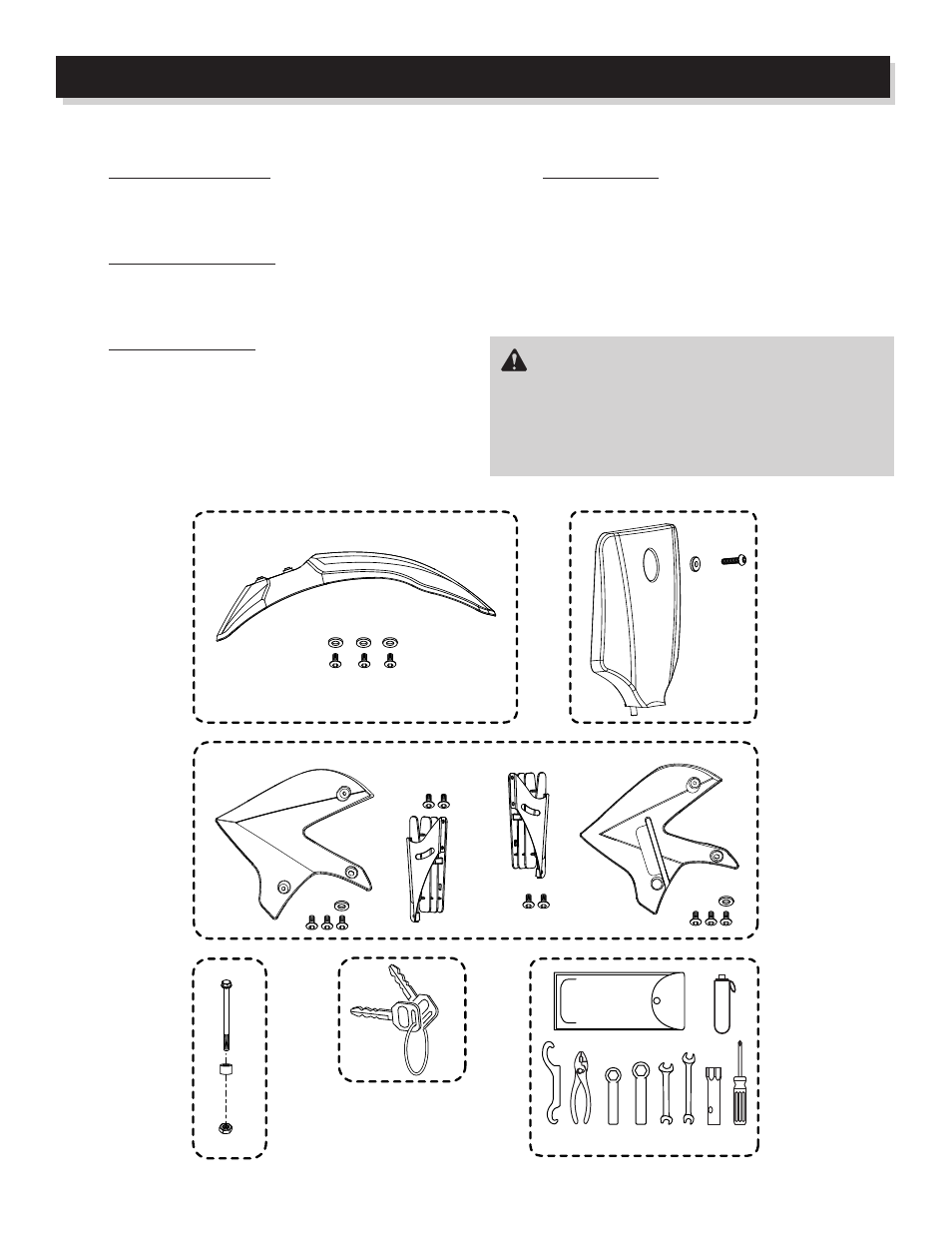

LOOSE PARTS LIST
Key
No. Description Qty.
1 Front Fender Hardware
Front Fender .................................................... 1
Washer ............................................................ 3
Bolt (M6 x 15 mm) ........................................... 3
2 Number Plate Hardware
Number Plate ................................................... 1
Bolt (M6 x 25 mm) ........................................... 1
Washer ............................................................ 1
3
Side Panel Hardware
Side Panel ....................................................... 2
Screw (M5 x 15 mm) ..................................... 10
Washer ............................................................ 2
Air Vent ............................................................ 2
Key
No. Description Qty.
4 Wheel Hardware
Axle Bolt (M10 x 210 mm) ............................... 1
Spacer ............................................................. 1
Nut (M10 x 1.5) ................................................ 1
5 Keys ..................................................................... 2
6 Tool Kit ................................................................. 1
Assembly Guide (Not Shown) .............................. 1
Operator’s Manual (Not Shown) ........................... 1
WARNING:
If any parts are damaged or missing do not assemble
this product until the parts are replaced with new original
manufacturer’s parts or their equivalent. Assembly of this
product with damaged, missing, or incorrect parts could
result in serious personal injury.
1. 2.
6.
3.
5.
7.
