17

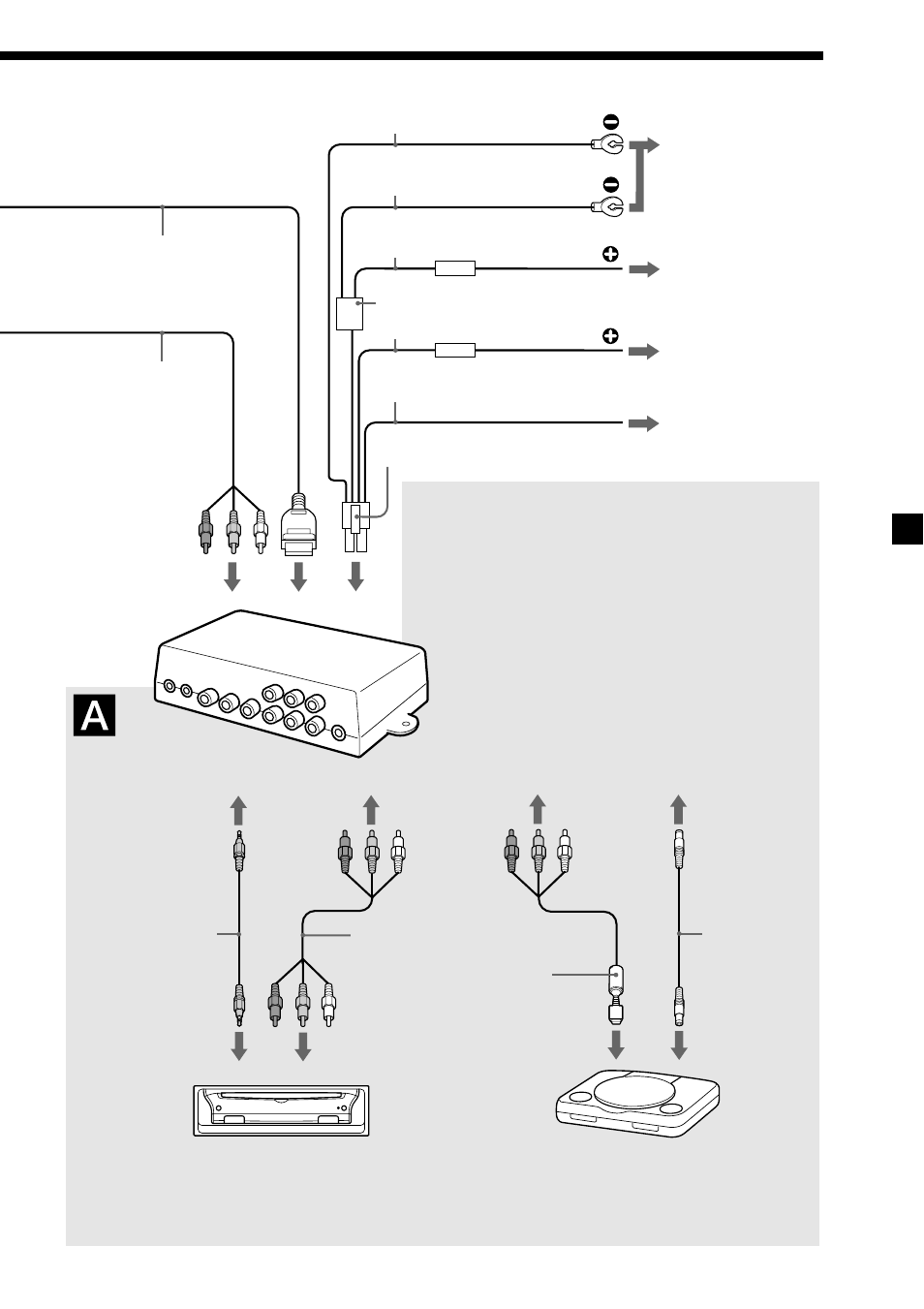

Monitor cable
(5 m)
Connection box
XA-113
DC-DC cord
(3 m)
PS one™ (optional)
To 7.5 V DC Output To Audio L/R/Video Input
Remote
Commander
Signal receiver
cord (5m)
(Stereo Mini jack)
RCA pin cord
(optional)
To Remote Signal
(IR) Output
RCA pin cord
(optional)
Sony mobile DVD player DVX-11A (optional)
Precautions on PS one™
• Be sure to fasten PS one™ in a safe
place securely.
• For your safety, do not use PS one™
while driving your car.
• Make sure that the operating voltage
of PS one™ is 7.5 V. Other voltages may
cause malfunction, or damage PS one™.
* “PS one” is a trademark of Sony Computer Entertainment Inc.
GND (1 m)
Back-up (5 m)
To a metal surface
of the car chassis
To car battery
(12 V)
To ignition switch
(ACC position)
4 Pin Power connector
ACC (5 m)
Fuse (8 A)
Fuse (1 A)
Red
Yellow
Black
GND (1 m)
POWER REM (5 m)
Blue/White striped
Max. supply current 0.3 A
To a power
amplifier
Black
Filter box
AV Cable
(integrated
audio/video)
(optional)
