Installation Procedure
en-us
Electrical Installation
Electrical requirements
You can find the identification plate with the electrical
specifications on the underside of the appliance. The
junction box must be located within 3
feet of the cooktop
connection. It should be easily accessible for service
purposes.
Power supply
Connect Electrical Supply
9
CAUTION
Before installing, turn off power supply at the
service panel. Lock service panel to prevent power
from being turned on accidentally.
9
CAUTION
To reduce the risk of electric shock and fire, do not
use a flexible power supply cord.
Refer to rating label for more information. See "Customer
Service" for rating label location.
The maximum current rating of the branch-circuit breaker,
the wire sizes and the connections must conform to the
requirements of the National Electrical Code or Canadian
Electrical Code and all local codes and ordinances.

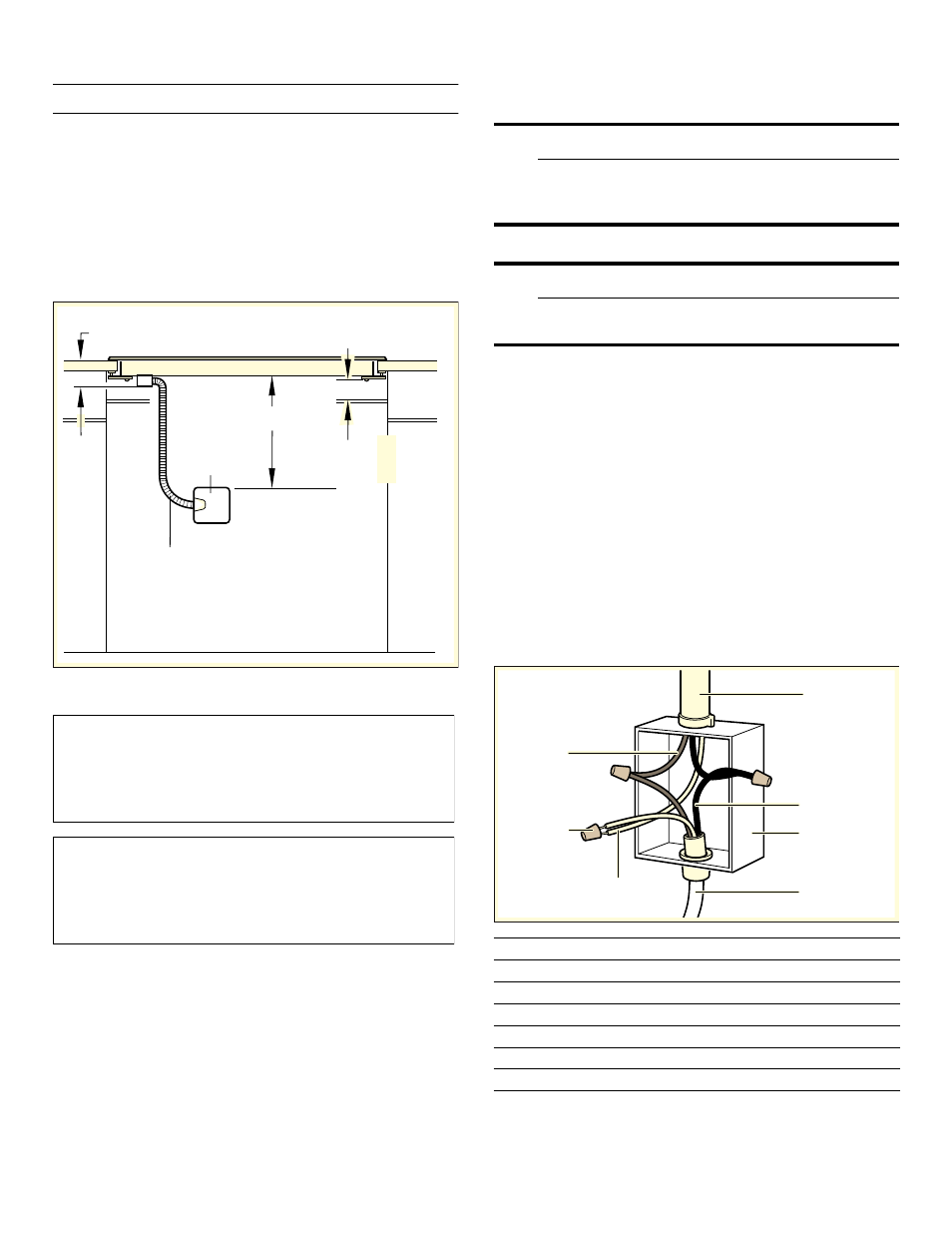

Attach flexible conduit to the junction box. Connect the
lead wires to the junction box supply wires in proper
phase:
▯ black (L1) to black
▯ red (L2) to red
▯ green or bare to ground
If the cooktop is installed and connected as specified
above, it will be grounded in compliance with the
National Electrical Code.
DSSUR[PP
&RQQHFWLRQ
Å-´%R[
PD[PP)LWWLQJ&RQGXLWPP
&RQGXLWDSSUR[IWaPP
PLQPP
DLUFOHDUDQFH
&,PRGHOV
$PSFLUFXLWEUHDNHU
9ROWV:LUH+]
9ROWV:LUH+]
$OOZLWKPIOH[LEOHFRQGXLWLQFOXGHG
&,PRGHOV
$PSFLUFXLWEUHDNHU
9ROWV:LUH+]
9ROWV:LUH+]
$OOZLWKPIOH[LEOHFRQGXLWLQFOXGHG
1 House power supply cord
2 Black wire
3 Junction box
4 Cooktop power supply cord
5 Grounded green or bare cable
6 Certified UL connector
7 Red wire
