Installation Requirements
English 18

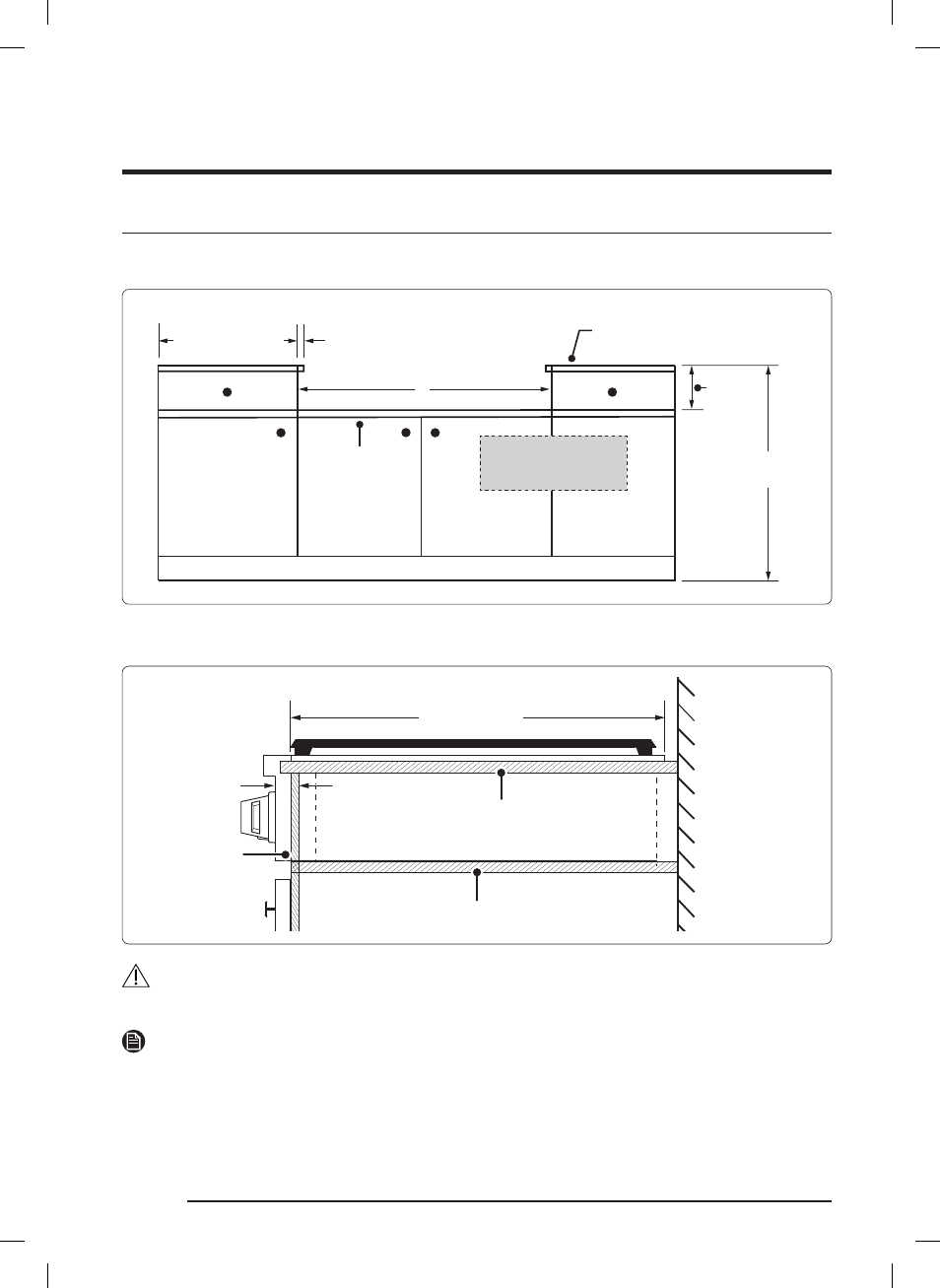

Countertop Cutout Dimensions
Cabinet/Countertop Dimensions (front view)
A
1 1/2” (3.8 cm) typical
countertop thickness
1/2” (1.3 cm)
overhang, both sides
10” (25.4 cm) to
combustible side
wall min. both sides
Mounting platform
1” (2.5 cm) min.
thickness
36” (91.4 cm)
typical
7 3/4”
(19.7 cm)
Recommended gas and
electrical service location,
consult local code
Installed Rangetop (side view)
24” (61.0 cm)
Cabinet face
Countertop
Mounting platform
Installed control
panel overhang
1 3/4" (4.3cm)
CAUTION
Cutout dimensions must be observed. Any overage could be create severe problems.
NOTE
Cabinet tolerances +1/16" (+1.6 mm) -0 unless otherwise noted.
