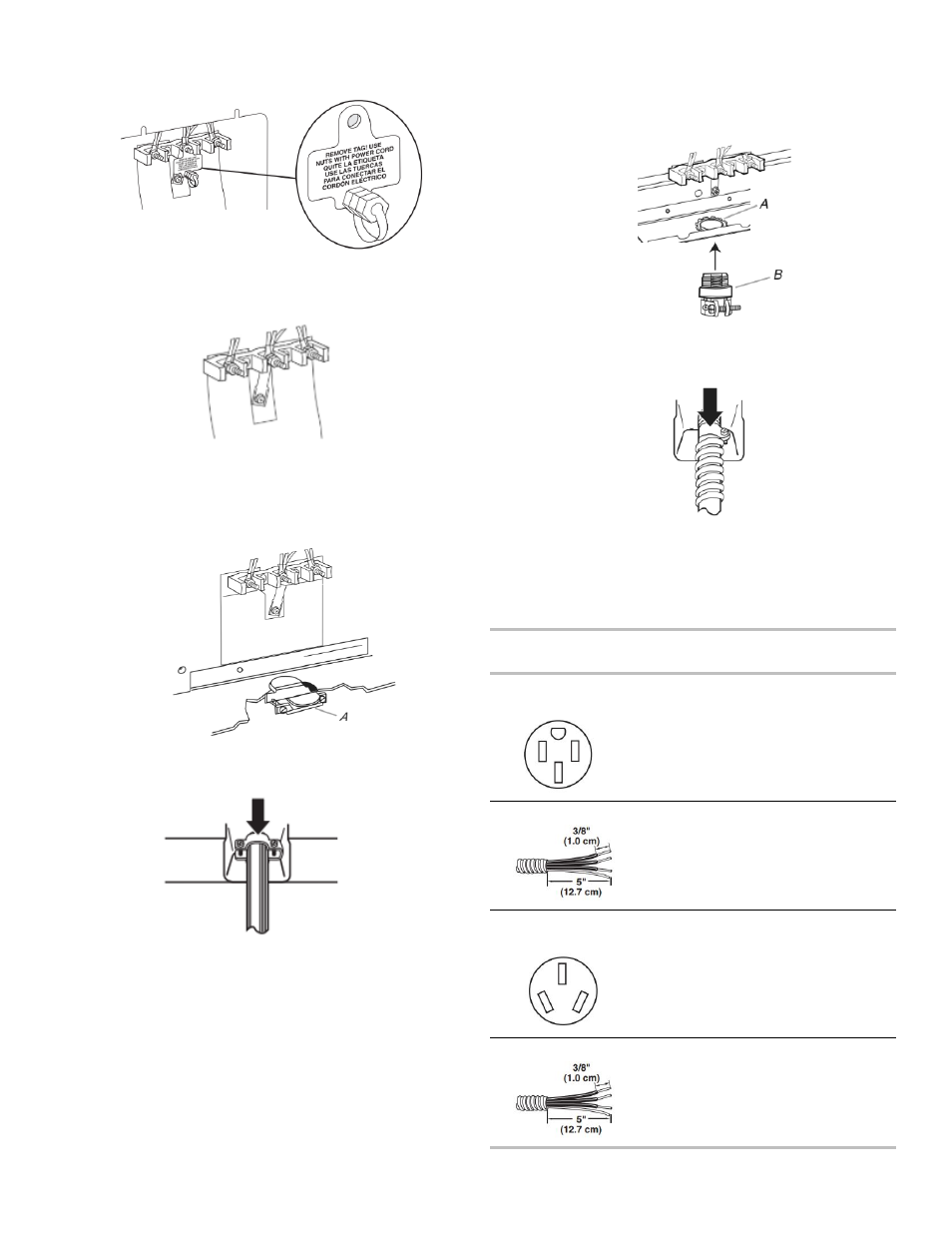

3. Depending on your model, remove plastic tag holding three
10-32 hex nuts from the middle post of the terminal block.
OR
Remove the top 10-32 hex nut from each of the 3 terminal
blocks and set aside.
4. Add strain relief.
Style 1: Power supply cord strain relief
� Remove the knockout for the power supply cord.
� Assemble a UL listed strain relief in the opening.
A. UL listed strain relief
� Tighten strain relief screw against the power supply cord.
Style 2: Direct wire strain relief
� Remove the knockout as needed for the flexible conduit
connection.
� Assemble a UL listed conduit connector in the opening.
A. Removable retaining nut
B. Conduit
� Tighten strain relief screw against the flexible conduit.
5. Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
Electrical Connection Options
If your home has:
And you will be
connecting to:
Go to Section:
4-wire receptacle
(NEMA type 14-50R) A UL Listed, 250 V
minimum, 40 A,
range power
supply cord 4-wire connection:
Power supply cord
4-wire direct A circuit breaker
box or fused
disconnect 4-wire connection:
Direct wire
3-wire receptacle
(NEMA type 10-50R A UL Listed, 250 V
minimum, 40 A,
range power
supply cord 3-wire connection:
Power supply cord
3-wire direct A circuit breaker
box or fused
disconnect 3-wire connection:
Direct wire
