4 EN
INSTALLATION (CONTINUED)

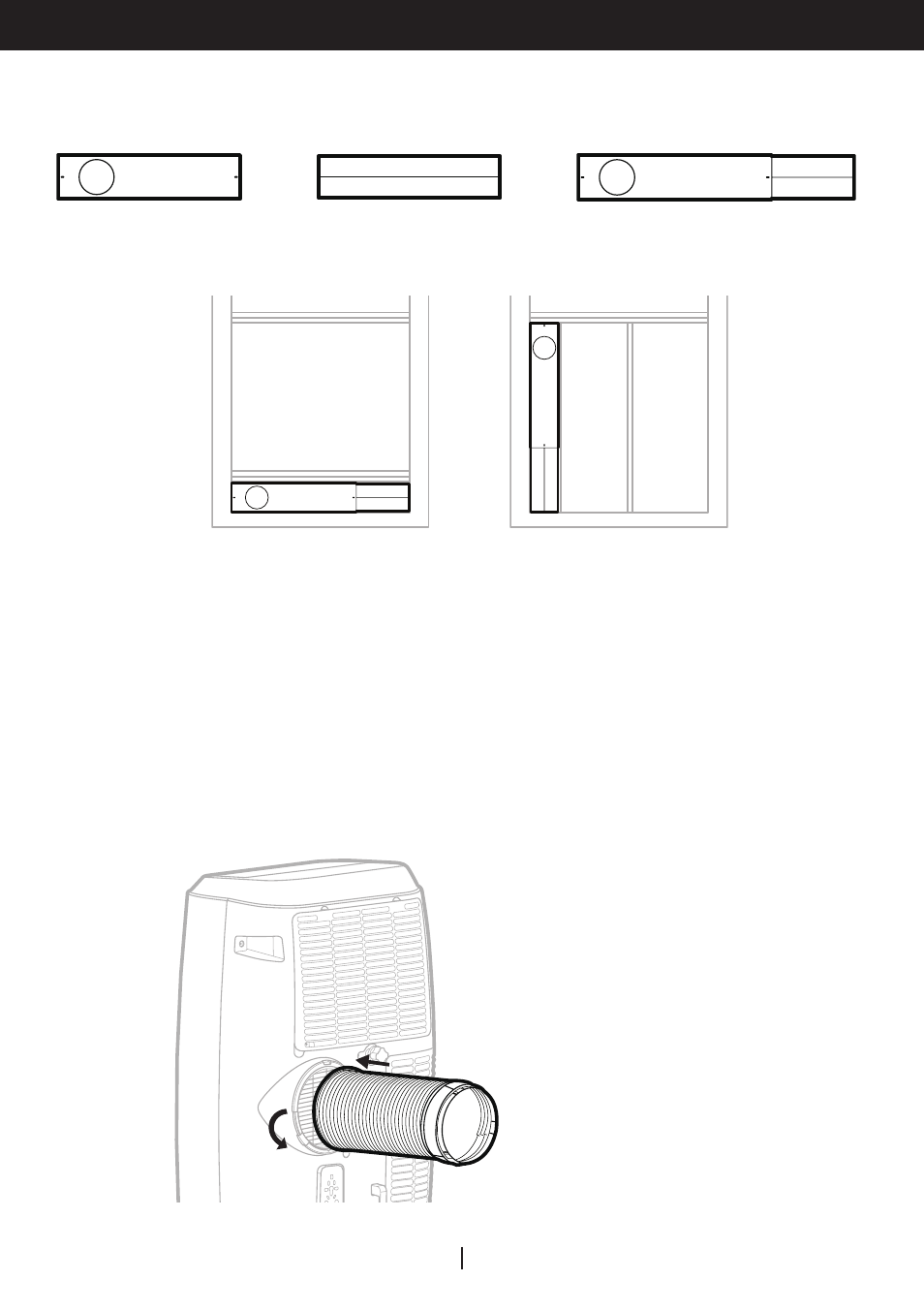

2. Connect the hose to the rear exhaust outlet on the back of the unit. Slide-in the hose connector
then rotate clockwise until it is locked in place.
Note: After setting the window bracket to the size of your window, please remove it from the window
and follow the instructions below.
Hose:
Dia.5.9'' (15cm)
Length: 9.8'' to 59'' (25cm to 150cm)
Window Bracket Kit:
This window kit is designed to fit most standard sliding windows. If your window is outside of the
size parameters as outlined above, the window bracket can be cut shorter to fit by bringing it to a
nearby hardware store.
Horizontal Sliding Window Vertical Sliding Window
Part B:
Min. Length 19.9” (50.5cm)
+ =
Part A:
Min. Length 19.9” (50.5cm)
Part A + B:
Min. Length 28.9” (73.3cm)
Max.Length 38.2” (97.0cm)
