DETAILED PLANNING DIMENSIONS

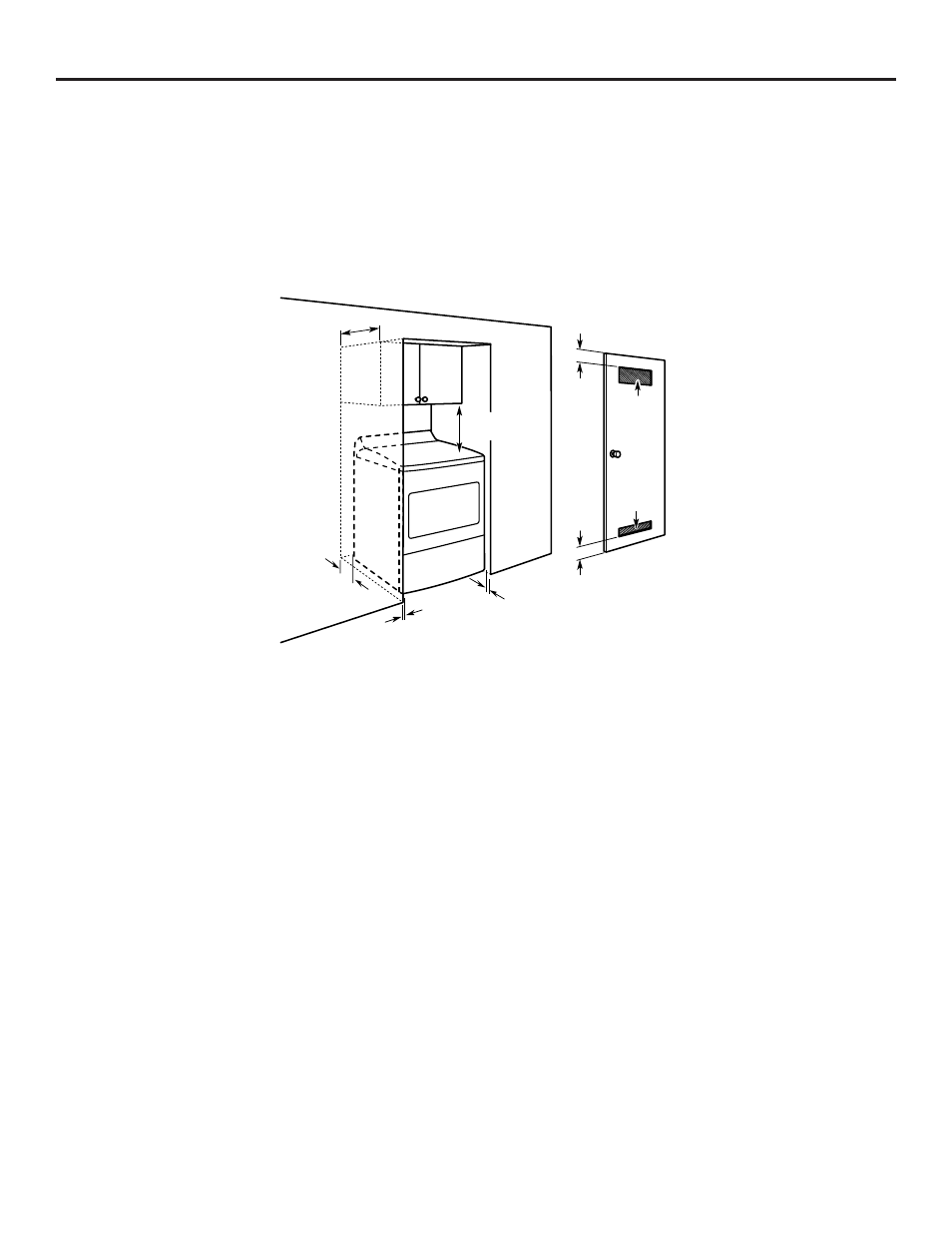

Spacing for recessed area or closet installation
The dimensions shown are for the recommended spacing allowed.
Ƀ
Additional spacing should be considered for ease of installation and servicing.
Ƀ Additional clearances might be required for wall, door, and floor moldings.
Ƀ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise transfer.
Ƀ For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors
with equivalent ventilations openings are acceptable.
Ƀ
Companion appliance spacing should also be considered.
6"/0"*
(152 mm/0 mm)
14" max
(356 mm)
1"/0"*
(25 mm/0 mm)
1"
(25 mm)
18"
(460 mm)
3"
(76 mm)
3"
(76 mm)
(310 cm 2 )
24 in.2
(155 cm 2 )
48 in. 2
*Recommended/Minimum spacing
