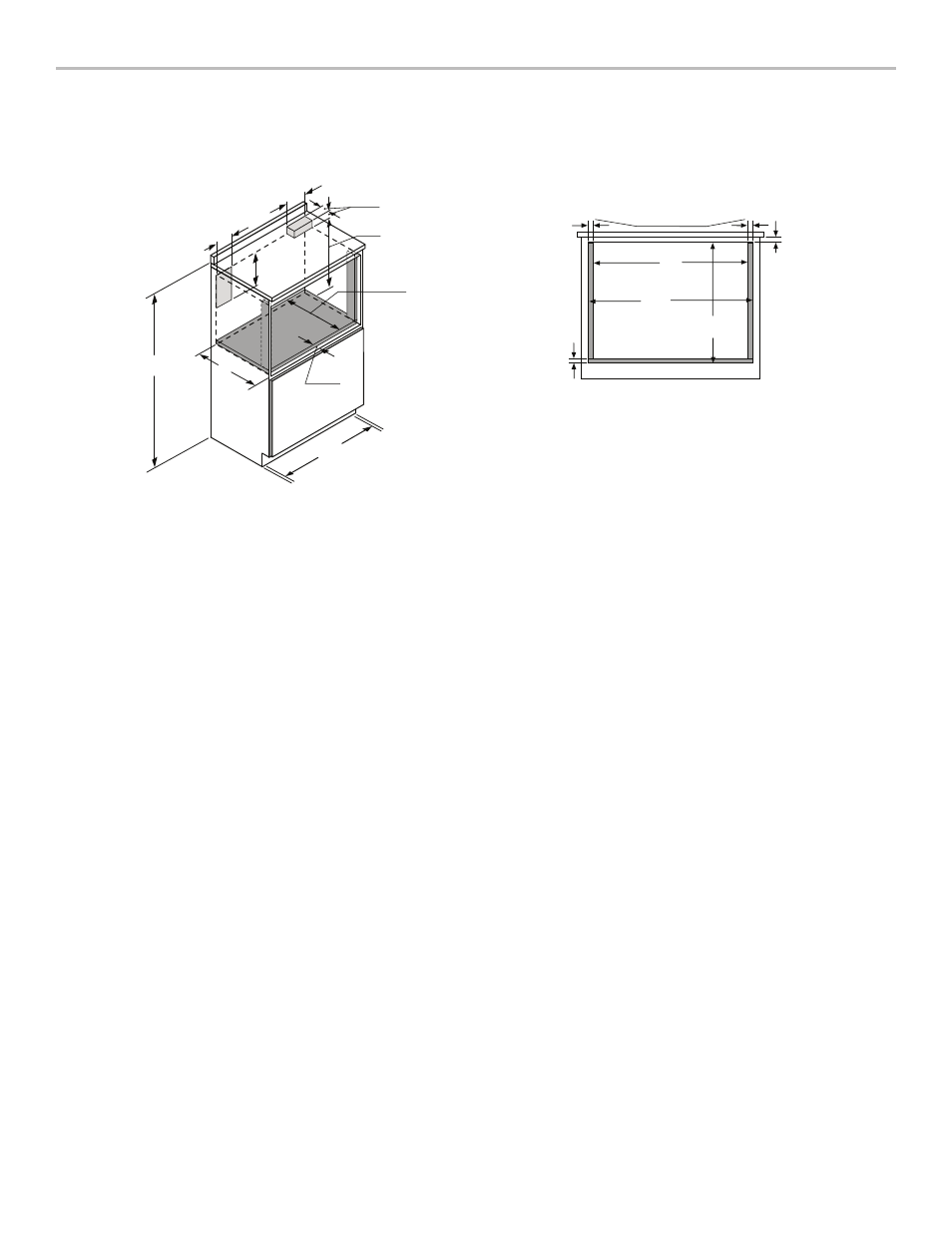

FLUSH INSTALLATION DIMENSIONS AND CLEARANCES
Figure 4
Figures 2, 3 and 4 contain many MicroDrawer ® microwave
oven measurements for reference when planning the
drawer’s location.
This MicroDrawer
® microwave oven c an be installed below
any electric or gas wall oven.
NOTICE: Always allow sufficient power cord length to the
electrical outlet to prevent tension.
Always check electrical codes for requirements.
MicroDrawer ® Microwave Oven Measurements
Frontview cut out
Cleat
* Suggested location of electrical outlet
** Anti-Tip Block
*** Base should support up to 100 lbs
**** Sides should be finished and extend back to cleat.
Cleats should also be finished, as they may be
visible after installation.
(Cleats are not included with unit.)
*
**
****
A
B
C
D ***
E
G
H
I
J
P P
M
K
L
O
N
F
A. MD24WS (24") 27" (686 mm)
MD30WS (30") 30 516" (770 mm)
B. 36" (914 mm)
C. 23 1/2" (597 mm)
D. 21 7/8" (555 mm) base min. depth
E. 4" (102 mm)
F. 6" (152 mm)
G. 5" (127 mm)
H. 3 1/2" (89 mm)
I. 14 5/8" (371 mm)
J. 1 5/8" (41 mm)
K. MD24WS (24") 22 1/8" (562 mm)
MD30WS (30") 28 1/4" (718 mm)
L. MD24WS (24") 24 3/16" (614 mm)
MD30WS (30") 30 5/16" (770 mm)
M. 16 5/8" (422 mm) cutout
N. 1/2" (13 mm) visible area
O. 1/4" (6 mm) base thickness
P. 1" (25 mm)
