Roborock Dyad - Manuel (Page 17)

17
Routine Maintenance

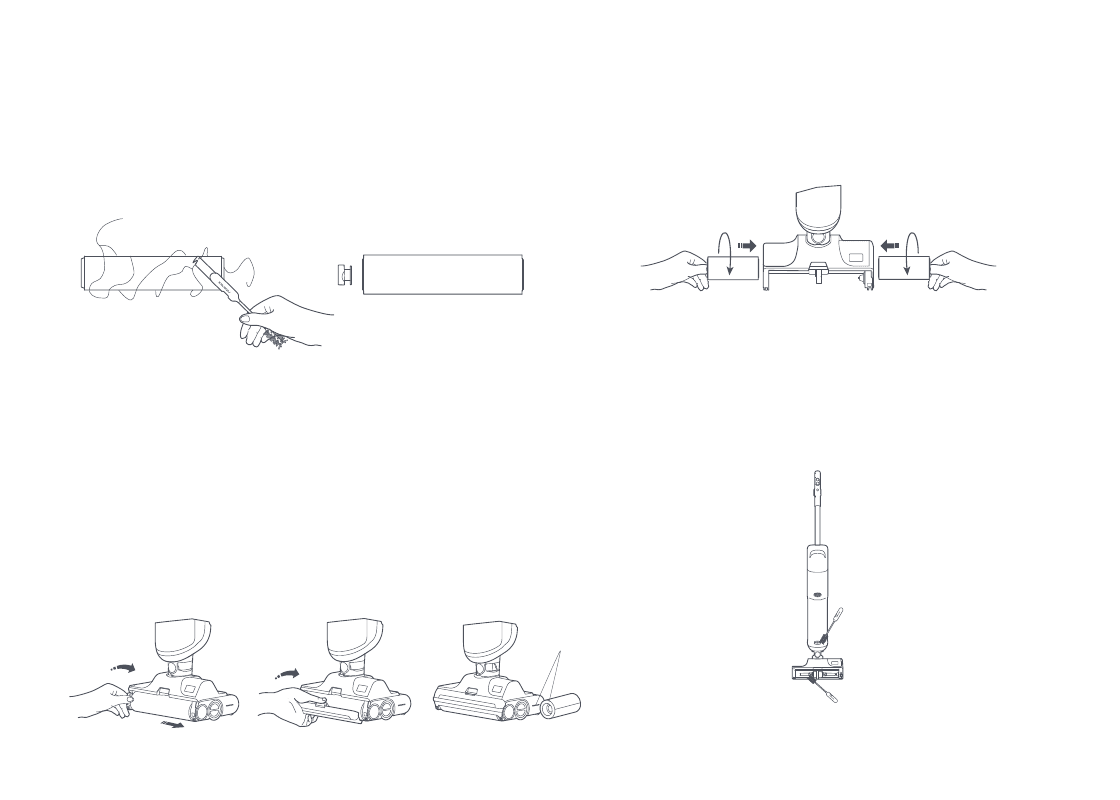

5. Cut away any entangled hair and remove any embedded debris
using the provided maintenance brush.
6. Pull off the roller's side cap, remove any entangled hair, and put
it back in place.
Reinstalling the Rollers
1. To reinstall the front roller, line up the right side with the roller
shaft, then push the left side into its slot.
2. To reinstall the splash guard, insert the hooks at either side of
the guard into the corresponding holes on the head, then press
the splash guard until it clicks in place.
3. To install the rear rollers, place the left and right rollers, marked
red and blue respectively, on the correct sides of the head.
Same color
4. Pinch the left and right rear rollers with both hands and align
them with the rear roller shaft. Rotate the rollers as shown
while pushing inward to install.
Cleaning the Head and Dirty Water Hose
* Clean weekly.
1. Flip out the stand and place the vacuum securely. Remove the dirty
tank and all the rollers.
2. Clean the roller brush slot and the dirty water pipe with the maintenance
brush provided.
3. Reinstall the rollers and the dirty tank.
Note: Do not wash the cleaning head directly with water.
