1. Remove the top hinge cover by using a flathead screwdriver. Place
the head under the front edge of the cap and gently lift.
2. Loosen the top hinge screws using a Phillips head screw driver.
3. Adjust the door or put a spacer in between and tighten the screws.
4. Replace the top hinge cover by aligning the rear of the cover with
the rear of the hinge. Press firmly on the front of the cover until it
snaps in place.
Door Alignment

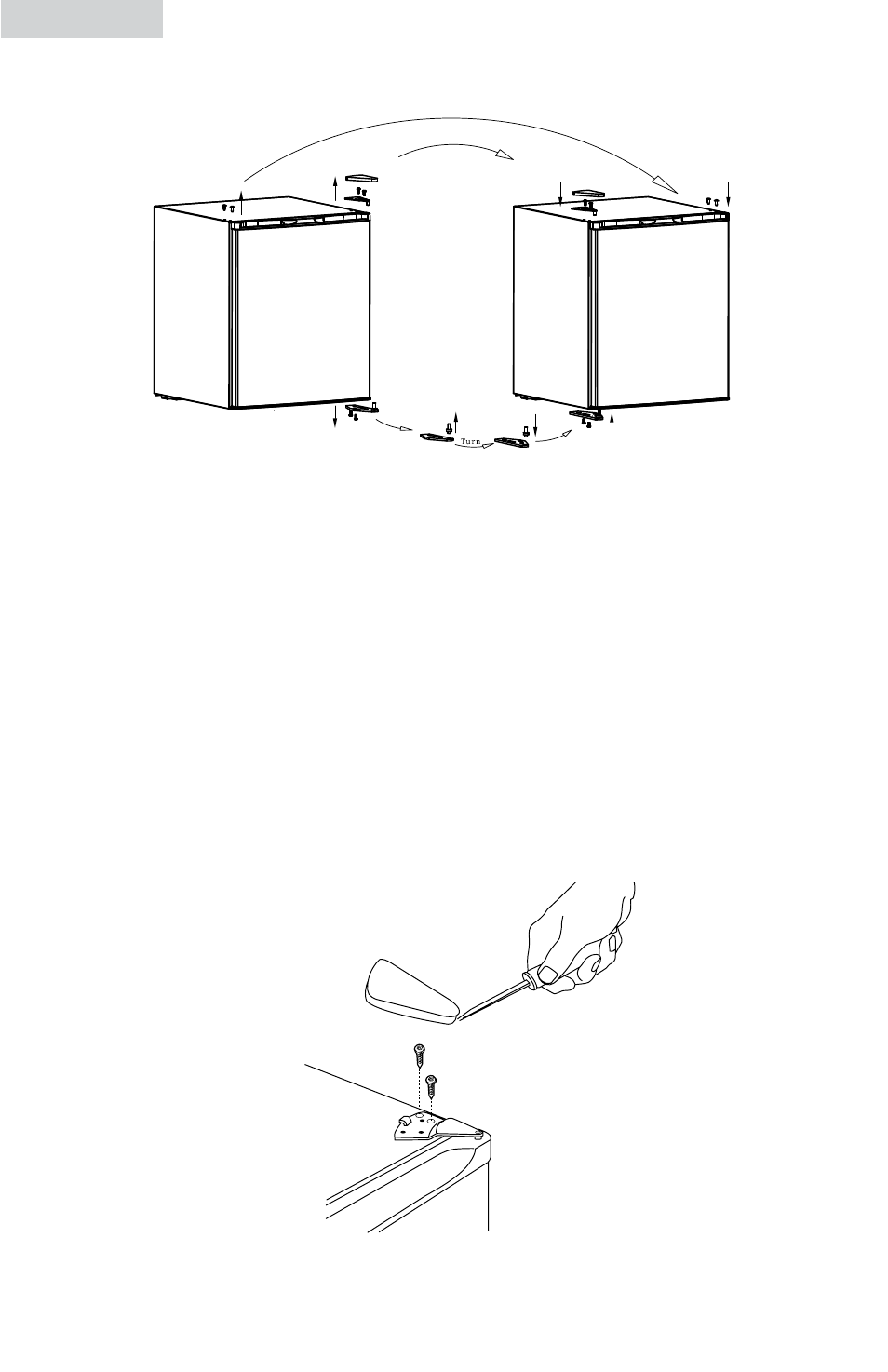

(see fig. #1)
fig. 1
NOTE: As the door gets pressed in during shipping, after reversing
the door, the gasket may have to be reset. This is done to
prevent the cool refrigerated air from escaping. If there is a
gap between the door gasket and the cabinet, set the gasket by
gently pulling it out to seal the gap.
