This is the back panel LED TV
■ This is a simplified representation of a back panel.
Here shown may be somewhat different from your TV.
8
INSTRUCTION
CONTROLS
This manual explains the features available on the model of LED TV.
■

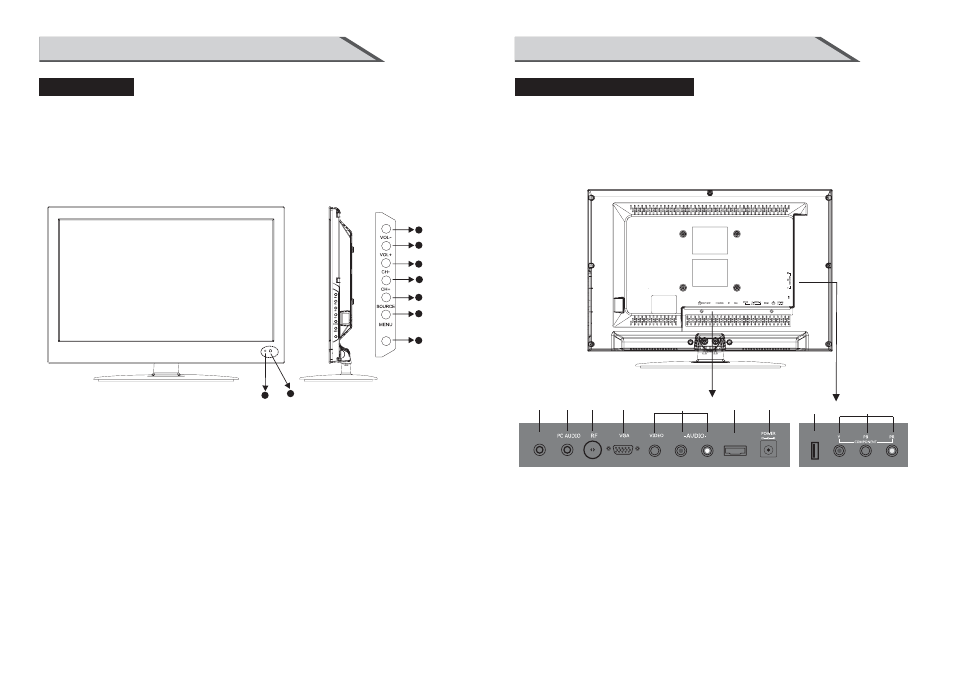

This is a simplified representation of a front panel. Here shown may be somewhat
different from your TV.
(1): (VOL-) Press Volume- to decrease the volume.
(2): (VOL+) Press Volume+ to increase the volume.
(3): (CH-) Press the button to down the channel.
(4): (CH+) Press the button to up the channel.
(5): (SOURCE) Press this button to select AV source or TV source.
(6): (MENU) Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the menu.
(7): (POWER) Press this button to standby mode.
(8): Indicator.
(9): Remote control sensor window.
Right Side Panel Control
Rear Connection Panel
(07) (POWER) DC IN : Connect the power cord with DC12V to this input.
(08) USB:Input USB device input
(06) HDMI Input: Connect HDMI signal.
(09) YPBPR(Y:GREEN, PB:BLUE, PR:RED): Connect the component image output
of your AV devices here. Then Connect audio output of your AV devices to R and L.
(05)AV Video Input:Connect composite video output of your AV device and Connect the
audio output of your AV devices to R and L.
(04) PC VGA Input: Connect PC VGA signal output.
(03) RF: Antenna Input (75 ohm).
(02) PC AUDIO Input: Connect PC audio input.
(01) EARPHONE output: Connect to headphone output.
2 3 4 1
EARPHONE
5
HDMI L R
6 7
USB
9 8
2
1
3
6
4
7
9 8
5
POWER POWER
