1.435.647.9555 | 800.647.TUBE | www.soundtube.com
11. Done!
5. Tighten screw on terminal
plate, and push conduit
connector into knockout.
10. Press grille into place. 8. Once all painting and finish
work is completed, remove
the paint mask.
7. Insert speaker into
mounting hole with
installation aid in place.
Screw down both bolts on
the baffle face to actuate
the mounting wings. Firmly
secure both bolts – do not
over-tighten. 6. If required, a sheet-metal
tab located on the rear
panel of the speaker serves
as a secondary point of
attachment (cable not
included).
3. Use Rotozip or other tool
to cut hole.
Hole Diameters
CM42-EZs-II
165.1 mm (6.50 in)
All other CMEZ, FS and BGM models
266.7 mm (10.50 in)
1.
2.
9. Attach grille safety clip by
placing the large end of the
clip over snap-fit post (1),
then sliding clip until small
end snaps into place around
post (2).
4. Run signal wires through
conduit, terminate with
RJ45 connector, then plug
into speaker. If local power
is required at speaker
(non-POE installation),
connect appropriate DC
power supply to barrel
connector on speaker input
panel. Contact SoundTube
for questions about
installations requiring local
power.
2. Nail or screw bracket to
joists. Secure conduit/signal
wire away from hole in
bracket. Once installed,
complete finish work.

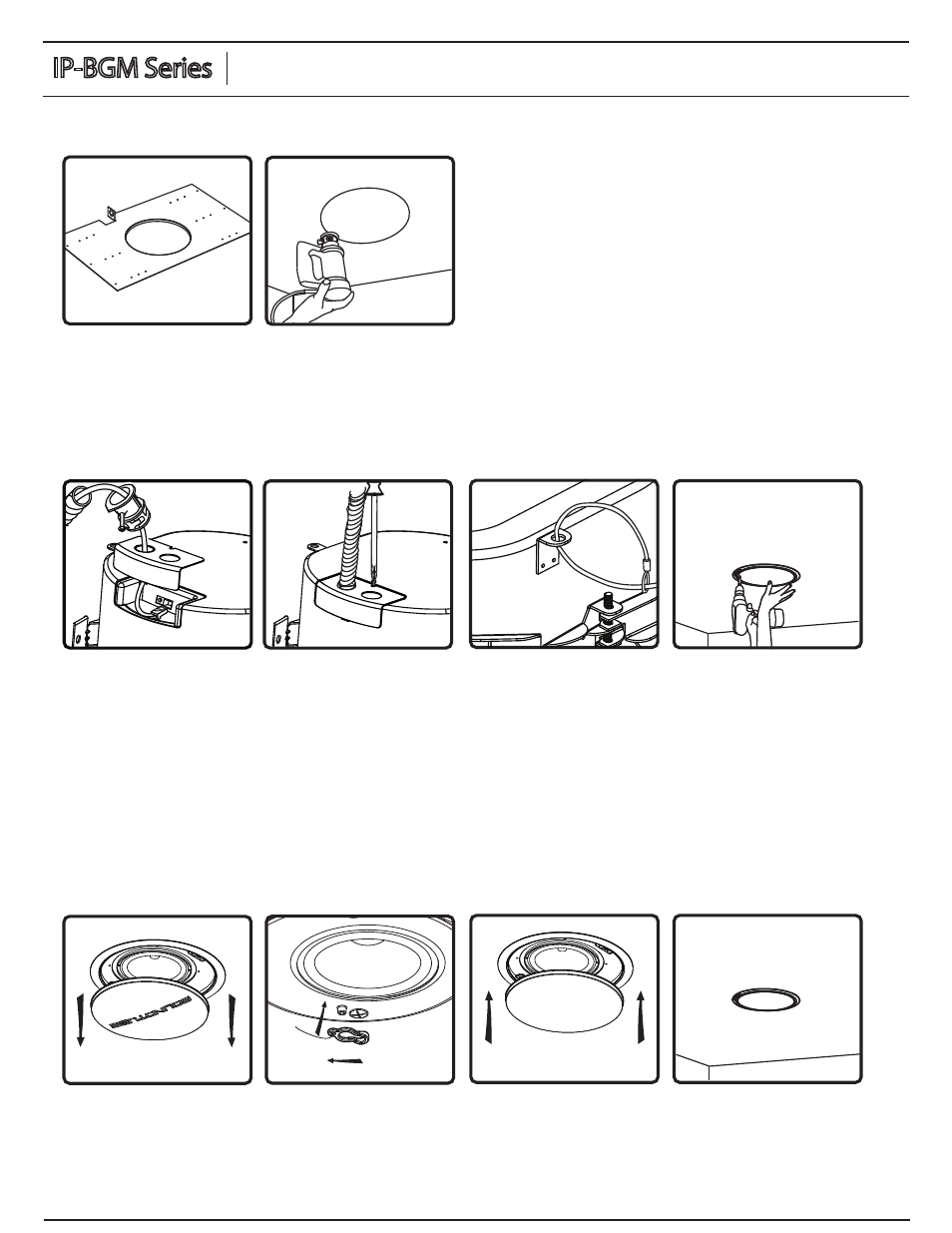

Install Instructions For:
IP-CM52s-BGM, IP-CM52-BGM, IP-CM62-BGM, and IP-CM82-BGM
IP-BGM Series IP-BGM Series
Ceiling preparation - For all other ceiling types
