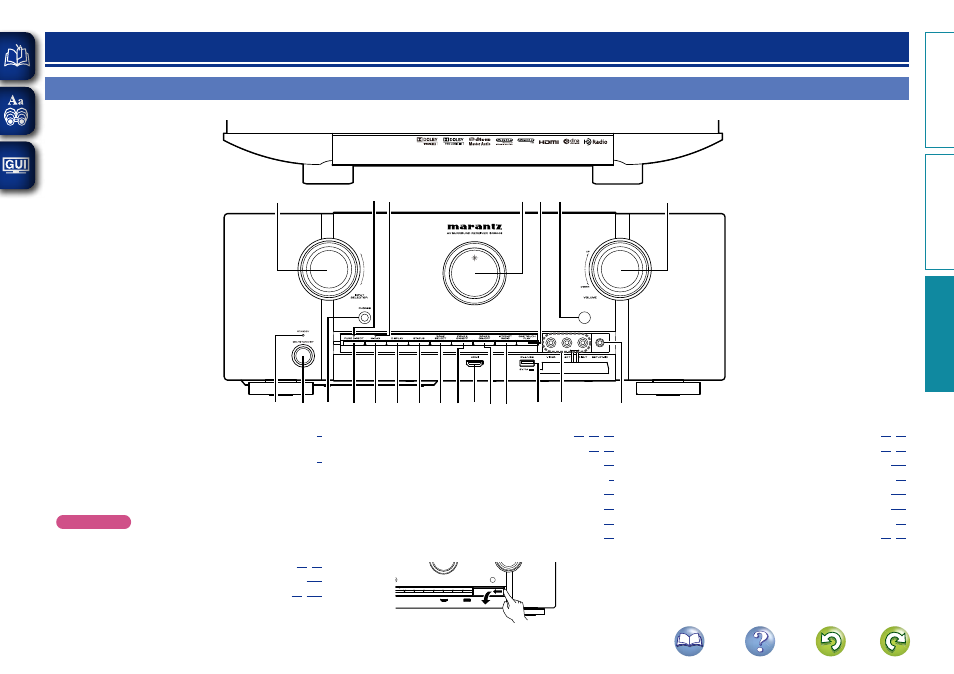

Panneau avant
Pour les touches qui ne sont pas décrites ici, lire la page indiquée entre parenthèses ( ).
r t y u i o
Q1 Q2
Q8
Q0
Q3 Q4
w
q
e
Q5
Q6
Q7
Q9
W0
W1
W2
Nomenclature et fonctions
q
Témoin d’alimentation (STANDBY) ································· (
C
5
)
w
Touche d’alimentation
(ON/STANDBY) ································································· (
C
5
)
Permet de mettre cet appareil sous tension et hors tension (veille).
e
Prise de casque audio (PHONES)
Si un casque est branché sur cette prise, le signal audio n’est plus
transmis par les enceintes connectées ni par les bornes PRE OUT.
REMARQUE
Afin d’éviter toute perte auditive, ne pas augmenter excessivement
le niveau du volume lors de l’utilisation du casque.
r
Touche PURE DIRECT ······················································· (
t
Touche M-DAX ······································································ (
y
Touche DISPLAY ······························································ (
Q5
Prise SETUP MIC ······························································· (
)
Q6
Molette de contrôle MASTER VOLUME ·························· (
)
Q7
Molette de contrôle ······························································ (
)
Q8
Touche ONE TOUCH PLAY ····················································· (
)
Q9
Affichage ················································································ (
)
W0
Témoin M-DAX ······································································ (
)
W1
Témoin PURE DIRECT ····························································· (
)
W2
Molette INPUT SELECTOR ··············································· (
)
u
Touche STATUS ·························································· (
)
i
Touche ZONE SELECT ······················································ (
)
o
Touche ZONE2 ON/OFF ·························································· (
)
Q0
Borne HDMI ················································································ (
)
Q1
Touche ZONE3 ON/OFF ·························································· (
)
Q2
Touche INTERNET RADIO (
V) ·············································· (
)
Q3
Port iPod/USB ········································································· (
)
Q4
Bornes AUX1 INPUT ······························································· (
)
Retirez le cache qui recouvre les connecteurs lorsque vous voulez
les utiliser.
