2
BOX 2
BOX 1

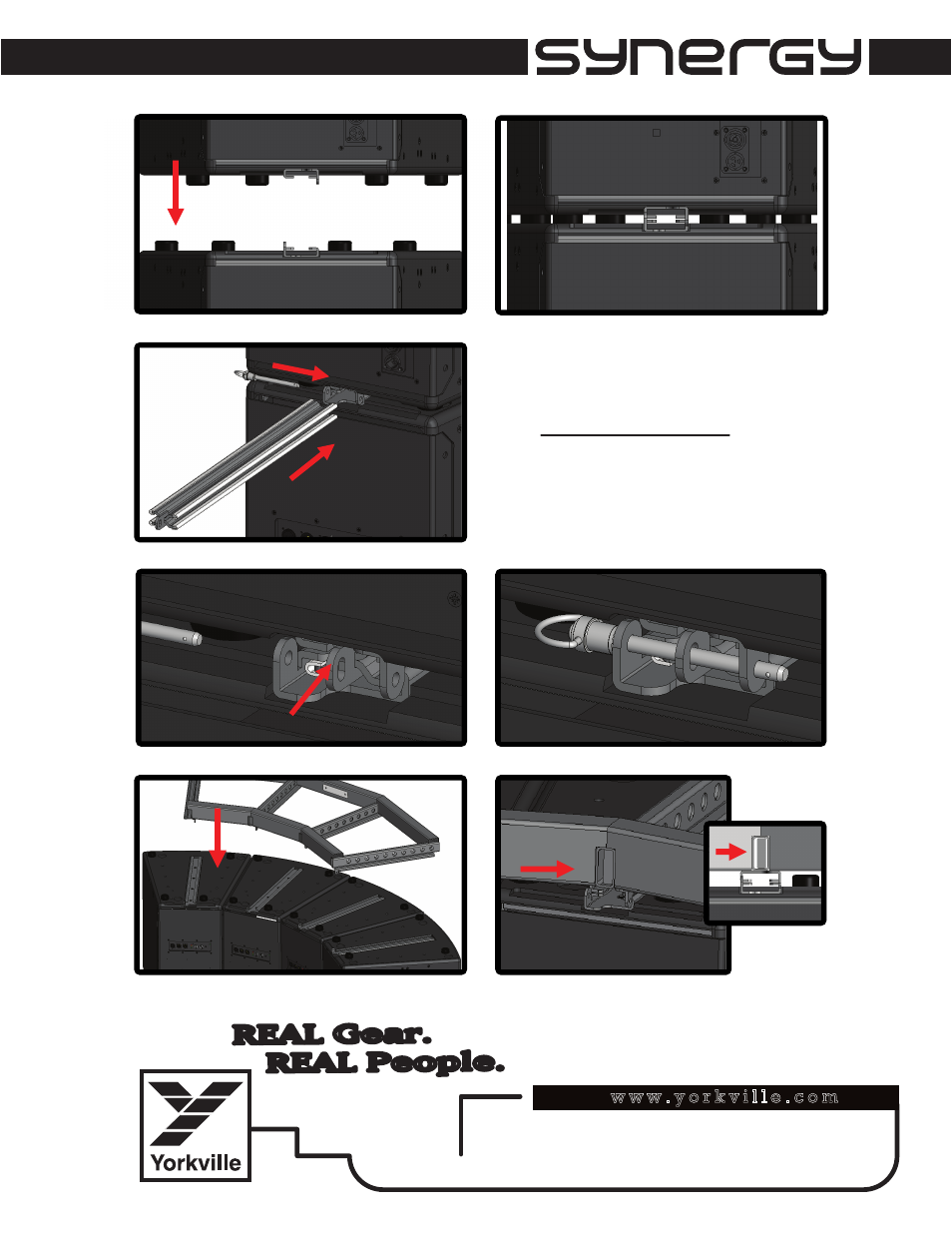

5. Insert LOCK BAR into Rails of BOX1 and 2 (Figure 6)
6. Insert PIN to secure Lock Bar (Figure 7 and 8)
7. Line up boxes as shown (Figure 9), then set up Bumper as
shown (Figure 10 and 11)
5. Insérer la BARRE DE VERROUILLAGE dans les rails des
ENCEINTES 1 et 2 (figure 6)
6. Insérer la GOUPILLE pour fixer la barre de verrouillage
(figures 7 et 8)
7. Aligner les enceintes tel qu'illustré (Figure 9), puis installer
le cadre de suspension tel qu'illustré (Figures 10 et 11)
BOX 2
BOX 1
RAIL
Figure 5
Figure 6
Figure 7 Figure 8
Figure 9 Figure 10
Figure 11
Figure 4
BOX 2
BOX 1
B U M P E R M O U N T I N G
