1. Use the included mounting template to mark
holes for the screws and camera cable.
2. Drill holes for the screws and camera cable.
Insert the optional anchors if installing in drywall.
3. Feed the camera cable through the camera base.
If you are running cables along a wall/ceiling,
make sure to pass the cable through
the cable notch.
4. Connect cables as shown in “Connecting the
camera”, pages 10-11.
5. Use a Philips screwdriver and the screws to
attach the camera base to the mounting surface.

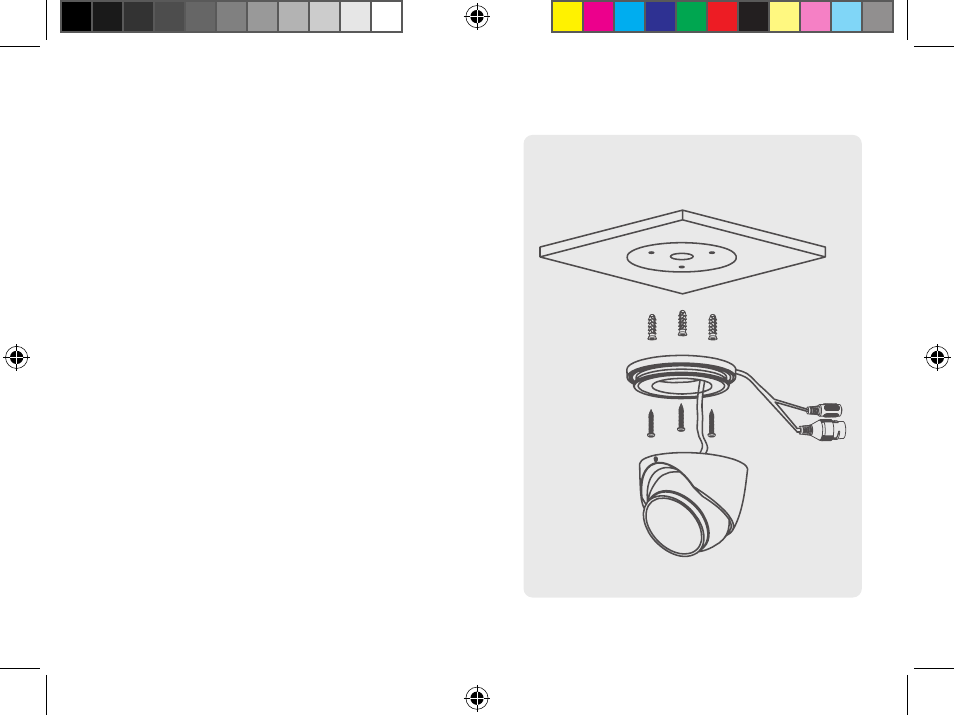

6. Angle the dome camera and cover as shown in
Figure 2 .
7. Use the included Allen key to tighten the dome
camera firmly onto the camera base.
8. Remove the vinyl film from the camera lens once
your installation is complete.
Installing the camera
