FIG. 2 FIG.2
FIG.3
FIG. 3

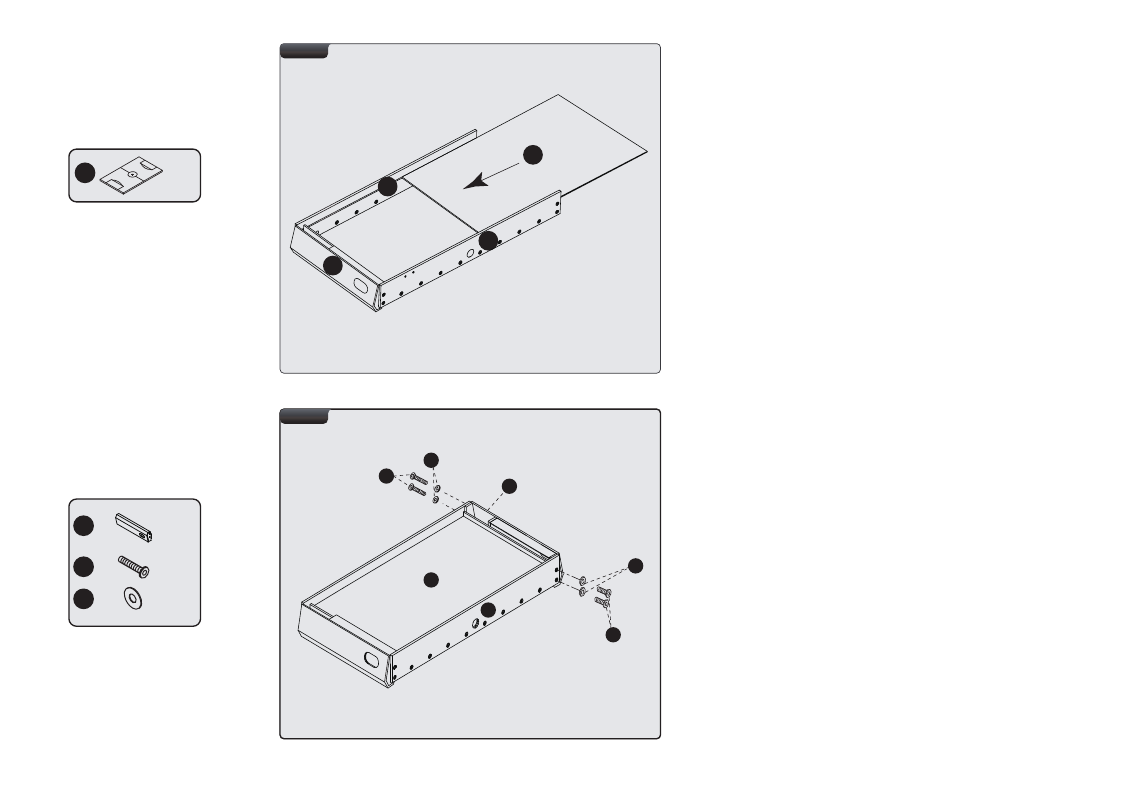

4. Slide the Playfield (#4), with the graphics facing down,
into the grooves of the Side and End Aprons (#1 & #2).
See FIG. 2.
5. Attach one End Apron (#2) to the Side Aprons (#1) using
four Bolts (#8) and four Washers (#9). See FIG. 3.
5
X 1 4
1
4
2
1
X 1
X 4
X 4
2
8
9
2
4
1
8
8
9
9
