ASSEMBLY INSTRUCTIONS
FIG.1
57800 PARTS LIST
Folded Poker Table
1 Piece
Pre-installed Pre-installed Pre-installed Pre-installed
Metal Bar
2 Pieces
Butterfly Bolt
2 Pieces
Plastic “L” Bracket
12 Pieces
4 x 15mm Screw
48 Pieces
1 2 3 4 5
1

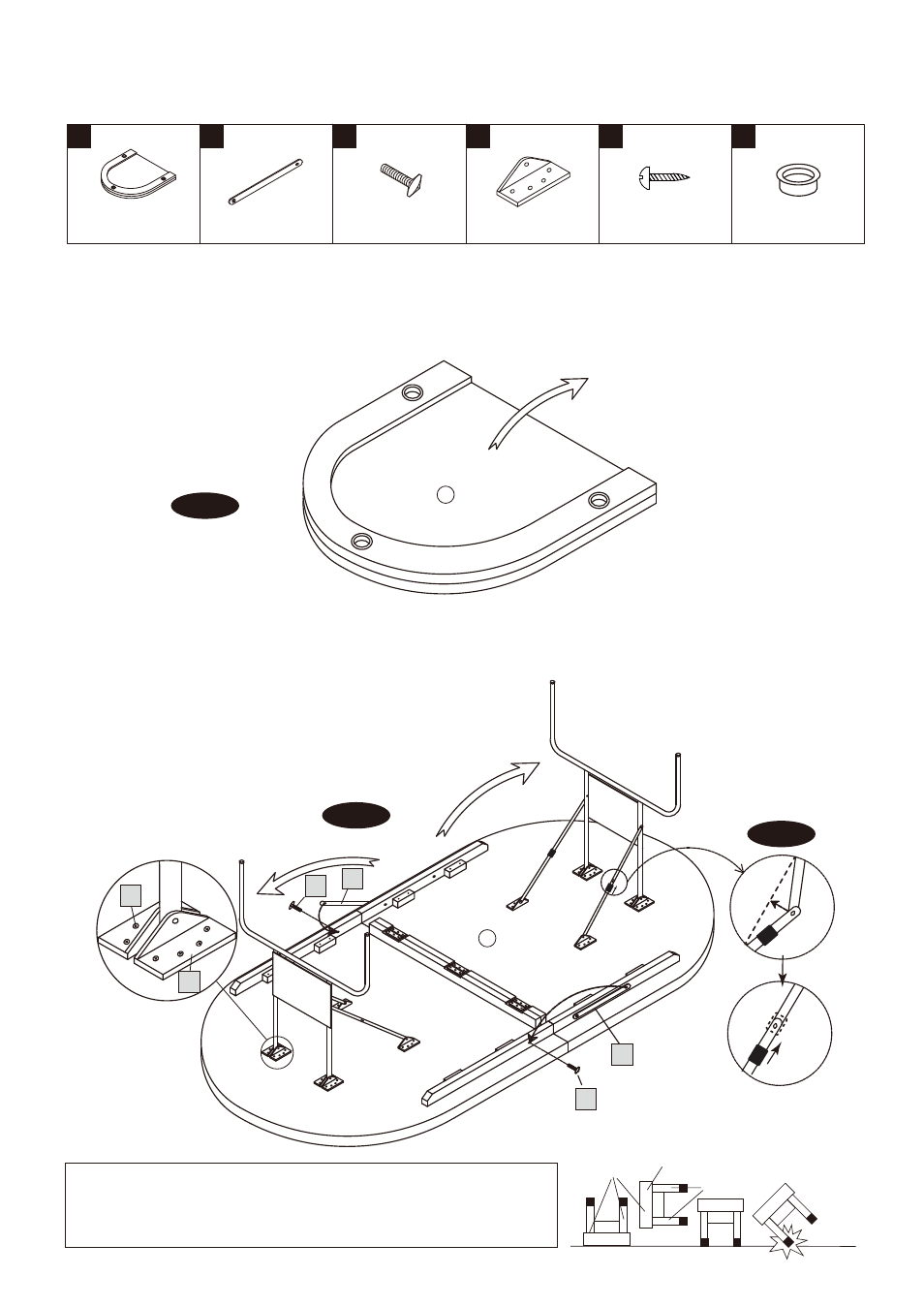

1. Find a clean and level place to assemble your Folded Poker Table. It is built upside down. Once the assembly is completed
and turn it over. Two strong adults will be recommended to turn it over.
2. Unfold the Folded Poker Table (#1). See. FIG. 1.
3. Unfold the legs from the Table (#1). Make sure the hinges locked in the correct position See. FIG.2A.
4. Remove the Butterfly bolt (#3) from the table; flip the Metal bar (#2) over to the other side as shown. Then replace the bolt
(#3) to its former position. See FIG.2.
Pre-installed
Cup Holder
6 Pieces
6
HOLD TABLE
CABINET DO NOT
HOLD THE
LEGS
DO NOT LEAN THE
TABLE ON ITS LEGS!
CAUTION: Two strong adults are recommended to turn the table over as shown.
1. Lift the table off the ground.
2. Turn the table over.
3. Place it on all four feet at the same time on the ground.
FIG.2
FIG.2A
1
3
4
5
3
2
2
