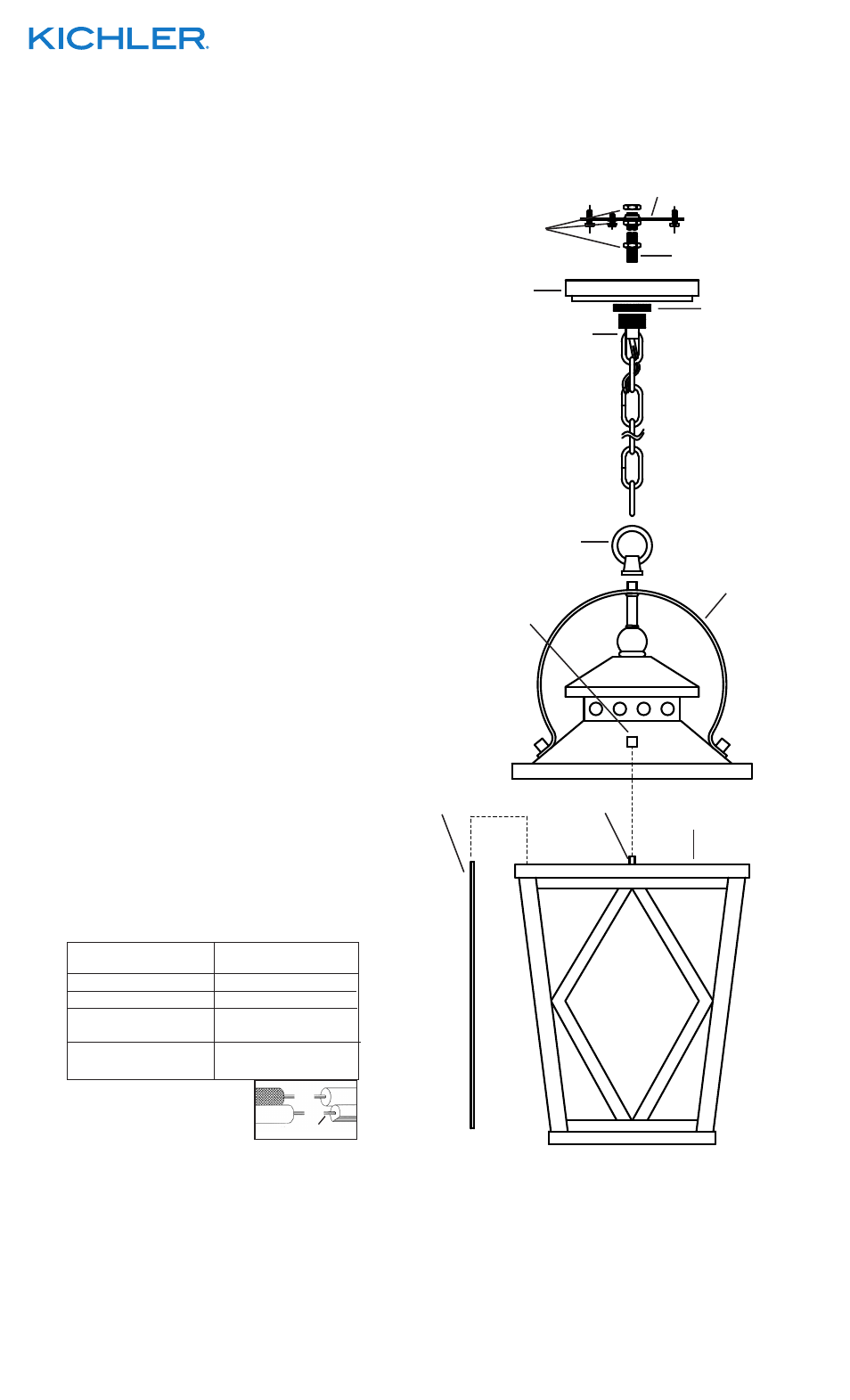

1) To insert glass panels: Lower one glass panel down into

cage. Tilt glass panel so top of glass panel is pointing

towards outside of fixture. Fit top edge of glass under

bracket along inside top edge of cage. Carefully raise glass

panel up and push bottom edge glass towards outside of

fixture. Carefully lower glass panel down. Fit bottom edge of

glass inside channel along bottom of cage. Repeat above

steps for remaining glass panels.

2) Insert recommended bulb.
3) Lower roof down to fixture. Pass holes in edge of roof over

threaded studs along top edge of cage.

4) Screw threaded caps onto threaded studs. Tighten threaded

caps to secure roof in place.

5) Pass fixture wire from top of fixture through hole in bottom

of loop. Thread loop onto end of threaded pipe on top of roof.

6) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

7) Take threaded pipe from parts bag and screw in screw collar

loop a minimum of 6 mm (1/4”). Lock into place with hexnut.

8) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

9) Connect mounting strap to outlet box.
10) Unscrew the threaded ring from screw collar loop. Take

canopy and pass over screw collar loop. Approximately one

half of the screw collar loop exterior threads should be

exposed. Adjust screw collar loop by turning assembly up or

down in mounting strap. Remove canopy.

11) After desired position is found, tighten both top and bottom

hexnuts up against the bottom and top of the mounting

strap.
12) Slip canopy over screw collar loop and thread on threaded

ring. Attach chain (with fixture connected) to bottom of

screw collar loop. Unscrew threaded ring, let canopy and

threaded ring slip down.

13) Weave electrical wire and ground wire through chain links no

more than 3 inches apart. Pass wire through threaded ring,

canopy, screw collar loop, threaded pipe and into outlet box.

14) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire

to black or white power supply wire.

15) Make wire connections (connectors not provided). Reference

chart below for correct connections and wire accordingly.

16) Raise canopy to ceiling.
17) Secure canopy in place by tightening threaded ring onto

screw collar loop.

Date Issued: 9/5/14

IS-49294-CB

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
