SEMI FLUSH INSTALLATION INSTRUCTIONS
1) Set bar down on top of socket. Align hole in bar with hole in socket.
2) Thread thumbscrew down through hole in bar and into socket.
Tighten thumbscrew to secure bar in place.
3) Repeat steps #1-2 for remaining bar.
4) Raise socket assembly up into shade.
5) Align holes in outer edge of bar with holes in top of shade.
6) Thread screws down through holes in shade and into bar. Tighten
screws to secure socket assemble in place.
7) Screw end of stem into coupling on top of socket assembly.
8) Pass hole in canopy over end of threaded pipe.
9) Slip lockwasher over end of threaded pipe protruding from inside
canopy. Thread hexnut onto threaded pipe.
10) Follow steps #14-22 in Stem Drop Installation Instructions.
STEM DROP INSTALLATION INSTRUCTIONS
1) Set bar down on top of socket. Align hole in bar with hole in socket.
2) Thread thumbscrew down through hole in bar and into socket.
Tighten thumbscrew to secure bar in place.
3) Repeat steps #1-2 for remaining bar.
4) Raise socket assembly up into shade.
5) Align holes in outer edge of bar with holes in top of shade.
6) Thread screws down through holes in shade and into bar. Tighten
screws to secure socket assemble in place.
7) Pass wire from fixture through stem and screw stem into coupling on
top of socket assembly. NOTE: Thread locking compound must be
applied to all stem threads as noted with symbol (3) to prevent
accidental rotation of fixture during cleaning, relamping, etc.
8) Pass fixture wire through remaining stems and screw stems together.
9) Thread one small threaded pipe into end of each small loop.
10) Attach small loop to end of last stem.
11) Pass threaded pipe at end of second small loop through hole in canopy.
12) Slip lockwasher over threaded pipe protruding from inside of canopy
and screw hexnut onto threaded pipe.
13) Attach chain link to small loop at end of stem and to loop on canopy.
14) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work without
shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your home. Place
the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room that you
are working on.
c) Place the wall switch in the “OFF” position. If the fixture to be
replaced has a switch or pull chain, place those in the “OFF”
position.
15) Find the appropriate threaded holes on mounting strap. Assemble
mounting screws into threaded holes.
16) Attach mounting strap to outlet box. (Screws not provided). Mounting
strap can be adjusted to suit position of fixture.
17) Make wire connections (connectors not provided.) Reference chart
below for correct connections and wire accordingly.
18) Push fixture to ceiling, carefully passing mounting screws through
holes in canopy.
19) Secure fixture to ceiling with knurl knobs.
20) Raise glass up to fixture. Fit glass inside shade.
21) Pass hole in glass over socket.
22) Slip spacer over socket. Thread socket ring onto socket. Tighten
socket ring to secure glass in place. (DO NOT over tighten.)
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 10/19/12 IS-65394-CB
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
KNURL KNOB
BOUTON MOLETÉ
SMALL LOOP
PETITE BOUCLE 4
STEM
TIGE
CHAIN LINK
MAILLON DE
LA CHAÎNE
4
3

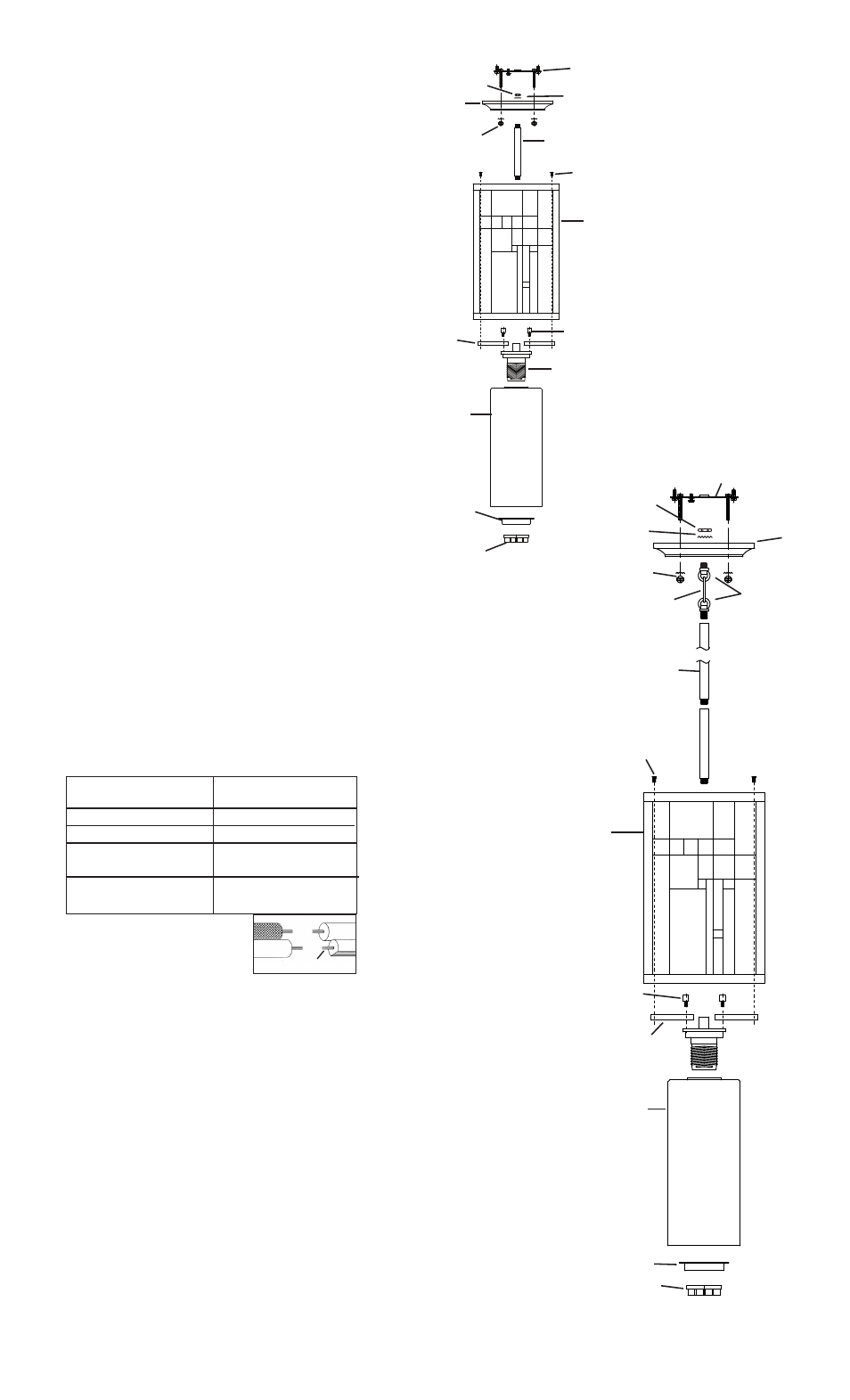

STEM MOUNT INSTALLTION
INSTALLATION DU MONT TIGE
SEMI FLUSH INSTALLATION
INSTALLATION SEMI-RAS
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
KNURL KNOB
BOUTON MOLETÉ
SCREW
VIS
HEXNUT
ECROU HEXAGONAL
LOCKWASHER
RONDELLE DE
BLOCAGE
SHADE
ABAT-JOUR
BAR
BARRE
GLASS
VERRE
SCREW
VIS
SHADE
ABAT-JOUR
THUMBSCREW
VIS À MOLETTE BAR
BARRE
GLASS
VERRE
SOCKET
DOUILLE
SPACER
ENTRETOISE
SOCKET RING
ANNEAU DE DOUILLE
HEXNUT
ECROU HEXAGONAL
LOCKWASHER
RONDELLE DE
BLOCAGE
THUMBSCREW
VIS À MOLETTE
SPACER
ENTRETOISE
SOCKET RING
ANNEAU DE DOUILLE
STEM
TIGE
