STEM DROP INSTALLATION INSTRUCTIONS

NOTE DIRECTION OF SWIVEL IN ACCORDANCE WITH CEILING.
1) Pass wire from fixture through stem and screw stem to

top of fixture.

NOTE: Thread locking compound must be applied to all

stem threads as noted with symbol (3) to prevent accidental

rotation of fixture during cleaning, relamping, etc.

2) Pass fixture wire through remaining stems and screw stems
together.
3) Pass fixture wire through swivel and thread swivel onto end

of last stem.

4) Pass hole in canopy down over end of swivel.
5) From inside canopy, slip lockwasher over end of threaded

pipe on end of swivel protruding from inside canopy.

6) Thread hexnut onto end of threaded pipe. Tighten hexnut to

secure canopy to fixture.

5) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

6) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

7) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

8) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

9) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

10) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

11) Screw finial onto threaded pipe on bottom of fixture.
12) Attach bead strands to loops on top of center stem and

loops inside ring of fixture body.

WALL MOUNT INSTALLATION INSTRUCTIONS

1) Insert end of 3.75” stem with bead into hole in canopy.
2) From inside canopy, slip lockwasher over end of threaded

pipe on end of stem protruding from inside canopy.

3) Thread hexnut onto end of threaded pipe. Tighten hexnut to

secure stem to canopy.

4) Pass fixture wire through swivel and thread swivel into

coupling on top of fixture.

5) Pass fixture wire through stem on canopy and through hole

in canopy.

6) Thread swivel onto end of stem on canopy.
7) Follow steps 7-12 in Stem Drop Installation Instructions.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/4/13

IS-43328-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

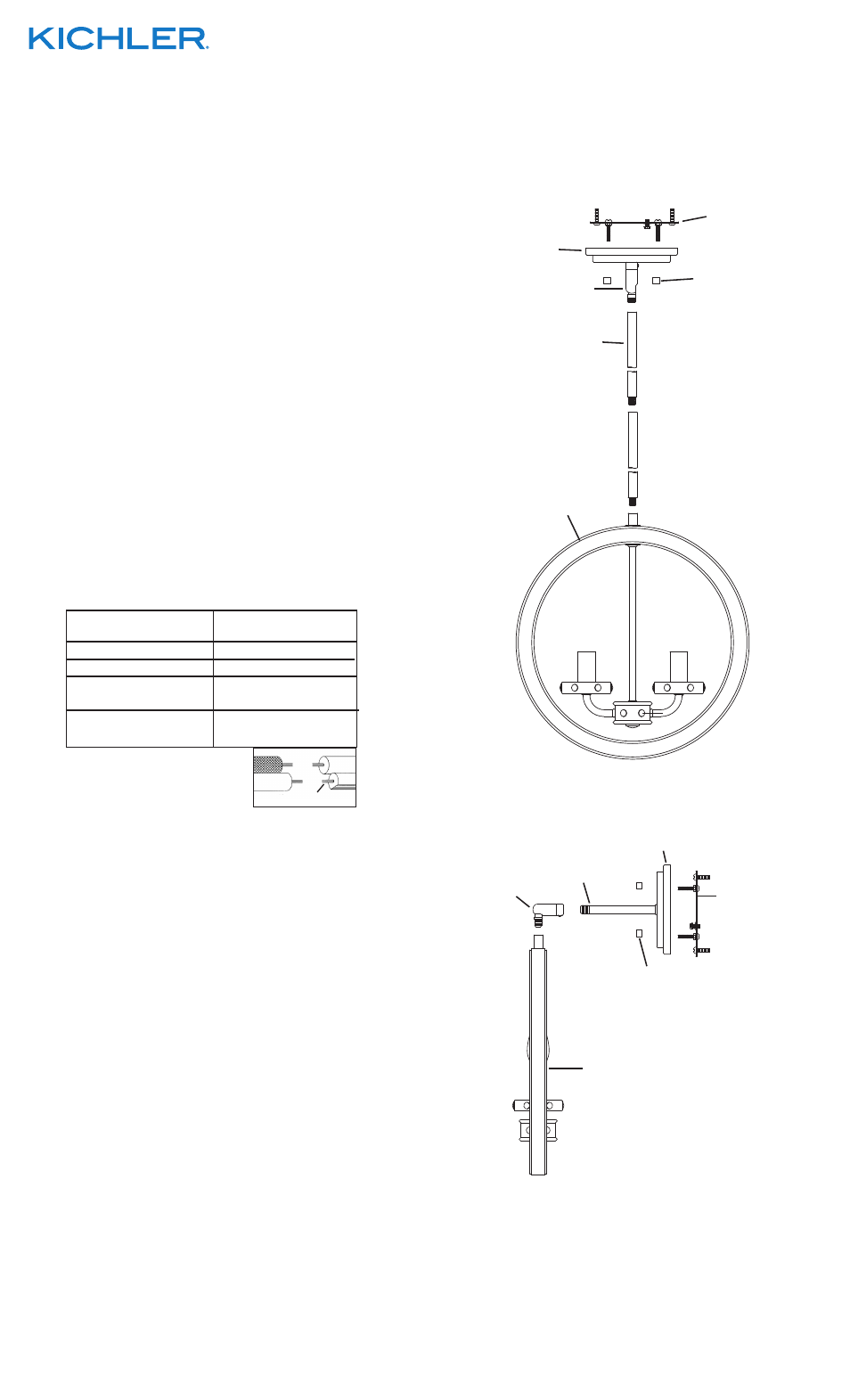

MOUNTING STRAP

PATTE DE FIXATION

CANOPY

CACHE

KNURL KNOB

BOUTON MOLETÉ

STEM

TIGE

SWIVEL

ROTULE

FIXTURE BODY

LUMINAIRE
