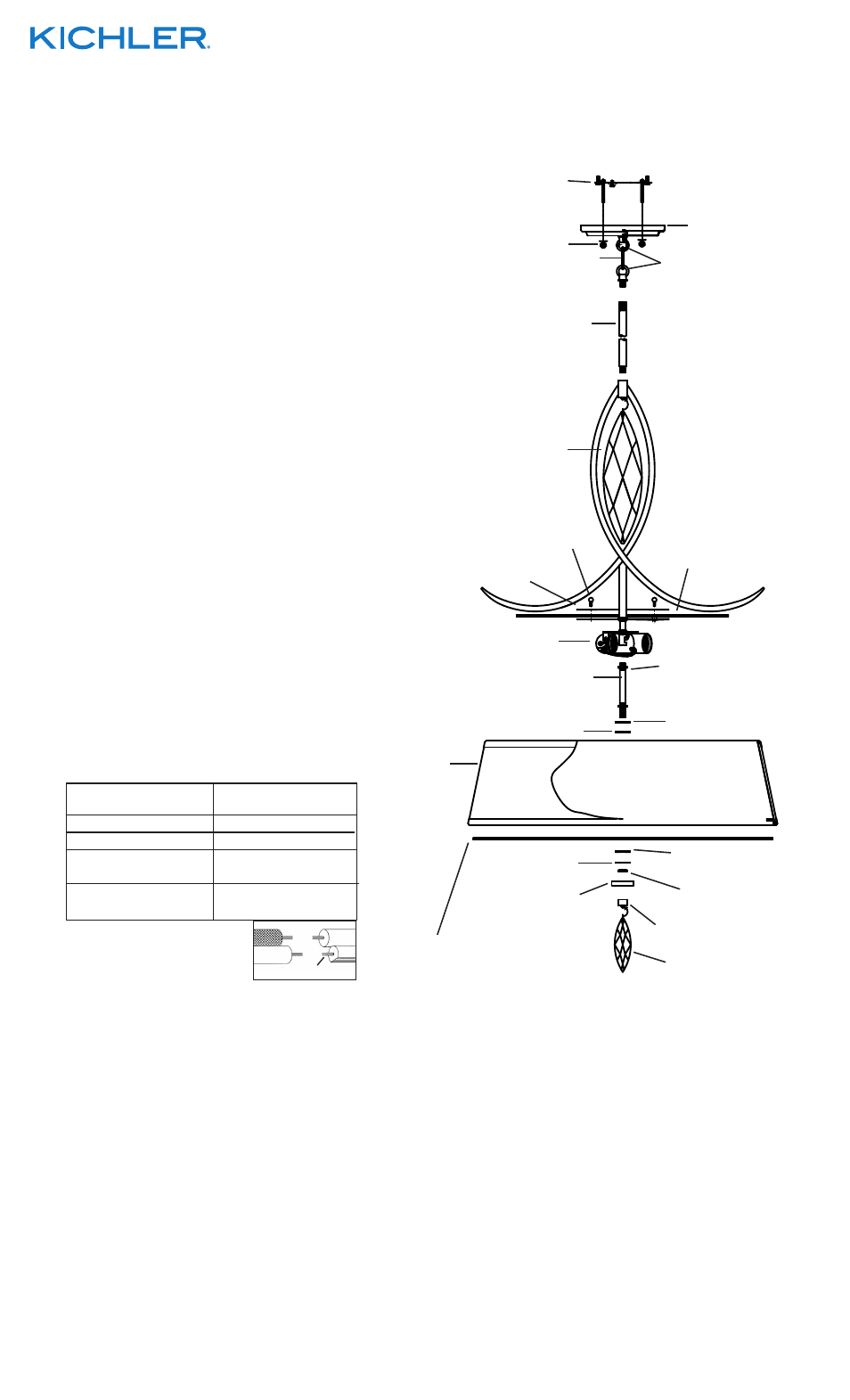

1) Pass fixture wire from coupling on top of socket cluster

through end of long threaded pipe. Thread end of long

threaded pipe into coupling.

2) Pass fixture wire through long tube. Lower long tube down

over long threaded pipe.

3) Pass fixture wire through hole in coupling. Thread coupling

onto end of threaded pipe protruding from long tube.

4) Pass wire from coupling through stem. Thread end of stem into
coupling

NOTE: Thread locking compound must be applied

to all stem threads as noted with symbol (3) to prevent

accidental rotation of fixture during cleaning, relamping, etc.

5) Pass fixture wire through remaining stems and screw stems
together.
6) Thread one small threaded pipe into end of each small loop.
7) Pass fixture wire through first loop. Thread first loop onto

end of last stem.

8) Pass fixture wire through second loop and through hole in
canopy.
9) Pass threaded pipe at end of second loop through hole in
canopy.
10) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto end of threaded pipe protruding from

inside canopy.

11) Pass fixture wire through hole in hexnut. Thread hexnut onto

end of threaded pipe.

12) Attach chain link to small loop at end of stem and to loop on
canopy.
13) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

14) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

15) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

16) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

17) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

18) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

19) Unscrew ball studs holding retaining plates in place above

socket cluster. Remove both retaining plates.

20) Lower one half of top glass diffuser down onto bracket in

center of fixture above socket cluster.

21) Set one retaining plate on top of top glass diffuser. Align

holes in retaining plate with holes in top glass diffuser.

22) Thread end of one ball stud into hole in retaining plate and

into top glass diffuser. Carefully tighten ball stud to secure

retaining plate and top glass diffuser in place. (DO NOT over

tighten.)
23) Repeat steps 20-22 for remaining top glass diffuser and

retaining plate.

24) Thread end of threaded pipe with hexnut into hole in bottom

of socket cluster.

25) Screw hexnut onto end of threaded pipe.
26) Raise shade up to fixture. Fit shade over socket cluster.
27) Raise glass diffuser up to fixture. Pass hole in glass diffuser

over end of threaded pipe. Fit glass diffuser up against

bracket on bottom of shade.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/3/14

IS-43566-CB
