1) Raise shade up to fixture. Fit shade inside cage on fixture.

Align holes in bracket on shade with holes in bracket on

inside of cage.

2) Thread screws down from holes in bracket on cage and

down into holes in bracket on shade.

3) From inside shade, thread ball knobs onto ends of screws.

Tighten ball knobs to secure shade in place.

4) Slip fixture body up through center of shade.
5) Pass end of threaded pipe up through hole in bracket on top

of shade.

6) Thread coupling onto end of threaded pipe protruding up

through center of shade.

7) Insert recommended bulbs.
8) Screw short end of threaded pipe with hexnut into bottom of

fixture body.

9) Slip one flat washer then one rubber washer over end of

threaded pipe inside cage.

10) Raise diffuser up to fixture. Pass hole in diffuser over end of

threaded pipe.

11) Slip one rubber washer then one flat washer over end of

threaded pipe.

12) Thread hexnut onto end of threaded pipe. Tighten hexnut to

secure diffuser in place. (DO NOT over tighten.)

13) Pass hole in bottom trim over end of threaded pipe.
14) Thread finial onto each end of threaded pipe. (DO NOT over
tighten.)
15) Pass wire from fixture through stem and screw stem to top of
fixture.

NOTE: Thread locking compound must be applied to

all stem threads as noted with symbol (3) to prevent

accidental rotation of fixture during cleaning, relamping, etc.

16) Pass fixture wire through remaining stems and screw stems
together.
17) Attach small loop to end of last stem.
18) Attach chain link to small loop at end of stem and to loop on
canopy.
19) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF” position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

20) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

21) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

22) Attach safety cable to slot in mounting strap.
23) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

24) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

25) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 11/29/13

IS-43369-CB

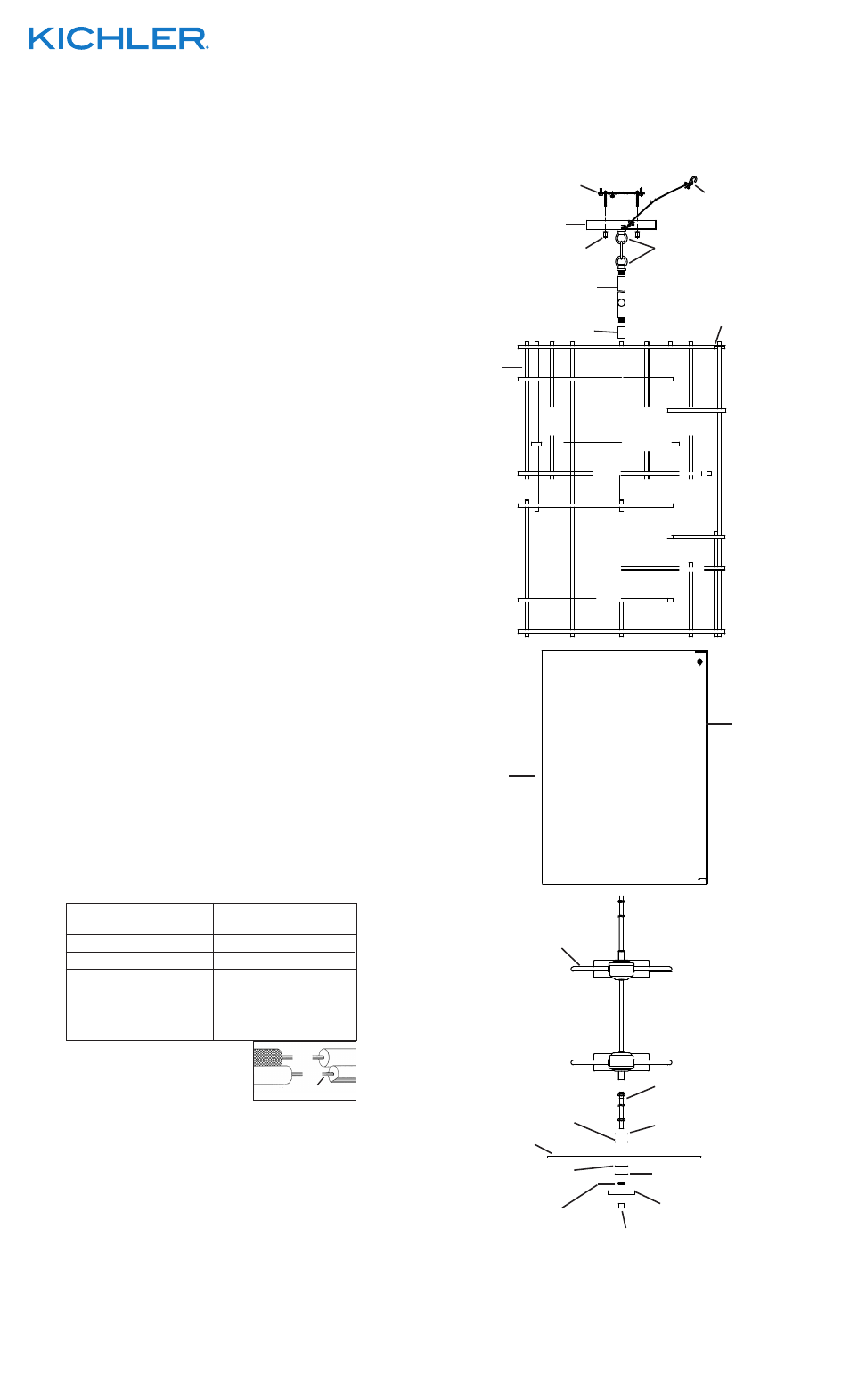

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

MOUNTING STRAP

PATTE DE FIXATION

CANOPY

CACHE

KNURL KNOB

BOUTON MOLETÉ

SMALL LOOP

PETITE BOUCLE

STEM

TIGE

SAFETY CABLE

CÂBLE DE SÉCURITÉ

FINIAL

ORNEMENT

BOTTOM TRIM

GARNITURE INFÉRIEURE

HEXNUT

ECROU HEXAGONAL

FLAT WASHER

RONDELLE PLATE

RUBBER WASHER

RONDELLE EN

CAOUTCHOUC

SHADE

ABAT-JOUR

DIFFUSER

DIFFUSEUR

CAGE

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-

LATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-

DUCTIONS EN FRANÇAIS.

SCREW

VIS

BALL KNOB

BOUTON À BILLE

FLAT WASHER

RONDELLE PLATE

RUBBER WASHER

RONDELLE EN

CAOUTCHOUC

THREADED PIPE

TUBE FILETE
