IMPORTANT SAFETY INSTRUCTIONS
LIGHTED BULB IS HOT!
WARNING: To reduce the risk of FIRE or INJURY TO PERSON:
• Turn off and allow to cool before replacing bulb.
• Bulb gets HOT QUICKLY! Contact switch only when turning off.
• DO NOT remain in light if skin feels warm. (Light is intense,
may cause “sunburn”)
• DO NOT look directly at lighted bulb.
• Keep materials away from bulb that may burn.
• Use ONLY with wattage specified or lower.
• DO NOT touch bulb at any time, use a soft cloth. Oil from skin
may damage bulb.
• DO NOT operate fixture with missing or damaged glass.
NOTE DIRECTION OF SWIVEL IN ACCORDANCE WITH CEILING.
1) Pass hole in top of glass over socket.
2) Thread socket ring onto socket. Tighten socket ring to
secure glass in place. (DO NOT over tighten.)
3) Lower shade down over fixture body. Fit shade over glass.
4) Screw center stem into top of fixture body.
5) Pass wire from center stem through stem and screw stem to
top of center stem.
NOTE: Thread locking compound must be applied to all
stem threads as noted with symbol (3) to prevent accidental
rotation of fixture during cleaning, relamping, etc.
6) Pass fixture wire through remaining stems and screw stems
together.
7) Pass fixture wire through swivel on canopy and thread
swivel onto top of last stem.
8) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF”
position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
9) Find the appropriate threaded holes on mounting strap.
Assemble mounting screws into threaded holes.
10) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
11) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
12) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy.
13) Thread knurl knobs onto mounting screws. Tighten knurl
knobs to secure fixture to ceiling.
14) Insert recommended bulb. CAUTION: DO NOT touch bulb
with bare hands. If this happens, clean bulb with denatured
alcohol and a lint free cloth.
15) Slip glass sleeve over bulb.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 8/30/13 IS-43442-CB
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada

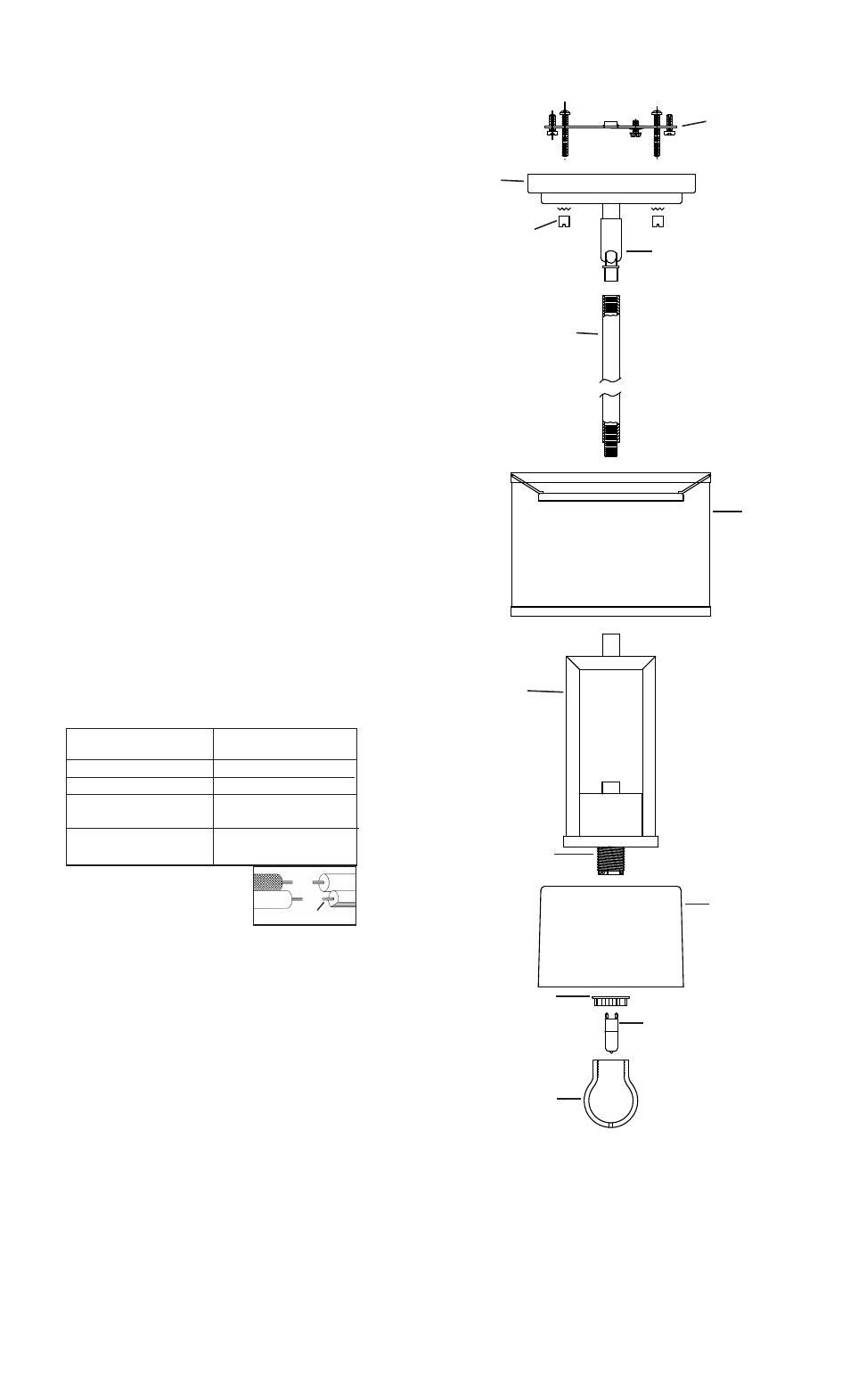

MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
KNURL KNOB
BOUTON MOLETÉ
STEM
TIGE
3
SWIVEL
ROTULE
3
FIXTURE BODY
LUMINAIRE
GLASS
VERRE
BULB
L’AMPOULE
GLASS SLEEVE
MANCHON DE VERRE
SHADE
ABAT-JOUR
SOCKET RING
ANNEAU DE LA DOUILLE
SOCKET
DOUILLE
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
