SEMI FLUSH INSTALLATION INSTRUCTIONS
1) Screw end of threaded pipe into coupling on top of fixture body.
2) Lower tube down over threaded pipe.
3) Pass hole in check ring over end of threaded pipe. Set check ring on
top of tube.
4) Lower top trim down over end of threaded pipe.
5) Slip lockwasher over end of threaded pipe.
6) Thread hex coupling onto end of threaded pipe.
7) Thread end of short threaded pipe into end of hex coupling.
8) Pass hole in canopy over end of threaded pipe. Set canopy on top of
top trim.
9) Slip lockwasher over end of threaded pipe. Thread hexnut onto
threaded pipe.
10) Follow steps #13-26 in Stem Drop Installation Instructions.
STEM DROP INSTALLATION INSTRUCTIONS
1) Pass fixture wire through long threaded pipe.
2) Screw end of long threaded pipe into coupling on top of fixture body.
3) Lower tube down over threaded pipe.
4) Pass hole in check ring over end of threaded pipe. Set check ring on
top of tube.
5) Screw coupling onto end of threaded pipe.
6) Pass wire from fixture though stem and screw stem to top of fixture.
NOTE: Thread locking compound must be applied to all stem
threads as noted with symbol (3) to prevent accidental rotation of fixture
during cleaning, relamping, etc.
7) Pass fixture wire through remaining stems and screw stems together.
8) Thread one small threaded pipe into end of each small loop.
9) Attach small loop to end of last stem.
10) Pass threaded pipe at end of second small loop through hole in canopy.
11) Slip lockwasher over threaded pipe protruding from inside of canopy
and screw hexnut onto threaded pipe.
12) Attach chain link to small loop at end of stem and to loop on canopy.
13) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work without
shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your home. Place
the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room that you
are working on.
c) Place the wall switch in the “OFF” position. If the fixture to be
replaced has a switch or pull chain, place those in the “OFF”
position.
14) Find the appropriate threaded holes on mounting strap. Assemble
mounting screws into threaded holes.
15) Attach mounting strap to outlet box. (Screws not provided). Mounting
strap can be adjusted to suit position of fixture.
16) Make wire connections (connectors not provided.) Reference chart
below for correct connections and wire accordingly.
17) Push fixture to ceiling, carefully passing mounting screws through
holes in canopy.
18) Secure fixture to ceiling with knurl knobs.
19) Insert recommended bulbs.
20) Raise shade up to fixture. Align holes in bracket on shade with holes
in bracket on fixture body.
21) Thread ball studs down through holes in bracket. Tighten ball studs
to secure shade in place.
22) Screw short end of threaded pipe with hexnut into coupling at bottom
of fixture.
23) Slip flat washer then rubber washer over end of threaded pipe.
24) Pass hole in diffuser over end of threaded pipe.
25) Slip remaining rubber washer then flat washer over end of threaded
pipe. Screw hexnut onto threaded pipe.
26) Pass bottom trim over end of threaded pipe. Screw finial onto
threaded pipe. (DO NOT over tighten.)
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 11/16/12 IS-65382-CB

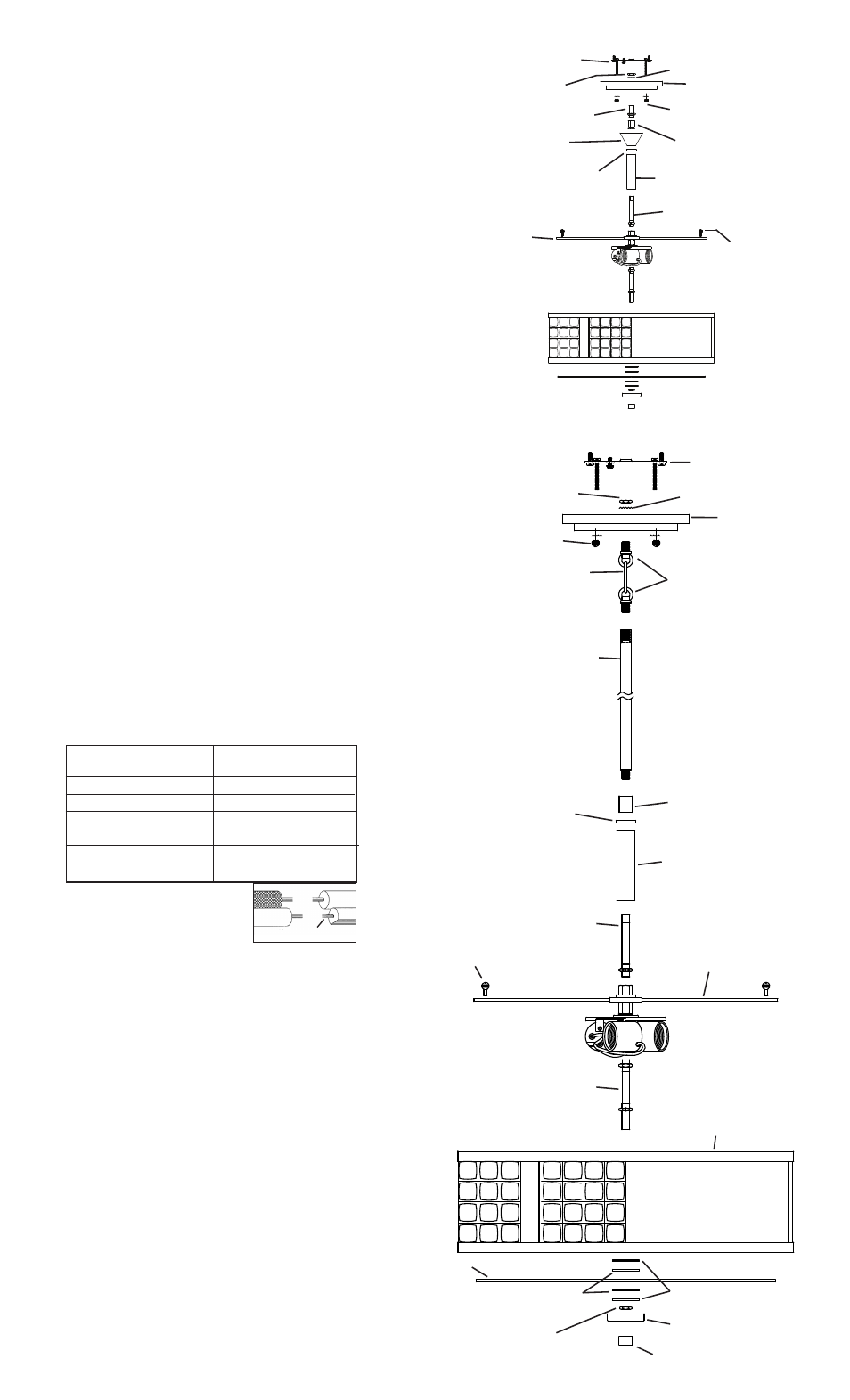

INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE KNURL KNOB
BOUTON MOLETÉ
SMALL LOOP
PETITE BOUCLE
4
STEM
TIGE
CHAIN LINK
MAILLON DE LA CHAÎNE
3
THREADED PIPE
TUBE FILETÉ
HEXNUT
ECROU HEXAGONAL
FINIAL
ORNEMENT
RUBBER WASHER
RONDELLE EN
CAOUTCHOUC
BOTTOM TRIM
GARNITURE INFÉRIEURE
STEM MOUNT INSTALLTION
INSTALLATION DU MONT TIGE
SEMI FLUSH INSTALLATION
INSTALLATION SEMI-RAS
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
KNURL KNOB
BOUTON MOLETÉ
TOP TRIM
GARNITURE SUPERIOR
COUPLING
ACCOUPLEMENT
DIFFUSOR
DIFFUSEUR
HEXNUT
ECROU HEXAGONAL
LOCKWASHER
RONDELLE DE BLOCAGE
HEXNUT
ECROU HEXAGONAL
LOCKWASHER
RONDELLE DE BLOCAGE
TUBE
TUBE
THREADED PIPE
TUBE FILETÉ
CHECK RING
ANNEAU DE RETENUE
THREADED PIPE
TUBE FILETÉ
CHECK RING
ANNEAU DE RETENUE
TUBE
TUBE
FLAT WASHER
RONDELLE PLATE
SHADE
ABAT-JOUR
BALL STUD
GOUJON À BILLE
BRACKET
SUPPORT
BALL STUD
GOUJON À BILLE
BRACKET
SUPPORT
SHORT THREADED PIPE
TUBE COURT FILETÉ
HEX COUPLING
ACCOUPLEMNT
HEXAGONAL
