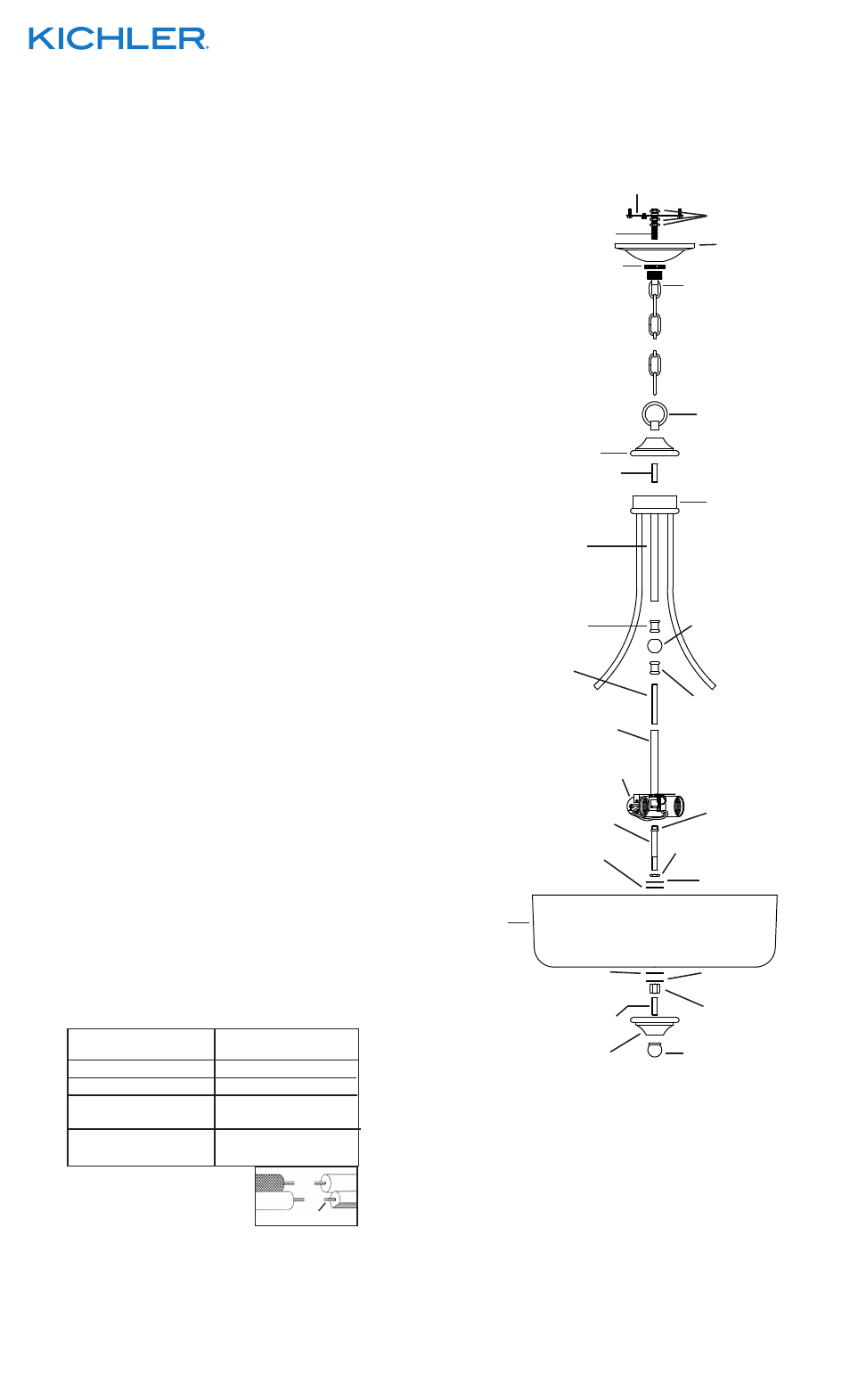

1) Lower long threaded pipe down through bottom center tube.

Pull fixture wire through long threaded pipe and make sure

fixture wire does not get pinched in bottom center tube.

2) Lower first decorative trim piece, decorative sphere then

second decorative trim piece down long threaded pipe. Pull

fixture wire through all three decorative pieces and make

sure fixture wire does not get pinch in between decorative

pieces.
3) Lower fixture body down. Pass top center tube down over

long threaded pipe. Pull fixture wire up at top of fixture body.

Make sure fixture wire does not get pinched in in top center

tube.
4) Pass fixture wire from top of fixture body through short

threaded pipe. Thread end of short threaded pipe into hole in

top of fixture body.

5) Pass fixture wire from short threaded pipe through hole in

center of top trim. Lower top down towards fixture. Pass

hole in top trim over end of short threaded pipe. Set top trim

down on top of fixture body.

6) Pass fixture wire through hole in bottom of top loop. Thread

top loop onto end of threaded pipe protruding from top trim.

7) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

8) Take threaded pipe from parts bag and screw in screw collar

loop a minimum of 6 mm (1/4”). Lock into place with hexnut.

9) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

10) Connect mounting strap to outlet box.
11) Unscrew the threaded ring from screw collar loop. Take

canopy and pass over screw collar loop. Approximately one

half of the screw collar loop exterior threads should be

exposed. Adjust screw collar loop by turning assembly up or

down in mounting strap. Remove canopy.

12) After desired position is found, tighten both top and bottom

hexnuts up against the bottom and top of the mounting

strap.
13) Slip canopy over screw collar loop and thread on threaded

ring. Attach chain (with fixture connected) to bottom of

screw collar loop. Unscrew threaded ring, let canopy and

threaded ring slip down.

14) Weave electrical wire and ground wire through chain links no

more than 3 inches apart. Pass wire through threaded ring,

canopy, screw collar loop, threaded pipe and into outlet box.

15) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire

to black or white power supply wire.

16) Make wire connections (connectors not provided). Reference

chart below for correct connections and wire accordingly.

17) Raise canopy to ceiling.
18) Secure canopy in place by tightening threaded ring onto

screw collar loop.

19) Thread end of threaded pipe with bead into center of socket
cluster.
20) Thread hexnut onto end of threaded pipe.
21) Pass hole in flat washer over end of threaded pipe. Pass

hole in rubber washer over end of threaded pipe.

Date Issued: 8/29/14

IS-43653-CB

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
