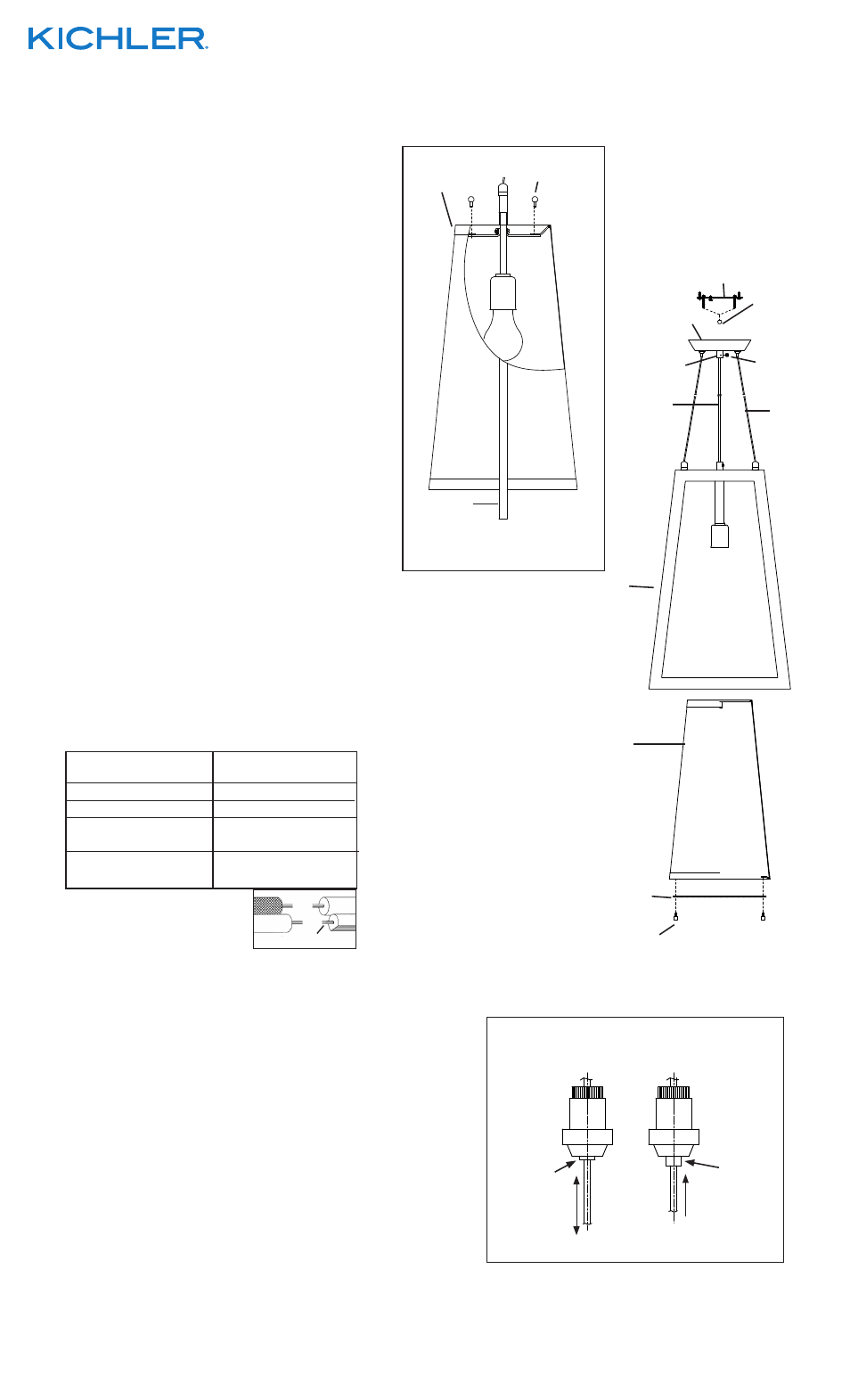

1) Fit shade in between frame of fixture.
2) Pass hole in top of shade over socket.
3) Raise shade up and set brackets on insides of shade on top

of brackets attached to fixture body.

4) Align holes in brackets on shade with holes in brackets of

fixture body.

5) Thread ball studs down through holes in brackets on shade

and into holes in brackets of fixture body. Tighten ball studs

to secure shade in place.

6) Adjust the length of the cables to achieve the desired height

of the mounted fixture. (See cable adjustment detail)

To raise fixture: Push cable up into canopy. Release cable

and cable will lock into place.

To lower fixture: Push button in on cable adjuster and pull

cable down. Release button to lock cable in place.

NOTE: With button pushed in cable will raise and lower.

Without button pushed in cable will only raise up and lock in

place.
7) Slip center cord from fixture through hole in short tube on

center of canopy. Match length of center cord with length of

cables. Thread set screw through hole on side of center

tube. Tighten set screw to secure center cord.

8) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF” position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

9) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

10) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

11) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

12) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

13) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

14) Insert recommended bulb.
15) Raise diffuser up to fixture. Align holes in diffuser with holes

in bracket on bottom of shade.

16) Thread ball studs up through holes in diffuser and into holes

in bracket on bottom of shade. Tighten ball studs to secure

shade in place.

NOTE: Adjust position of the fixture after installation for leveling
purposes of one inch or less. (See cable adjustment detail)

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 9/27/13

IS-43361-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-

LATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-

DUCTIONS EN FRANÇAIS.

PRESSED

CABLE ADJUSMENT DETAIL

DÉTAILS D’AJUSTEMENT DU CÂBLE

NOT

PRESSED

UP & DOWN

UP ONLY
