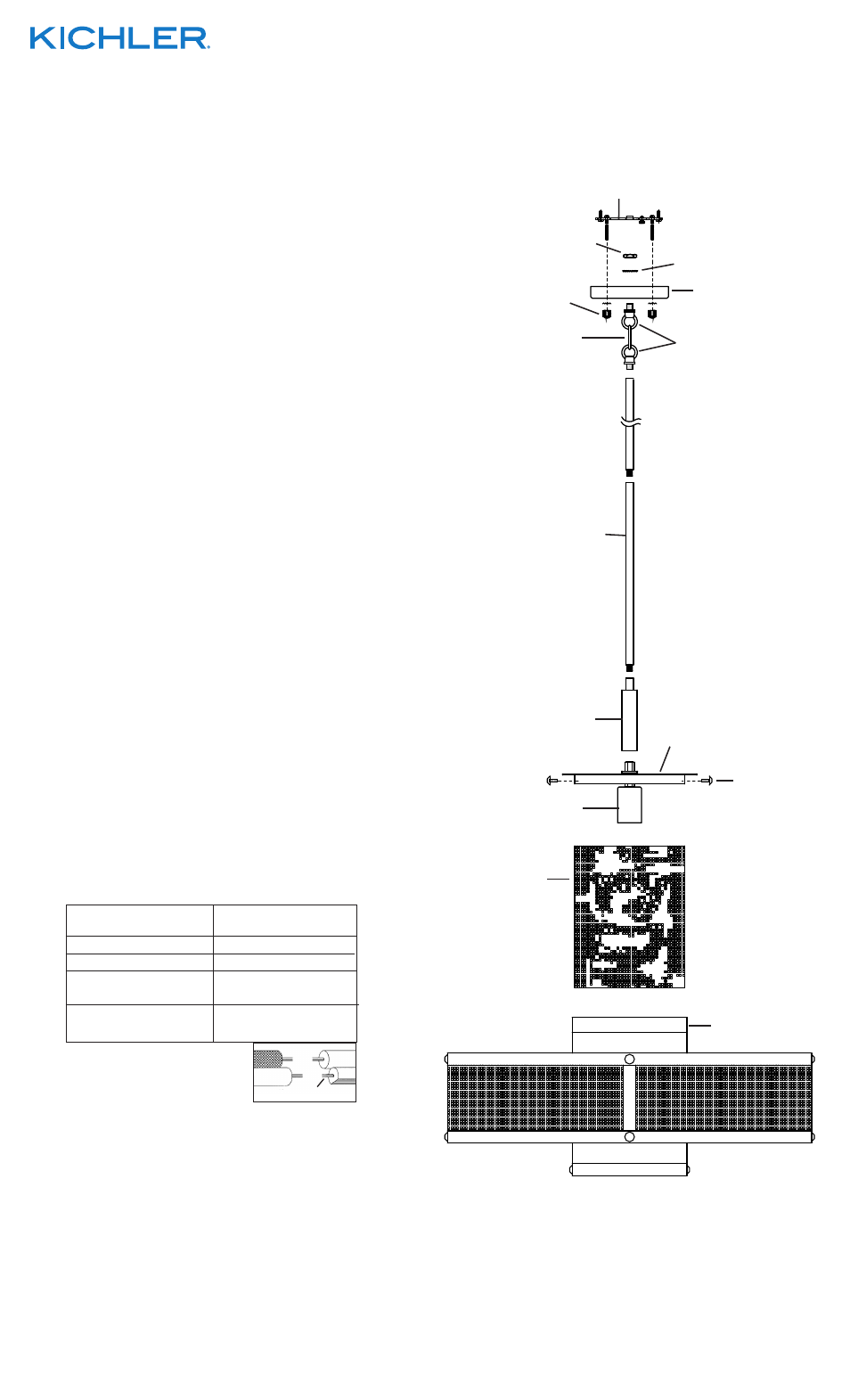

1) Lower glass down into cage. Align holes along top of glass

with holes along top edge of cage.

2) Lower top cap with socket down towards glass and cage.

Pass sockets down through top of glass. Fit edge of top cap

inside glass. Align holes along edge of top cap with holes in

glass and cage.

3) Thread one thumbscrew into each hole along edge of cap

and into holes in cage and glass. IMPORTANT: Insert each

thumbscrew into holes in cap. DO NOT fully tighten each

thumbscrew until all thumbscrews are in place. Once all

thumbscrews are in place, fully tighten each thumbscrew to

secure cap to cage and glass.

4) Pass fixture wire from coupling on top cap through center
tube.
5) Screw center tube onto coupling on top cap.
6) Pass wire from center tube through stem and screw stem to

top of center tube. NOTE: Thread locking compound must be

applied to all stem threads as noted with symbol (3) to

prevent accidental rotation of fixture during cleaning,

relamping, etc.

7) Pass fixture wire through remaining stems and screw stems
together.
8) Pass fixture wire through first loop. Thread first loop onto

end of last stem.

9) Pass fixture wire through second loop and through hole in
canopy.
10) Pass threaded pipe at end of second loop through hole in
canopy.
11) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto end of threaded pipe protruding from

inside canopy.

12) Pass fixture wire through hole in hexnut. Thread hexnut onto

end of threaded pipe.

13) Attach chain link to small loop at end of stem and to loop on
canopy.
14) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

15) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

16) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

17) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

18) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

19) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire
