1) Pass wire from fixture through stem and screw stem to top of
fixture.

NOTE: Thread locking compound must be applied to

all stem threads as noted with symbol (3) to prevent

accidental rotation of fixture during cleaning, relamping, etc.

2) Pass fixture wire through remaining stems and screw stems
together.
3) Thread one small threaded pipe into end of each small loop.
4) Attach small loop to end of last stem.
5) Pass threaded pipe at end of second small loop through hole

in canopy.

6) Slip loop at end of safety cable over threaded pipe protruding

from inside canopy.

7) Slip lockwasher over threaded pipe protruding from inside of

canopy and screw hexnut onto threaded pipe.

8) Attach chain link to small loop at end of stem and to loop on
canopy.
9) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

10) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

11) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

12) Connect safety cable assembled to canopy to mounting

strap. (This will allow for fixture to be supported while wire

connections are made.)

13) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

14) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

15) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

16) Insert recommended bulbs.
17) Raise shade up to fixture. Fit shade inside cage of fixture.
18) Pass ends of threaded studs on top of shade through holes

in bracket on top of cage.

19) Screw threaded caps onto ends of threaded studs. Tighten

threaded caps to secure shade in place.

20) Screw hexnut onto end of threaded pipe on bottom of fixture
body.
21) Pass flat washer then rubber washer over end of threaded
pipe.
22) Pass hole in glass diffuser over end of threaded pipe.
23) Pass rubber washer then flat washer over end of threaded

pipe. Thread hexnut onto end of threaded pipe. Tighten

hexnut to secure diffuser in place. (DO NOT over tighten.)

24) Pass hole in bottom trim over end of threaded pipe.
25) Thread finial onto end of threaded pipe. (DO NOT over
tighten.)

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/4/13

IS-42792-CB

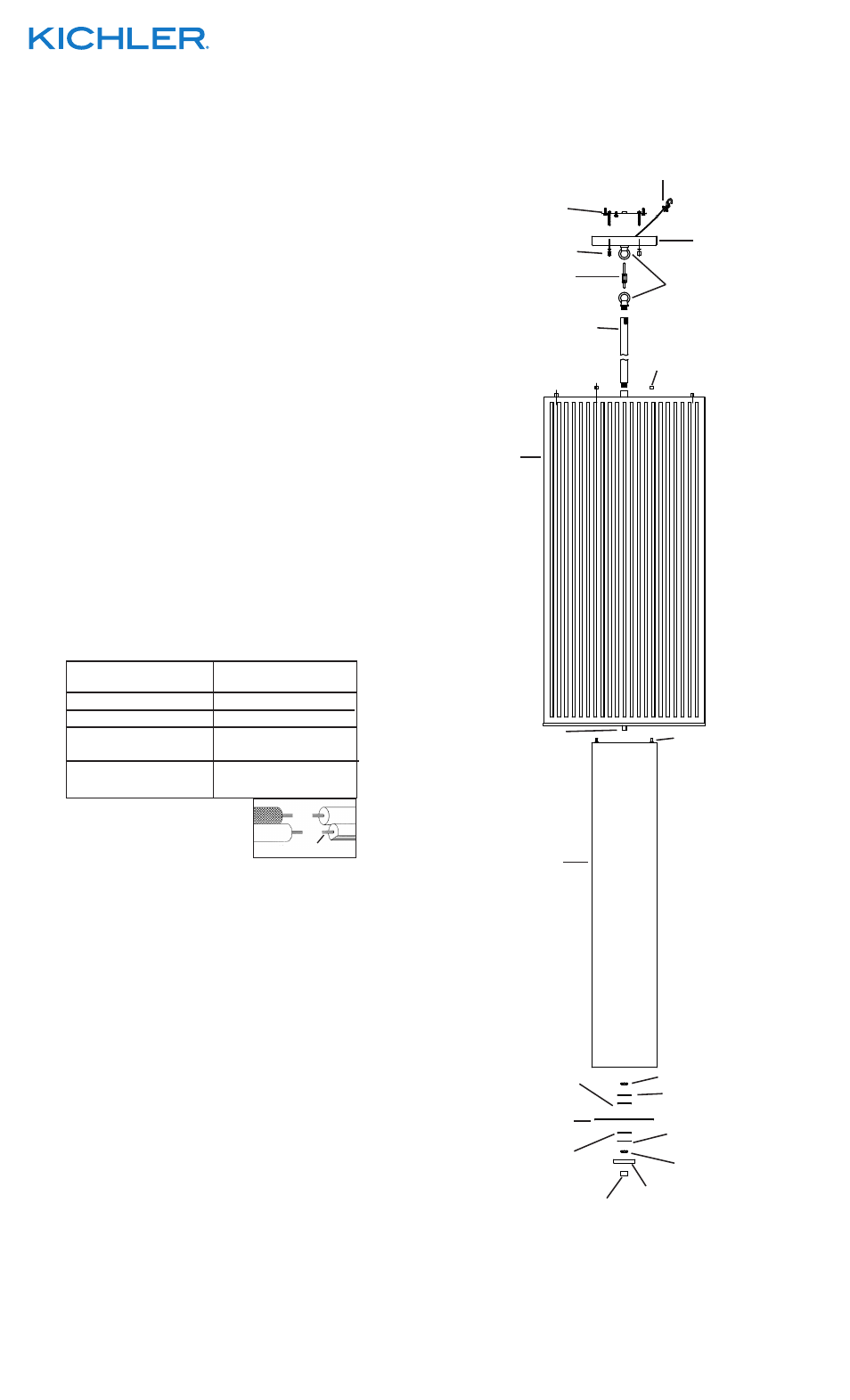

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

MOUNTING STRAP

PATTE DE FIXATION

CANOPY

CACHE

KNURL KNOB

BOUTON MOLETÉ

SMALL LOOP

PETITE BOUCLE

STEM

TIGE

CHAIN LINK

MAILLON DE LA CHAÎNE
