Kichler 43180 - Manuel

1) Set short tube over end of long threaded pipe on top of fixture body.
2) Screw loop onto threaded pipe on top of fixture body.
3) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work without
shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your home. Place
the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker switch(s),
that control the power to the fixture or room that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture to be
replaced has a switch or pull chain, place those in the “OFF”
position.
4) Take threaded pipe from parts bag and screw in screw collar loop a
minimum of 6 mm (1/4”). Lock into place with hexnut.
5) Run another hexnut down threaded pipe almost touching first hexnut.
Now screw threaded pipe into mounting strap. Mounting strap must be
positioned with extruded thread faced into outlet box. Threaded pipe
must protrude out the back of mounting strap. Screw third hexnut onto
end of threaded pipe protruding from back of mounting strap.
6) Connect mounting strap to outlet box.
7) Unscrew the threaded ring from screw collar loop. Take canopy and
pass over screw collar loop. Approximately one half of the screw collar
loop exterior threads should be exposed. Adjust screw collar loop by
turning assembly up or down in mounting strap. Remove canopy.
8) After desired position is found, tighten both top and bottom hexnuts up
against the bottom and top of the mounting strap.
9) Slip canopy over screw collar loop and thread on threaded ring. Attach
chain (with fixture connected) to bottom of screw collar loop. Unscrew
threaded ring, let canopy and threaded ring slip down.
10) Weave electrical wire and ground wire through chain links no more than
3 inches apart. Pass wire through threaded ring, canopy, screw collar
loop, threaded pipe and into outlet box.
11) Connect fixture ground wire to outlet box ground wire with wire connector.
(Not provided.) Never connect ground wire to black or white power
supply wire.
12) Make wire connections (connectors not provided). Reference chart
below for correct connections and wire accordingly.
13) Raise canopy to ceiling.
14) Secure canopy in place by tightening threaded ring onto screw collar
loop.
15) Pass threaded pipe approximately halfway up through hole in bottom of
glass.
16) From inside glass, set rubber washer then flat washer over end of
threaded pipe. Screw hexnut onto threaded pipe.
17) Slip rubber washer then flat washer over end of threaded pipe protruding
from outside of glass.
18) Thread hexnut onto end of threaded pipe.
16) Slip bottom trim over end of threaded pipe.
20) Screw finial onto end of threaded pipe. (DO NOT over tighten.)
21) Slip one rubber washer over end of each ball stud.
22) Raise glass up to fixture. Align holes in glass with holes on ends of
spider.
23) Pass end of ball stud through hole in glass and through hole in spider.
Tighten ball stud to secure glass in place. (DO NOT over tighten.)
Date Issued: 4/27/12 IS-43180-CB
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada

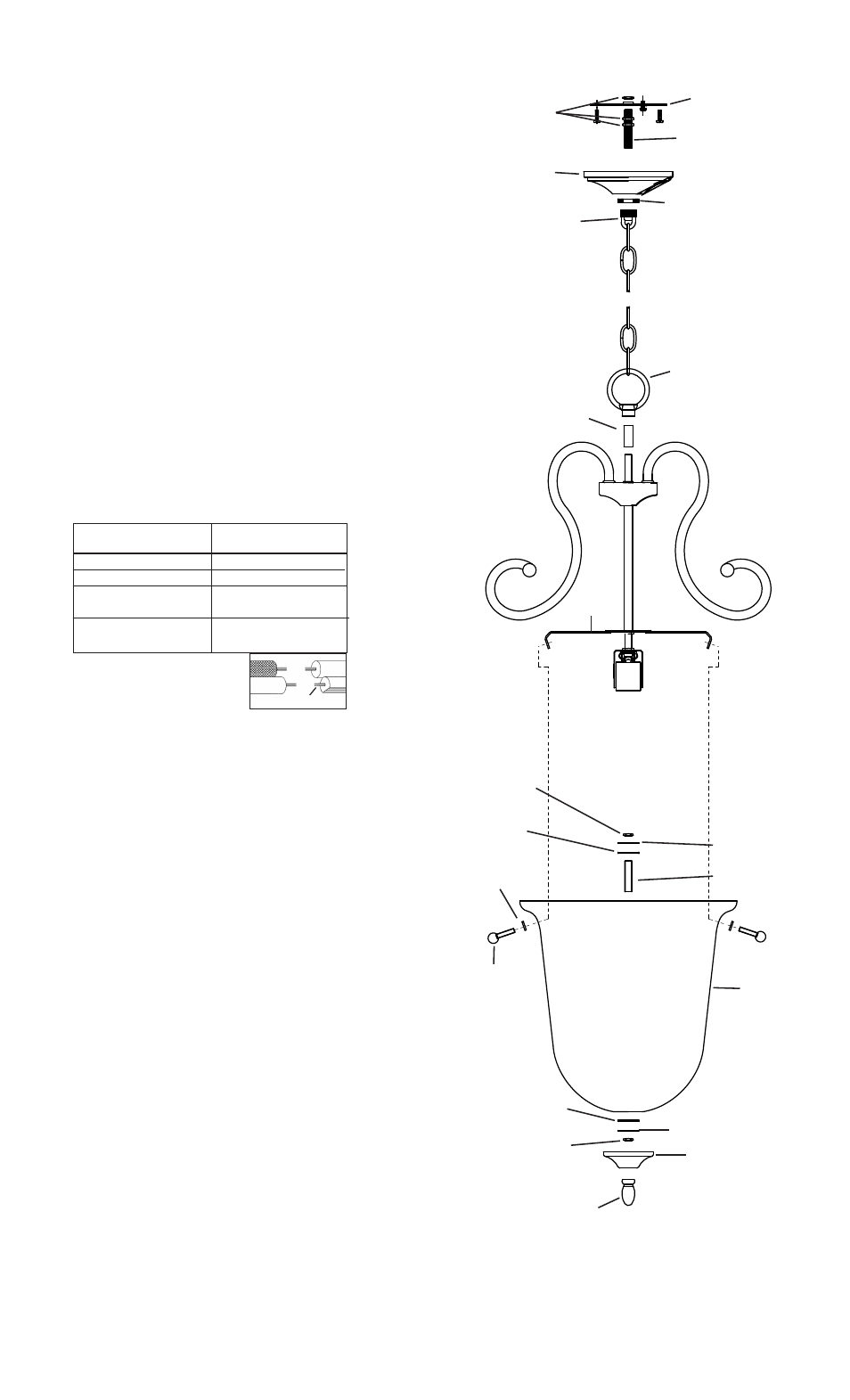

MOUNTING STRAP
PATTE DE FIXATION
HEXNUT
ECROU HEXAGONAL
THREADED PIPE
TUBE FILETÉ
SCREW COLLAR LOOP
COLLIER-ÉCROU
CANOPY
CACHE
THREADED RING
BAGUE FILETÉE
LOOP
BOUCLE
GLASS
VERRE
SHORT TUBE
TUBE COURT
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
FINIAL
ORNEMENT
TRIM
GARNITURE
RUBBER WASHER
RONDELLE CAOUTCHOUTÉE
FLAT WASHER
RONDELLE PLATE
SPIDER
ARAIGNÉE
HEXNUT
ECROU HEXAGONAL
BALL STUD
GOUJON À BILLE
RUBBER WASHER
RONDELLE
CAOUTCHOUTÉE
RUBBER WASHER
RONDELLE
CAOUTCHOUTÉE
FLAT WASHER
RONDELLE PLATE
HEXNUT
ECROU HEXAGONAL
THREADED PIPE
TUBE FILETÉ
