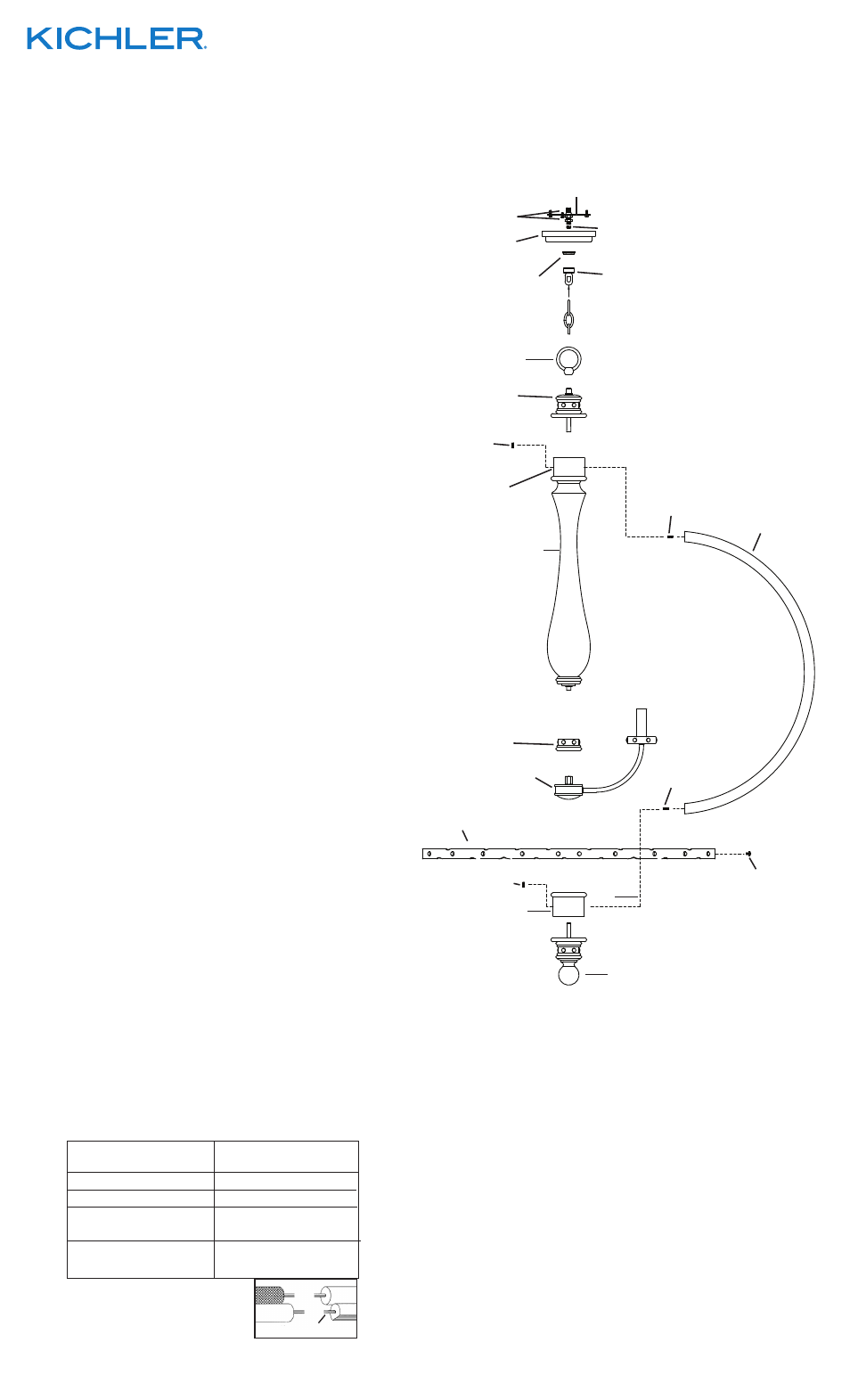

1) Set center trim piece down over coupling on top of fixture
body.
2) Screw threaded pipe on bottom of center column into
coupling.
3) Screw one threaded stud into each end of arm.
4) Pass threaded stud at top of arm through hole in side of cup

on top of center column.

5) From inside top cup screw hexnut onto end of threaded

stud. Do not fully tighten hexnut. This will be done when

assembly of all arms is complete.

6) Pass threaded stud on bottom of arm through hole in side of

bottom cup.

7) From inside bottom cup screw hexnut onto end of threaded

stud. Do not fully tighten hexnut. This will be done when

assembly of all arms is complete.

8) Repeat steps 3-7 for remaining arms.
9) After all arms are assembled, completely tighten each

hexnut to secure arms to fixture.

10) Screw threaded pipe on bottom finial into bottom cup.
11) Screw threaded pipe on top trim down into top cup.
12) Thread loop onto threaded pipe on top of top trim.
13) From bottom of fixture, pass ring up over arms.
14) Align hole in side of ring with hole in center of arm.
15) Thread ball stud into hole in ring and into hole in center of

arm. Do not fully tighten ball stud until ring is attached to

each arm.

16) Repeat steps 11-12 to attach ring to remaining arms.
17) Fully tighten ball studs to secure ring to fixture.
18) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

19) Take threaded pipe from parts bag and screw in screw collar

loop a minimum of 6 mm (1/4”). Lock into place with hexnut.

20) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

21) Connect mounting strap to outlet box.
22) Unscrew the threaded ring from screw collar loop. Take

canopy and pass over screw collar loop. Approximately one

half of the screw collar loop exterior threads should be

exposed. Adjust screw collar loop by turning assembly up or

down in mounting strap. Remove canopy.

23) After desired position is found, tighten both top and bottom

hexnuts up against the bottom and top of the mounting

strap.
24) Slip canopy over screw collar loop and thread on threaded

ring. Attach chain (with fixture connected) to bottom of

screw collar loop. Unscrew threaded ring, let canopy and

threaded ring slip down.

25) Weave electrical wire and ground wire through chain links no

more than 3 inches apart. Pass wire through threaded ring,

canopy, screw collar loop, threaded pipe and into outlet box.

26) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire

to black or white power supply wire.

27) Make wire connections (connectors not provided). Reference

chart below for correct connections and wire accordingly.

Date Issued: 10/4/13

IS-43327-CB

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-

LATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-

DUCTIONS EN FRANÇAIS.

28) Raise canopy to ceiling.
29) Secure canopy in place by tightening threaded ring onto

screw collar loop.
