1) Pass fixture wire from each coupling on top of fixture

through one stem for each side and screw each stem into

each coupling. NOTE: Thread locking compound must be

applied to all stem threads as noted with symbol (3) to

prevent accidental rotation of fixture during cleaning,

relamping, etc.

2) Pass fixture wire through remaining stems and screw stems
together.
3) Thread one small threaded pipe into end of each small loop.
4) Pass fixture wire through first loop. Thread one first loop

onto end of each last stem.

5) Pass fixture wire through second loop and through hole in

canopy. Pass threaded pipe at end of second loop through

hole in canopy.

6) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto end of threaded pipe protruding from

inside canopy.

7) Pass fixture wire through hole in hexnut. Thread hexnut onto

end of threaded pipe.

8) Repeat steps 5-7 to attach last stem to canopy.
9) Attach chain link to small loop at end of each stem and to

each loop on canopy.

10) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

11) Thread hexnut onto threaded pipe so that 5 threads are

exposed above hexnut. Thread that end of threaded pipe

into mounting strap and tighten hexnut against mounting strap.

12) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

13) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire

to black or white power supply wire.

14) Attach mounting strap to outlet box. (Screws not provided)
15) Connect safety cable assembled to canopy to mounting

strap. (This will allow for fixture to be supported while wire

connections are made.)

16) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

17) Push fixture to ceiling, carefully passing threaded pipe

through hole in canopy.

18) Thread finial onto end of threaded pipe. Tighten finial to

secure fixture to ceiling.

19) Lower glass down over socket.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/24/14

IS-43491-CB

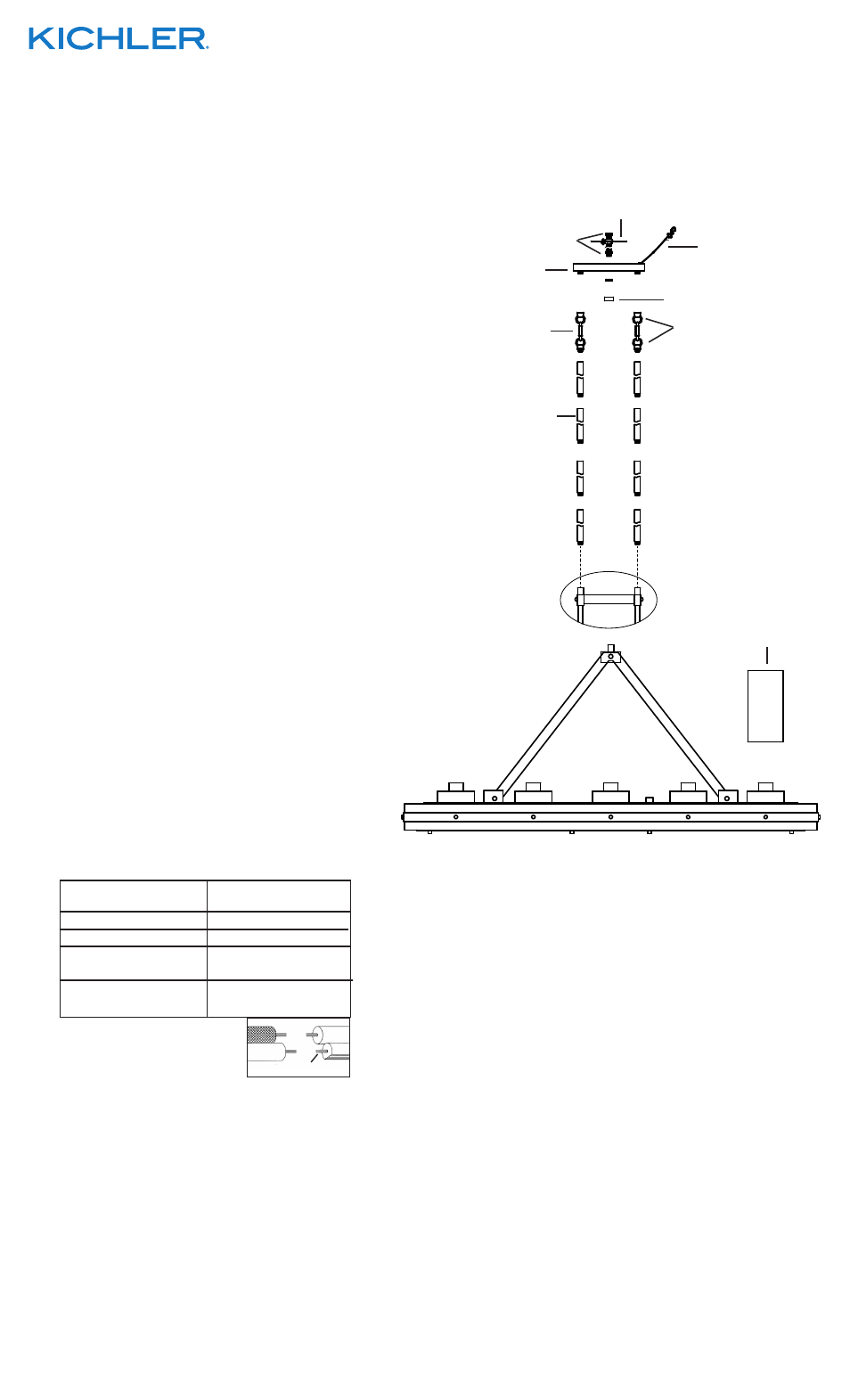

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

MOUNTING STRAP

BRIDE DE MONTAGE

CANOPY

CACHE

FINIAL

ORNEMENT

HEXNUT

ECROU HEXAGONAL

SMALL LOOP

PETITE BOUCLE

STEM

TIGE

CHAIN LINK

MAILLON DE LA

CHAÎNE

GLASS

VERRE
