1) Pass wire from fixture through stems and screw stems into

couplings on top of fixture body.

NOTE: Thread locking compound must be applied to all stem

threads as noted with symbol (3) to prevent accidental

rotation of fixture during cleaning, relamping, etc.

2) Pass fixture wire through remaining stems and screw stems
together.
3) The canopy has one set of loop/chain link/loop pre-installed.

Starting with that loop/chain link/loop, pass fixture wire

through the threaded pipe on the first small loop. Next pass

the fixture wire through the hole in the small loop attached to

canopy and through the hole in the canopy.

4) With the set of loop/chain link/loop not pre-installed, rom the

second set of stems, pass the fixture wire through the hole in

the threaded pipe on the end of one small loop. Thread that

small loop to the end of the last stem.

5) Pass fixture wire through hole in second small loop. Pass

fixture wire through hole in canopy. Pass threaded pipe at end

of second loop through hole in canopy. Thread wing nut onto

end of threaded pipe. Tighten wing nut to secure loop to canopy.

6) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your home.

Place the main power switch in the “OFF” position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room that

you are working on.

c) Place the wall switch in the “OFF” position. If the fixture to

be replaced has a switch or pull chain, place those in the

“OFF”

position.

7) Thread hexnut onto threaded pipe so that 5 threads are

exposed above hexnut. Thread that end of threaded pipe

into mounting strap and tighten hexnut against mounting strap.

8) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

9) Attach mounting strap to outlet box. (Screws not provided.)

10) Attach safety cable to slot in mounting strap.

11) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire to

black or white power supply wire.

12) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

13) Push fixture to ceiling, carefully passing threaded pipe through

hole in canopy.

14) Thread hexnut onto end of threaded pipe protruding from

canopy. Tighten hexnut up against canopy.

15) Thread finial onto end of threaded pipe. (DO NOT over tighten.)
16) Set glass down over sockets.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

IS-43191-CB

Date Issued: 7/25/14

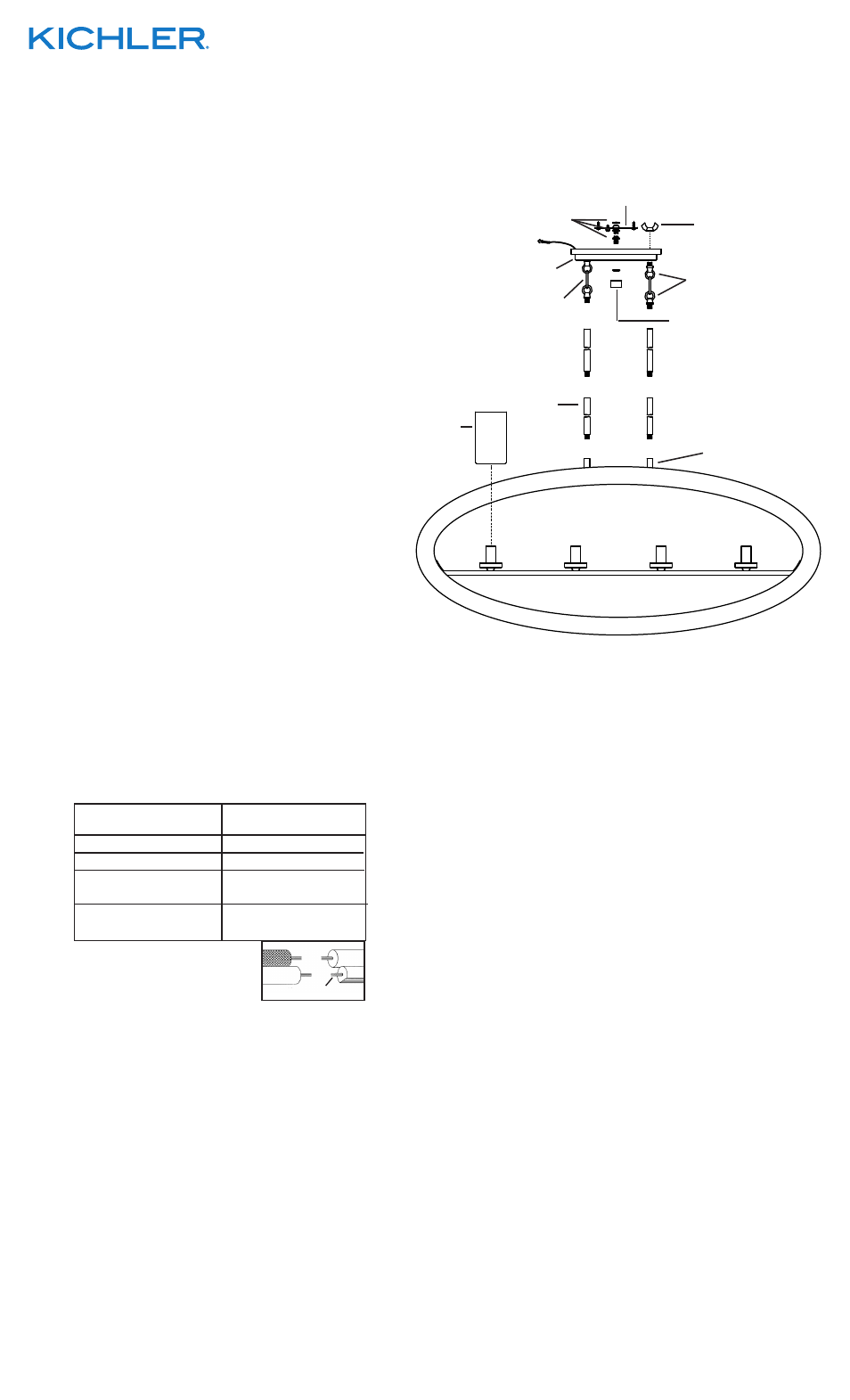

MOUNTING STRAP

SUPPORT DE MONTAGE

CANOPY

CACHE

STEM

TIGE

HEXNUT

ECROU HEXAGONAL

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

FINIAL

ORNEMENT

COUPLING

ACCOUPLEMENT

SAFETY CABLE

CÂBLE DE SÉCURITÉ

GLASS

VERRE

WING NUT

ÉCROU À AILETTES
