CHAIN DROP INSTALLATION INSTRUCTIONS
1) Place bottom end of corner rod on top of corner of bottom
ring. Align hole in end of corner rod with hole in bottom of
ring.
2) Lower long threaded pipe down through hole in end of
corner rod and through hole in bottom ring.
3) Thread finial onto end of threaded pipe protruding from
bottom of ring. Tighten finial to secure rod in place. NOTE:
Sides of rod should be square with sides of bottom ring.
4) Repeat steps 1 - 3 for remaining corner rods.
5) Place top ring on top of corner rods passing holes in
corners of top ring over ends of threaded pipes protruding
from tops of corner rods.
6) Lower arm down onto top ring. Pass hole in tab on end of
arm over threaded pipe protruding from top of ring.
7) Thread finial onto end of threaded pipe protruding from top
of ring.
8) Repeat steps 5-7 for remaining arms.
9) Pass wire from center stem on fixture body through hole in
bottom of top trim piece and up through loop on top trim
piece.
10) Screw top trim piece onto top of center stem.
11) Align hole in top of arm with hole on side of sphere on top
trim.
12) Thread ball stud into hole in arm and into hole in side of
sphere. Tighten ball stud to secure arm in place.
13) Repeat steps 11 and 12 for remaining arms.
14) After arms are attached to sphere, completely tighten finials
on bottom of arms to secure arms in place.
15) Pass threaded pipe on end of small loop through hole in
canopy.
16) Pass hole in lockwasher over end of threaded pipe protruding
from inside canopy. Thread hexnut onto end of threaded
pipe. Tighten hexnut to secure canopy to fixture.
17) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
18) Find the appropriate threaded holes on mounting strap.
Assemble mounting screws into threaded holes.
19) Attach mounting strap to outlet box. (Screws not provided)
Mounting strap can be adjusted to suit position of fixture.
20) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
21) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy.
22) Thread knurl knobs onto mounting screws. Tighten knurl
knobs to secure fixture to ceiling.
SEMI FLUSH INSTALLATION INSTRUCTIONS
1) Remove loop from top trim piece.
2) Follow step #1-10 in Chain Drop Installation Instructions.
11) Pass hole in canopy down over end of threaded pipe on top
trim. Set canopy on top of top trim piece.
12) Pass hole in lockwasher over end of threaded pipe protruding
from inside canopy. Thread hexnut onto end of threaded
pipe. Tighten hexnut to secure canopy to fixture.
13) Follow step #17-22 in Chain Drop Installation Instructions.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 11/8/13 IS-42565-CB
MOUNTING STRAP
COLLIER DE FIXATION
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
CANOPY
CACHE
KNURL KNOB
BOULE
LOOP
ANNEAU
MOUNTING STRAP
COLLIER DE FIXATION
HEXNUT
ECROU HEXAGONAL LOCKWASHER
RONDELLE DE BLOCAGE
CANOPY
CACHE KNURL KNOB
BOULE
LOOP
ANNEAU
FINIAL
ORNEMENT
ARM
BRAS
FIXTURE BODY
LUMINAIRE
TOP TRIM
GARNITURE
SUPÉRIEURE
FINIAL
ORNEMENT
BALL STUD
GOUJON À BILLE
TOP RING
ANNEAU SUPÉRIEUR
CORNER ROD
TIGE EN COIN
BOTTOM RING
ANNEAU INFÉRIEUR
TAB
ONGLET

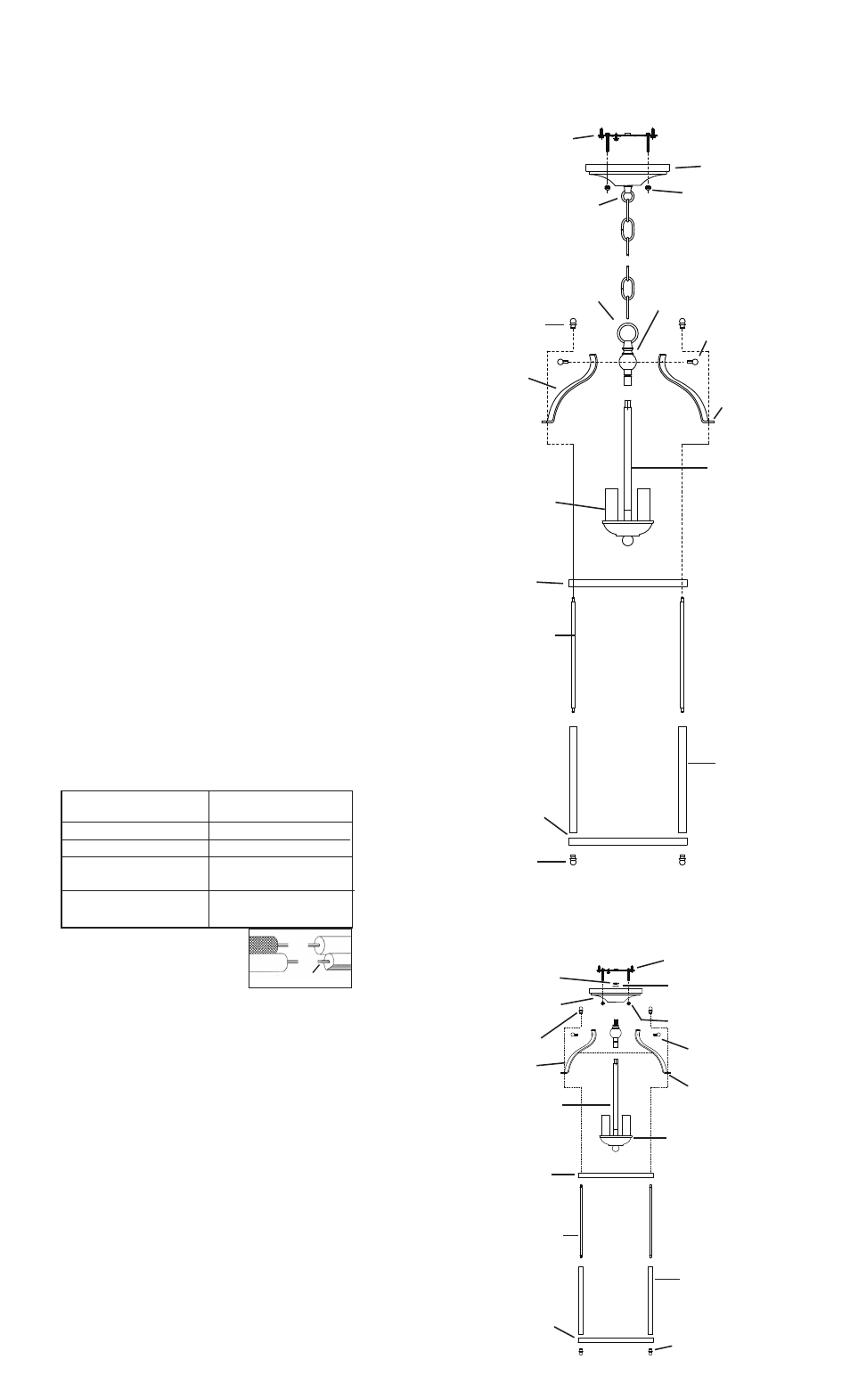

CHAIN DROP INSTALLATION
INSTALLATION EN CHUTE DE CHAÎNE
SEMI FLUSH INSTALLATION
INSTALLATION SEMI-ENCASTRÉE
ARM
BRAS
FINIAL
ORNEMENT BALL STUD
GOUJON À BILLE
TAB
ONGLET
FINIAL
ORNEMENT
FIXTURE BODY
LUMINAIRE
TOP RING
ANNEAU SUPÉRIEUR
CORNER ROD
TIGE EN COIN
BOTTOM RING
ANNEAU INFÉRIEUR
CENTER STEM
TIGE CENTRALE
CENTER STEM
TIGE CENTRALE
LONG THREADED PIPE
LONG TUBE FILETÉ
LONG THREADED PIPE
LONG TUBE FILETÉ
