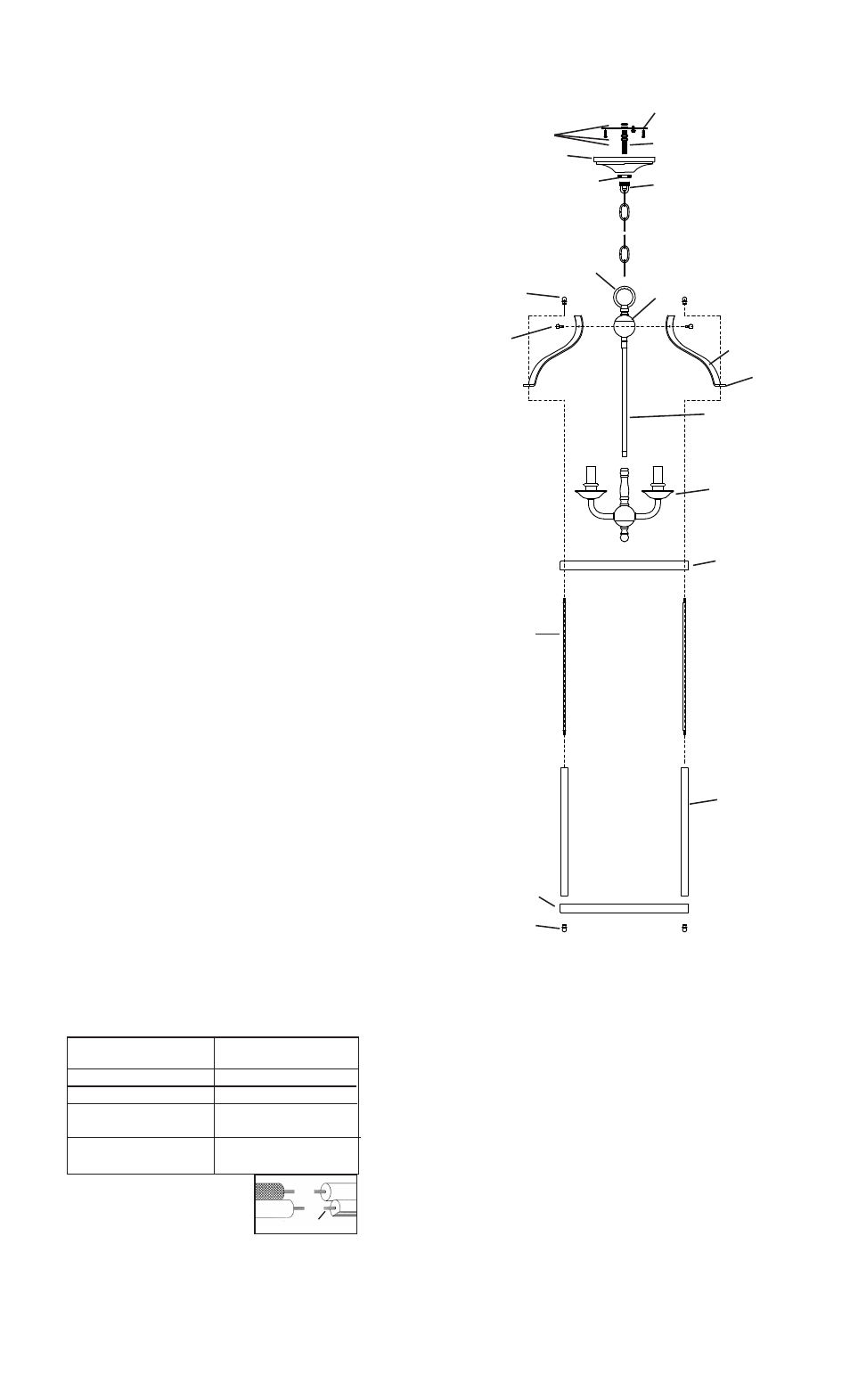

1) Place bottom end of corner rod on top of corner of bottom
ring. Align hole in end of corner rod with hole in bottom of
ring.
2) Lower long threaded pipe down through hole in corner rod
and through hole in bottom ring.
3) Thread onto end of threaded pipe protruding from bottom of
ring. Tighten finial to secure rod in place. NOTE: Sides of rod
should be square with sides of bottom ring.
4) Repeat steps 1 - 3 for remaining corner rods.
5) Place top ring on top of corner rods passing holes in
corners of top ring over ends of threaded pipes protruding
from tops of corner rods.
6) Lower arm down onto top ring. Pass hole in tab on end of
arm over threaded pipe protruding from top of ring.
7) Thread finial onto end of threaded pipe protruding from top
of ring.
8) Repeat steps 5-7 for remaining arms.
9) Pass wire from fixture body through center stem.
10) Screw center stem into hole in top of fixture body.
11) Align hole in top of arm with hole on side of sphere.
12) Thread ball stud into hole in arm and into hole in side of
sphere. Tighten ball stud to secure arm in place.
13) Repeat steps 11 and 12 for remaining arms.
14) After arms are attached to sphere, completely tighten finials
on bottom of arms to secure arms in place.
15) Thread loop onto threaded pipe protruding from top trim.
16) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF”
position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
17) Take threaded pipe from parts bag and screw in screw collar
loop a minimum of 6 mm (1/4”). Lock into place with hexnut.
18) Run another hexnut down threaded pipe almost touching
first hexnut. Now screw threaded pipe into mounting strap.
Mounting strap must be positioned with extruded thread
faced into outlet box. Threaded pipe must protrude out the
back of mounting strap. Screw third hexnut onto end of
threaded pipe protruding from back of mounting strap.
19) Connect mounting strap to outlet box.
20) Unscrew the threaded ring from screw collar loop. Take
canopy and pass over screw collar loop. Approximately one
half of the screw collar loop exterior threads should be
exposed. Adjust screw collar loop by turning assembly up or
down in mounting strap. Remove canopy.
21) After desired position is found, tighten both top and bottom
hexnuts up against the bottom and top of the mounting
strap.
22) Slip canopy over screw collar loop and thread on threaded
ring. Attach chain (with fixture connected) to bottom of
screw collar loop. Unscrew threaded ring, let canopy and
threaded ring slip down.
23) Weave electrical wire and ground wire through chain links no
more than 3 inches apart. Pass wire through threaded ring,
canopy, screw collar loop, threaded pipe and into outlet box.
24) Connect fixture ground wire to outlet box ground wire with
wire connector. (Not provided.) Never connect ground wire
to black or white power supply wire.
25) Make wire connections (connectors not provided). Reference
chart below for correct connections and wire accordingly.
26) Raise canopy to ceiling.
27) Secure canopy in place by tightening threaded ring onto
screw collar loop.
Date Issued: 11/8/13 IS-42566-CB
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
MOUNTING STRAP
PATTE DE FIXATION
HEXNUT
ECROU HEXAGONAL
THREADED PIPE
TUBE FILETÉ
SCREW COLLAR LOOP
COLLIER-ÉCROU
CANOPY
CACHE
THREADED RING
BAGUE FILETÉE
LOOP
ANNEAU
FINIAL
ORNEMENT
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
ARM
BRAS
FIXTURE BODY
LUMINAIRE
SPHERE
SPHÈRE
FINIAL
ORNEMENT
BALL STUD
GOUJON À BILLE
CENTER STEM
TIGE CENTRALE
TOP RING
ANNEAU
SUPÉRIEUR
CORNER ROD
TIGE EN COIN
BOTTOM RING
ANNEAU INFÉRIEUR
TAB
ONGLET
LONG THREADED PIPE
LONG TUBE FILETÉ
