FOR INSTALLATION IN CONCRETE
POUR L’INSTALLATION EN BÉTON
SOIL
TERRE
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the National Electric
Code (NEC) and Local code specifications. Failure to adhere to these codes
and instructions may result in serious injury and/or property damage and will
void the warranty.
FOR USE WITH LANDSCAPE LIGHTING SYSTEMS ONLY.
1) The device is accepted as a component of a landscape lighting system where the
suitability of the CSA or UL labeled combination shall be determined by CSA, UL
respectively or the local inspection authorities having jurisdiction.
2) Fixture shall be connected to an extra low voltage transformer approved for use with
landscape lighting systems.
3) This fixture is to be connected to a secondary wiring of the following type:
12 GA 60°C minimum type;
SPT-3 suitable for outdoor use; or
approved landscape lighting cable.
WARNING – RISK OF ELECTRIC SHOCK
• Do not mount luminaire within 10 feet (3m) of a swimming pool, spa or fountain.
• This fixture is to be used only with a Kichler® low voltage lighting power unit
(transformer) rated a maximum 15 volts, 300 W per secondary (25 AMPS)
NOTE: Kit with In-Ground LED Fixture walk-over and drive-over rated for a
4500lb car or truck.
NOTE: If additional Direct Burial wire is needed, contact your local Kichler®
landscape distributor.
• 8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.
• 10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.
• 12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M),
15502-BK; 500’ (152M), 15505-BK; and 1000’ (304 M), 15506-BK.
POUR KIT INSTALLATION
1. TURN OFF POWER
2. Insert the steel rods into the through holes of the housing. The rods should
protrude equally on the kit through both sides.
3. Determine desired location of kit and dig hole. Hole should be 9” (diameter)
with a depth appropriate for top of kit (including cover) to be flush with
finished grade. It is recommended that sand or pea gravel is used to set
housing and aid positioning. Leave approximately 6” of loose lead wire
from transformer inside housing.
4. Secure the cover onto the housing and pour a minimum 4” of concrete,
ensuring grade is flush with kit. Let cure. Do not remove cover until just
before installing the fixture to prevent sediment from collecting.
LUMINAIRE ASSEMBLY AND INSTALLATION
1. Remove threaded steak by removing the two (2) screws on bottom of the
fixture. Discard.
2. Using a flat-headed screw driver, remove and discard cover and wipe away
any sediment that has gathered on inner ring of the housing.
3. Before placing fixture into housing, make wire connections using supplied
Kichler
® Pro Series Wire Connectors following the instructions included, or
using other approved wiring connection method (not supplied.) The fixture
wire is not intended for direct burial. According to the requirements of the
National Electric Code (NEC), direct burial rated wire is to be buried a
minimum of 6” [152mm] beneath the surface of the ground.
4. Install fixture, making sure fixture is completely nested in housing.
5. To aim the beam: Remove the glass sealant ring by removing the six (6)
screws on top of the fixture. Loosen the screws on the sphere retaining ring
until the sphere becomes unfixed. Aim the beam as desired. (up to 15°)
Re-tighten the screws on the sphere retaining ring until the sphere is secure
and does not rotate. Clean sealing surface, and replace glass, gasket, and
glass sealing ring. Install and torque screws to 20 ± 2 in/lbs in triangular
pattern, following the numbers screws holes 1-6.
Date Issued: 1/25/13 IS-16501-CB
INSTRUCTIONS FOR THE CONCRETE INSTALLATION KIT
Part No. 16501BBRP
with the In-Ground LED Fixture
Part No. 16030, 16031, 16032, 16033, 16034, 16035, 16036, 16037 and 16038

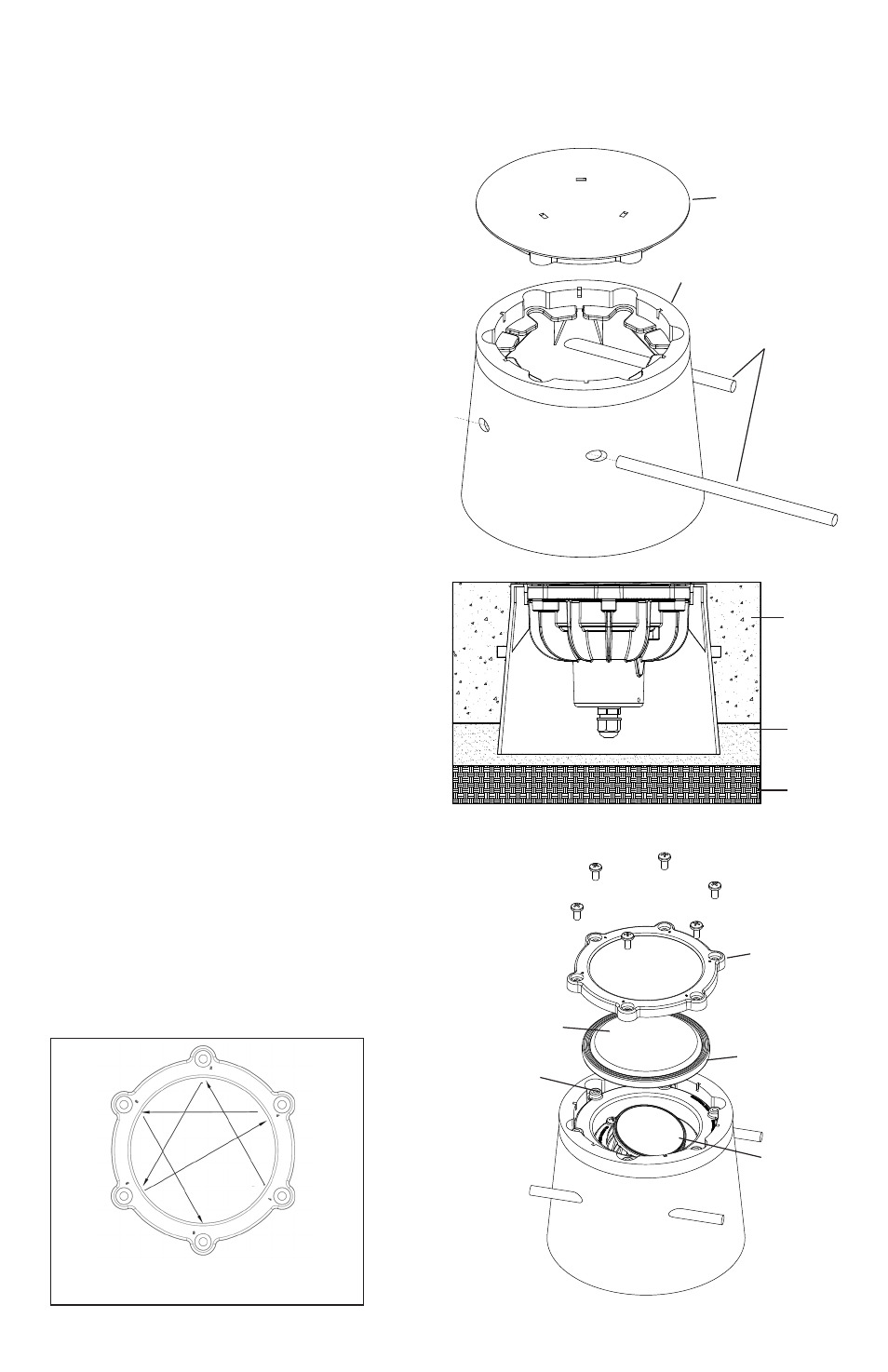

GLASS SEALING RING
ANNEAU D’ÉTANCHÉITÉ
EN VERRE
GLASS
VIDRIO
GASKET JOINT
JOINT D’ÉTANCHÉITÉ
SPHERE
SPHÈRE
SPHERE RETAINING
SCREW
VIS DE RETENUE DE
LA SPHÈRE
COVER
COUVERCLE
HOUSING
BOÎTIER
START
INICIO
TIGHTEN SCREWS IN TRIANGULAR PATTERN SHOWN ABOVE.
AJUSTE LOS TORNILLOS EN FORMA TRIANGULAR TAL COMO SE
MUESTRA ANTERIORMENTE.
OUTDOOR USE ONLY
DOM ETRE INSTALLE A L’EXTERIEUR
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Pour de plus amples informations sur la garantie, cliquez sur le lien ci-dessous : http://www.landscapelighting.com/portal/warranty_page
STEEL RODS
TIGES EN ACIER
