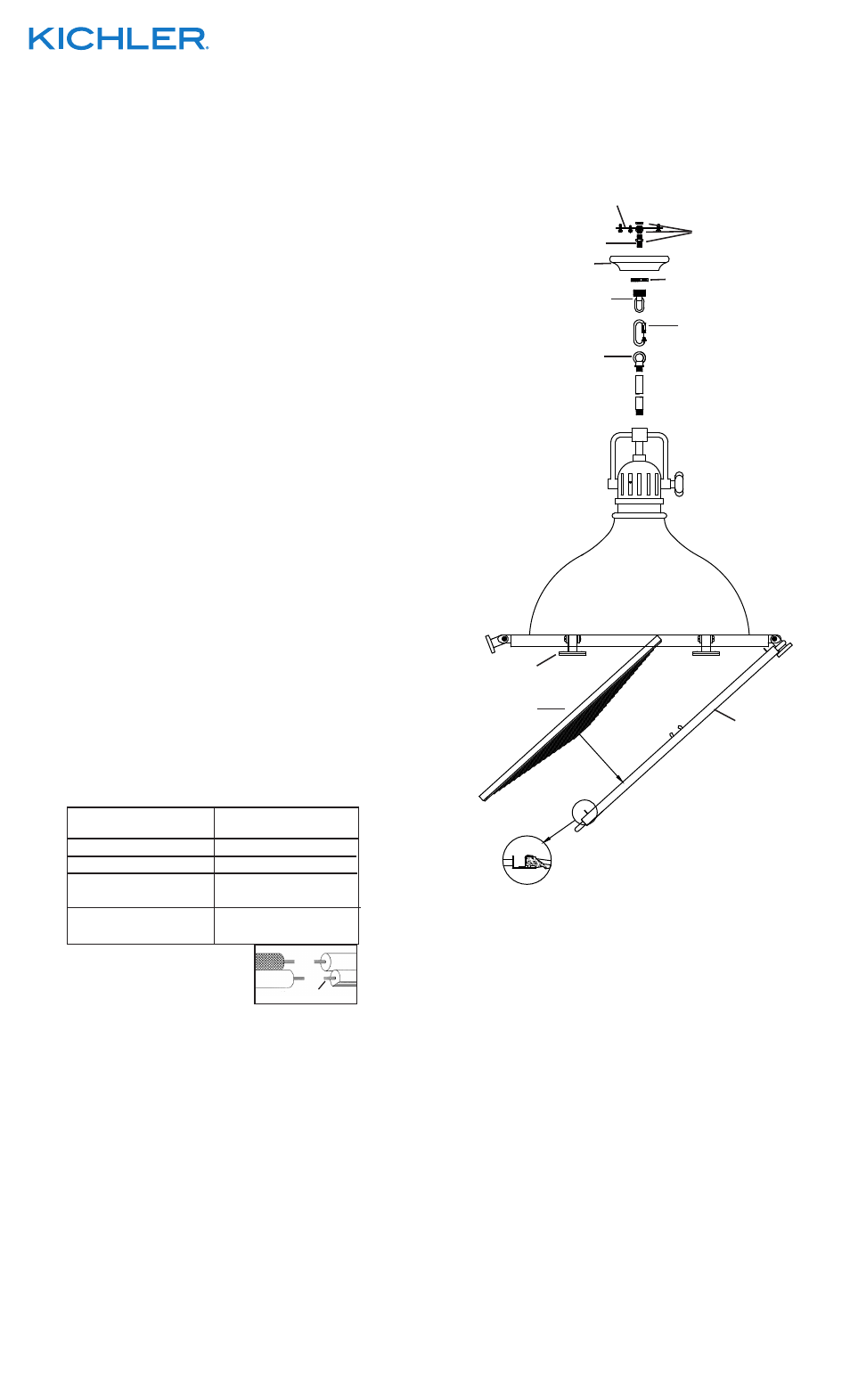

1) Screw center stem to top of fixture body.
2) Pass wire through stem and screw stem to top of center stem.

NOTE: Thread locking compound must be applied to all

stem threads as noted with symbol (3) to prevent accidental

rotation of fixture during cleaning, relamping, etc.

3) Attach small loop to stem.
4) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

5) Take threaded pipe from parts bag and screw in screw collar

loop a minimum of 6 mm (1/4”). Lock into place with hexnut.

6) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

7) Connect mounting strap to outlet box.
8) Unscrew the threaded ring from screw collar loop. Take

canopy and pass over screw collar loop. Approximately one

half of the screw collar loop exterior threads should be

exposed. Adjust screw collar loop by turning assembly up or

down in mounting strap. Remove canopy.

9) After desired position is found, tighten both top and bottom

hexnuts up against the bottom and top of the mounting

strap.
10) Slip canopy over screw collar loop and thread on threaded

ring. Attach chain (with fixture connected) to bottom of

screw collar loop. Unscrew threaded ring, let canopy and

threaded ring slip down.

11) Weave electrical wire and ground wire through chain links no

more than 3 inches apart. Pass wire through threaded ring,

canopy, screw collar loop, threaded pipe and into outlet box.

12) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire

to black or white power supply wire.

13) Make wire connections (connectors not provided). Reference

chart below for correct connections and wire accordingly.

14) Raise canopy to ceiling.
15) Secure canopy in place by tightening threaded ring onto

screw collar loop.

16) Insert recommended bulb.
17) Ring is permanently hinged on one side. Flip remaining

hinges up.

18) Carefully set glass lens inside ring.
19) Raise ring with glass lens up to fixture. Fit ring up against

bottom of fixture.

20) Flip each hinge down over edge of ring.

Date Issued: 12/6/13

IS-2691-CB

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.

MOUNTING STRAP

PATTE DE FIXATION

HEXNUT

ECROU HEXAGONAL

THREADED PIPE

TUBE FILETÉ

SCREW COLLAR LOOP

COLLIER-ÉCROU

CANOPY

CACHE

THREADED RING

BAGUE FILETÉE

LOOP

BOUCLE
