INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO
PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when turning on.
3) Do not touch hot lens or cowl.
4) Do not remain in light if skin feels warm. (Light is intense, it may cause
“sunburn”.)
5) Do not look directly at lighted lamp.
6) Keep lamp away from materials that may burn.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time. Use a soft cloth.
Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
FOR USE WITH LANDSCAPE LIGHTING SYSTEMS ONLY.
1) The device is accepted as a component of a landscape lighting system
where the suitability of the CSA or UL labeled combination shall be deter
mined by CSA, UL respectively or the local inspection authorities having
jurisdiction.
2) Fixture shall be connected to an extra low voltage transformer approved
for use with landscape lighting systems.
3) This fixture is to be connected to a secondary wiring of the following type:
12 GA 60°C minimum type;
SPT-3 suitable for outdoor use; or
approved landscape lighting cable.
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE),
CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES,
GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT
BULB, LENS, OR BODY OF THE FIXTURE.
1) Well fixture can be installed two different ways.
A) If fixture is to be used for direct uplighting, dig hole in soil 15” deep.
B) If fixture is to be used for wall washing, dig hole in soil 9-1/2” deep. These
dimensions will make hole large enough to accommodate sleeve plus 6”
of pea gravel. To insure proper drainage, fill bottom of hole with 6” of
pea gravel.
2) For direct uplighting set sleeve in deep hole with angled end down. For
wall washing set sleeve in shallow hole with angled end up.
3) Assemble rubber clips to yoke with groove at top facing center.
NOTE: One clip should always be assembled at back of yoke (where hook
is) then equally space the remaining two.
4) Connect wires to contacts on back of bulb and snap bulb into rubber clips.
5) Guide wire through bottom of sleeve and up along the outside of sleeve.
Set yoke into sleeve adjusting as needed.
(NOTE: Hook on yoke has a short side and a long side, use short side with
yoke flat across the top for uplighting. Use long side with yoke angled for
wall washing purposes.
6) Fill gaps surrounding sleeve with soil.
7) Make wire connection to main low voltage supply wire.
Date Issued: 12/2/11 IS-15088-CB
OUTDOOR USE ONLY
DOM ETRE INSTALLE A L’EXTERIEUR
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Pour de plus amples informations sur la garantie, cliquez sur le lien ci-dessous : http://www.landscapelighting.com/portal/warranty_page
QUIC DISC ™ WIRING INSTRUCTIONS
Turn off power.
The full length of the 18 GA fixture wire may be used to connect with the 10 GA or 12 GA cable provided the following conditions are met:
• Wiring is to be protected by routing close to the fixture or accessory or secured to a building structure such as house or deck.
• 18 GA fixture wiring is to be cut off so that it is attached to the connector within 6 inches of the fixture or building structure.
• If it is necessary to make the connections underground, then no more than 6 inches of the 18 GA fixture wire is to be buried.
The Quic Disc ™ connector is designed to install one fixture and accommodates one 18 GA fixture wire and one 10 GA or one 12 GA supply wire.
Place the 10 gauge supply wire across the area marked 10 GA on Quic Disc ™ or place the 12 gauge supply wire across the area marked 12 GA
on Quic Disc ™ .
Place the 18 gauge fixture wire across the area marked 18 GA on the Quic Disc ™ . After the wires are in place, connecta the top of the Quic
Disc ™ to the base with supplied screw, making sure that the wires remain flat in the bottom portion of the Quic Disc ™ , and the screw is tightened
all the way down.
The copper contacts will automatically pierce the wires’ insulation. Excess 18 GA fixture wire that sticks out the end of the Quic Disc ™ is to be cut off.
Make no other wiring connections to the 18 GA fixture wire.

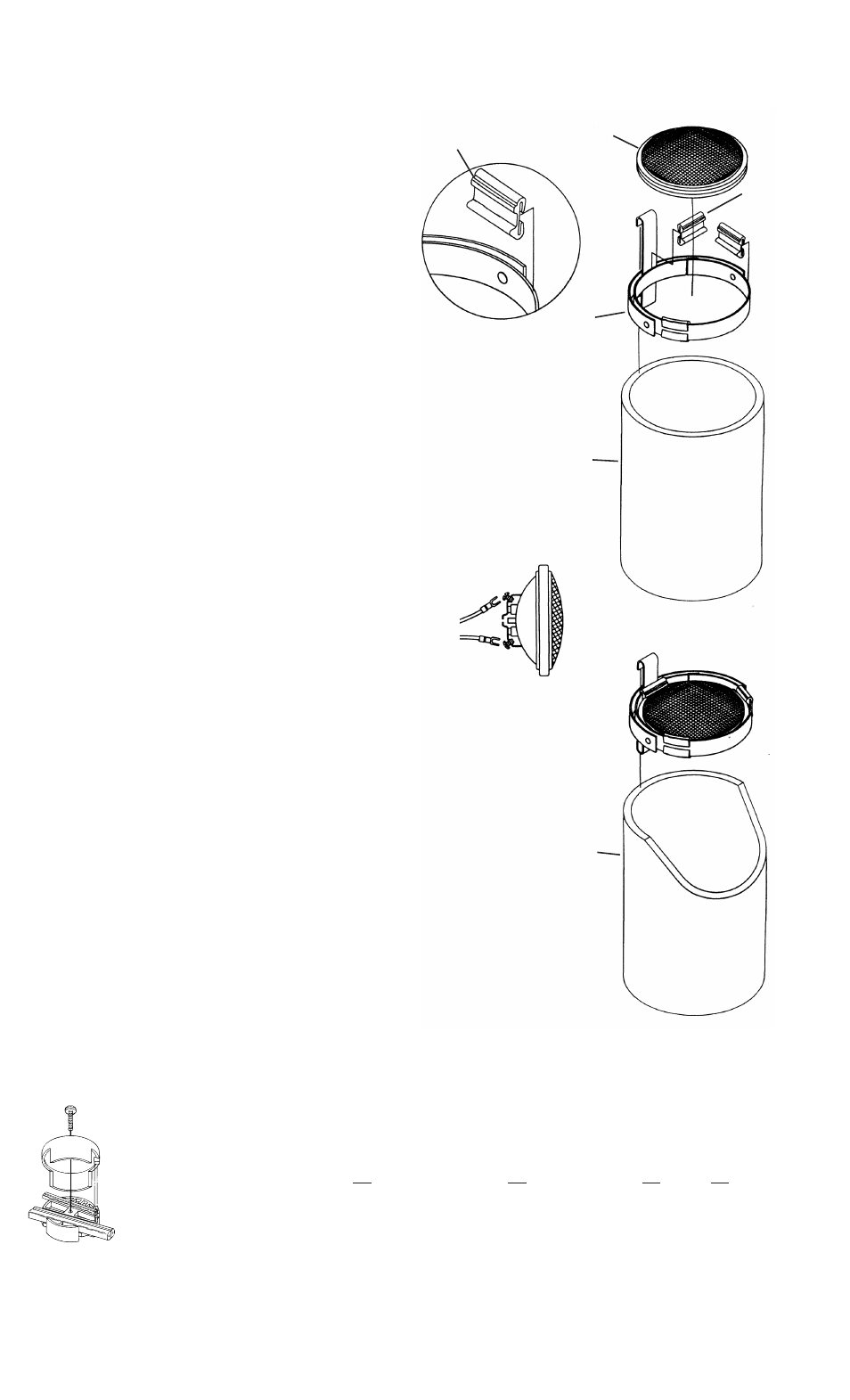

GROOVE
RANURE
BULB
AMPOULE
RUBBER CLIP
ATTACHE EN
CAOUTCHOUC
YOKE
COLLIER
UP-LIGHTNG SLEEVE
MANCHON POUR
ÉCLAIRAGE VERS
LE HAUT
WALL-WASH SLEEVE
MANCHON POUR
PEINTURE MURALE
