INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO
PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when turning on.
3) Do not touch hot lens or cowl.
4) Do not remain in light if skin feels warm. (Light is intense, it may cause
“sunburn”.)
5) Do not look directly at lighted lamp.
6) Keep lamp away from materials that may burn.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time. Use a soft cloth.
Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
FOR USE WITH LANDSCAPE LIGHTING SYSTEMS ONLY.
1) The device is accepted as a component of a landscape lighting system
where the suitability of the CSA or UL labeled combination shall be deter
mined by CSA, UL respectively or the local inspection authorities having
jurisdiction.
2) Fixture shall be connected to an extra low voltage transformer approved
for use with landscape lighting systems.
3) This fixture is to be connected to a secondary wiring of the following type:
12 GA 60°C minimum type;
SPT-3 suitable for outdoor use; or
approved landscape lighting cable.
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE),
CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES,
GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT
BULB, LENS, OR BODY OF THE FIXTURE.

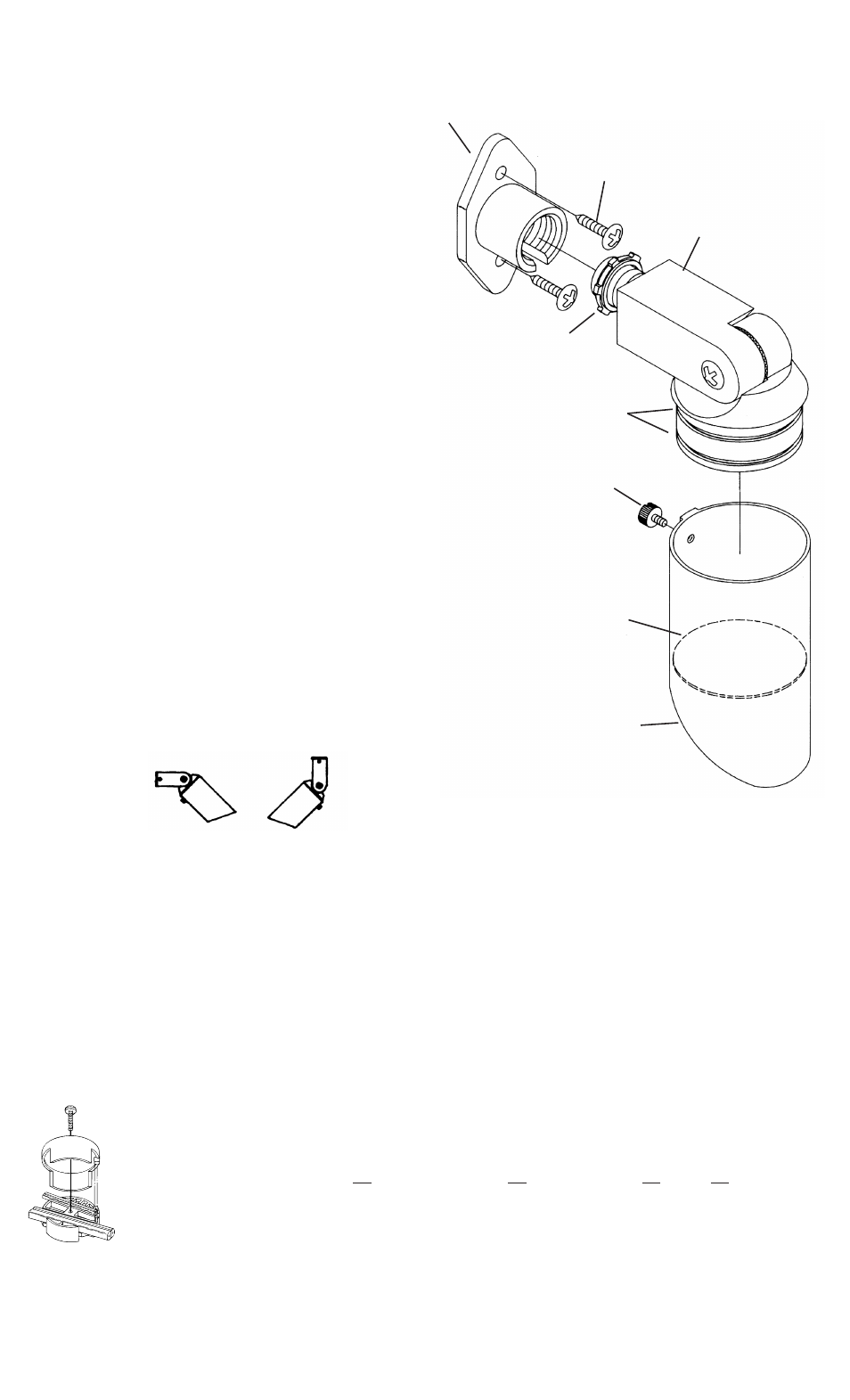

ACCENT LIGHT ASSEMBLY - FIXTURE IS SUITABLE FOR OUTDOOR USE ONLY
NOTE: Cable supplied with fixture is not to be run through wall. Reference
local electrical codes if this type of installation is required.
1) Secure mounting bracket to surface using the stainless steel hanger bolts
provided. (Never use copper or brass screws)
A) When securing mounting bracket to a vertical surface be sure that
slot on mounting bracket is facing downward.
B) When securing mounting bracket to a horizontal surface, arrange
slot in best accessible direction for power supply wire.
NOTE: Direction of accent light must be below horizontal.
2) Thread accent light into mounting bracket making certain that wire is in slot
on mounting bracket. Secure in place with locknut.
3) Apply silicone lubricant (provided) over o-ring(s).
4) Install lamp (not supplied) into socket inside accent light.
NOTE: Use caution when assembling. Hold lamp by outer housing.
DO NOT touch glass envelope inside. If this happens, clean bulb with
denatured alcohol and a lint free cloth.
5) Assemble cowl to accent body. Secure in place using provided thumb screw.
6) Make wire connections using supplied Quic Disc ™ following instructions
below, or using other approved wiring connection method (not supplied.)
Date Issued: 12/2/11 IS-15087-CB
OUTDOOR USE ONLY
DOM ETRE INSTALLE A L’EXTERIEUR
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Pour de plus amples informations sur la garantie, cliquez sur le lien ci-dessous : http://www.landscapelighting.com/portal/warranty_page
QUIC DISC ™ WIRING INSTRUCTIONS
Turn off power.
The full length of the 18 GA fixture wire may be used to connect with the 10 GA or 12 GA cable provided the following conditions are met:
• Wiring is to be protected by routing close to the fixture or accessory or secured to a building structure such as house or deck.
• 18 GA fixture wiring is to be cut off so that it is attached to the connector within 6 inches of the fixture or building structure.
• If it is necessary to make the connections underground, then no more than 6 inches of the 18 GA fixture wire is to be buried.
The Quic Disc ™ connector is designed to install one fixture and accommodates one 18 GA fixture wire and one 10 GA or one 12 GA supply wire.
Place the 10 gauge supply wire across the area marked 10 GA on Quic Disc ™ or place the 12 gauge supply wire across the area marked 12 GA
on Quic Disc ™ .
Place the 18 gauge fixture wire across the area marked 18 GA on the Quic Disc ™ . After the wires are in place, connecta the top of the Quic
Disc ™ to the base with supplied screw, making sure that the wires remain flat in the bottom portion of the Quic Disc ™ , and the screw is tightened
all the way down.
The copper contacts will automatically pierce the wires’ insulation. Excess 18 GA fixture wire that sticks out the end of the Quic Disc ™ is to be cut off.
Make no other wiring connections to the 18 GA fixture wire.
MOUNTING BRACKET
SUPPORT DE FIXATION
STAINLESS STEEL SCREW
VIS EN ACIER INOXYDABLE
LOCKNUT
CONTRE-ECROU
ACCENT BODY
CORPS D’ACCENT
DE L’ECLAIRAGE
O-RING
JOINT TORIQUE
THUMB SCREW
VIS A AILETTES
SCREEN
ECRAN
COWL
CAPOT
CORRECT
BONNE POSITION
