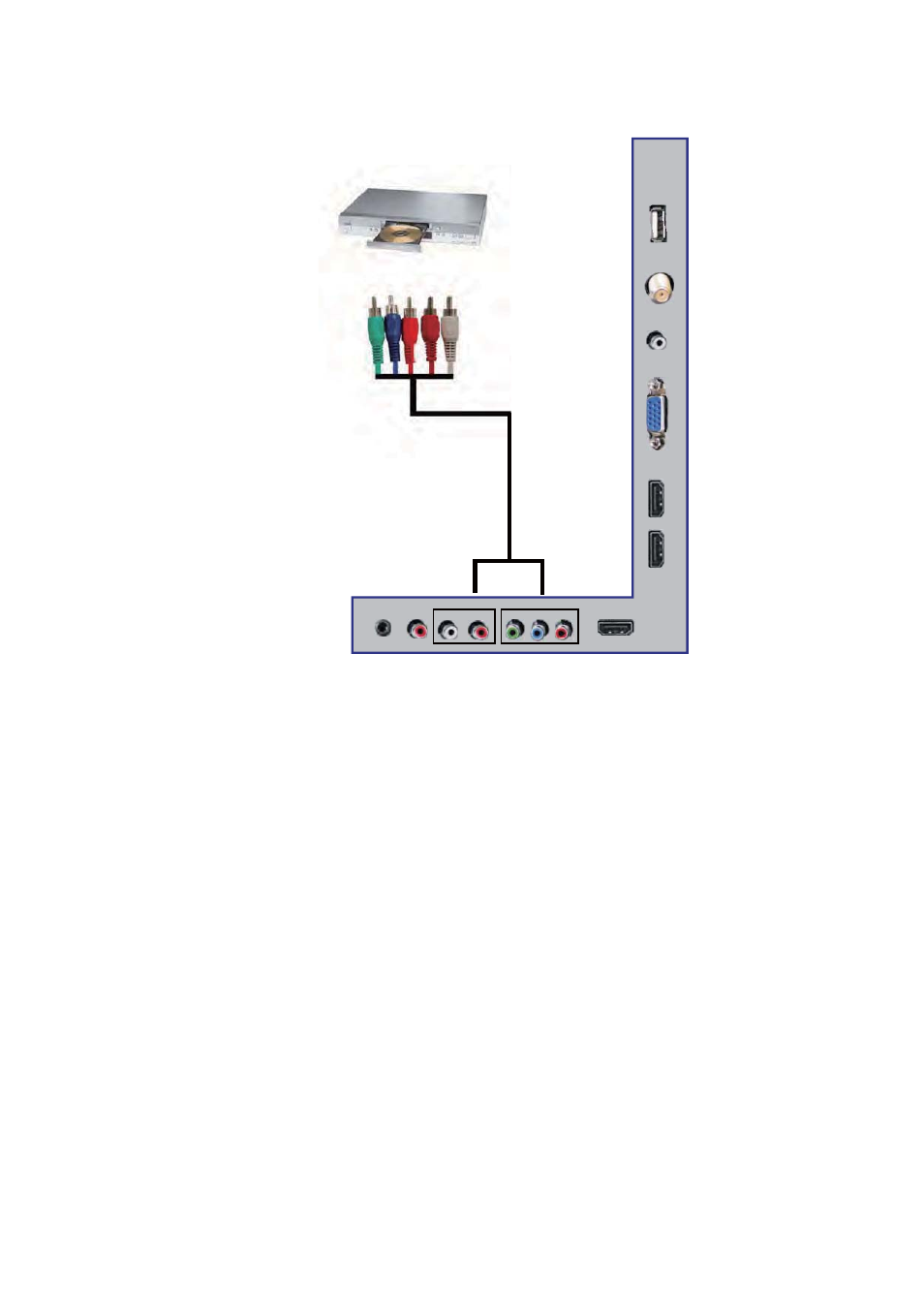

Connecting DVD Player with Component YPbPr…

1. Make sure the power of HDTV and your DVD player is turned off.

2. Obtain a Component Cable. Connect the green color connector to both your DVD

player and YPbPr’s green connector port on the back of your HDTV.

3. Connect the blue color connector to both your DVD player and YPbPr’s blue

connector port on the back of your HDTV.

4. Connect the red color connector to both your DVD player and YPbPr’s red connector

port on the back of your HDTV.

5. Obtain a RCA Audio Cable. Connect the white color connector to both your DVD

player and YPbPr’s white connector port on the back of your HDTV.

6. Connect the red color connector to both your DVD player and YPbPr’s red connector

port on the back of your HDTV.

7. Turn on the HDTV and your DVD player.

8. Use the remote control’s source button or the source button on the TV to switch to

YPbPr.

Please Note :

Sometimes DVD players will not automatically output to YPbPr. You will

need to configure your DVD player with AV connection first then switch to

YPbPr. Please reference the DVD player’s manual, to make sure the DVD

player is configured to output correctly to the TV.

This source shares audio jacks with composite video.
