2 Infrared Thermostat Transmitter with Digital Display - Instructions PPLIMP10314/Bd of 03/03/2011
The IR receiver has a self regulating system that memoris-
es status (on/off) information and temperature settings.
If the transmitter is off, or if the batteries are dead:
• with the ‘Sensor’=Ext setting, the last order received is
used for regulation, even when the transmitter is off or
if the batteries are dead.
• with the ‘Sensor’=Int setting, the receiver will shut off
automatically after 30 minutes maximum.
IMPORTANT: if your receiver is off, your towel radiator
will not receive orders from the IR transmitter with dig-
ital display. Your installation could freeze because the
device is unable to regulate.

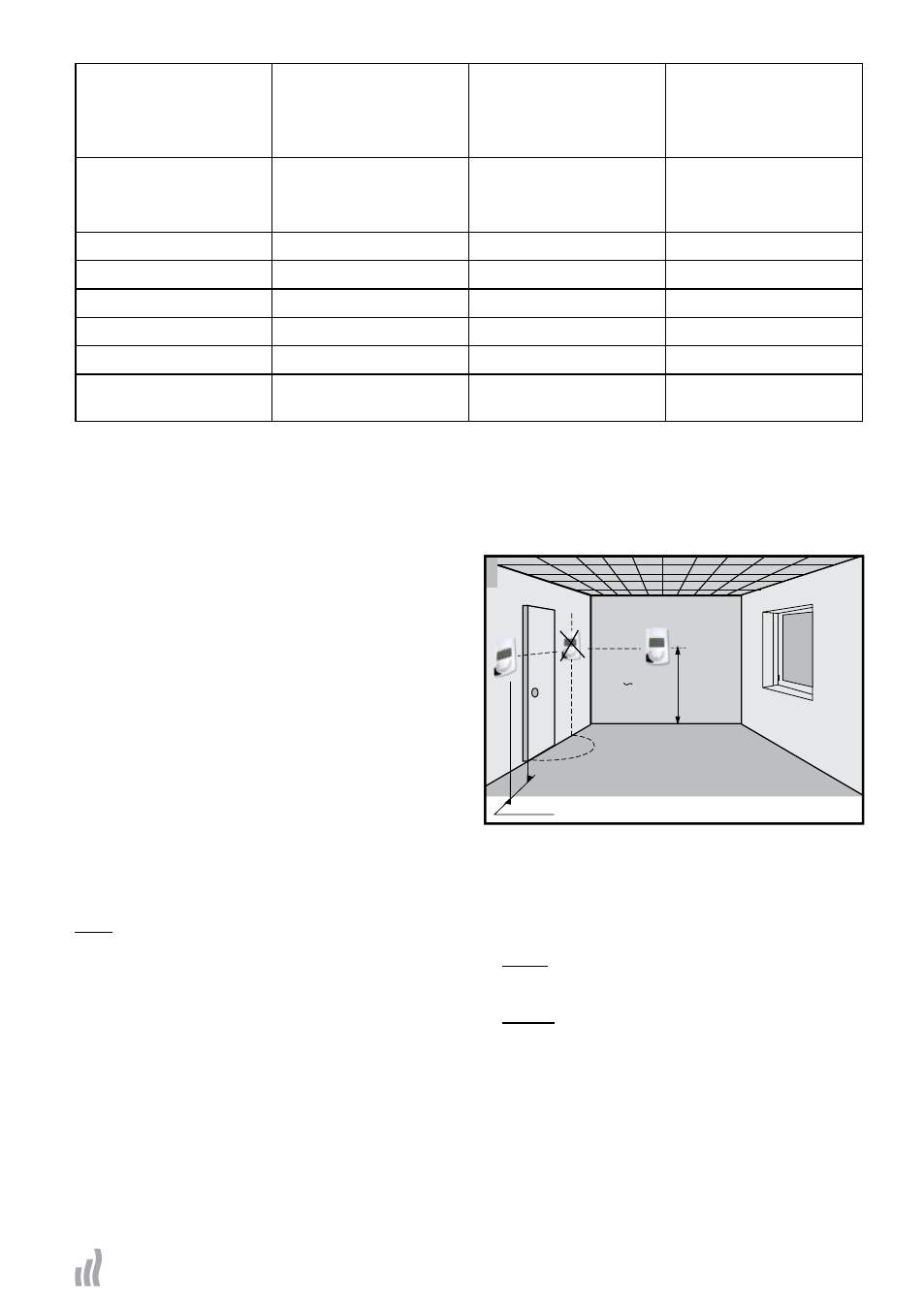

Installing the IR transmitter with
digital display
• Install the IR transmitter with digital display in the
same room as the towel radiator. The transmitter
must be installed about 1.5 meters from the floor on
an interior wall, away from splashing water, direct
sunlight and any disturbance from direct heat such as
lamps, television sets, heating pipes, air flows, etc.
Note: To ensure perfect IR transmission:
• do not allow objects to come between the transmit-
ters and receivers (such as bath towels and bath
sheets).
• avoid using lamps with built-in electronic ballast in
the same room.
Assembly instructions
• Remove the battery protection tabs:
Press the clip on the bottom of the transmitter and
pull the front panel to remove.
• The first step consists of choosing the language with
t u, then press OK.
LANG : Choose the language (FrANçais/English)
• Next, choose Turbo control, if any t u then press
OK:
TURbO: Is the device equipped with a Turbo? (yes/no)
• The third step consists of setting the time
(while display is blinking).
• Using the + and - keys: Set the hours
then press OK.
• Next, using the + and - keys, set the minutes
then press OK.
• Next, using the + and - keys, set the minutes
then press OK.
(1 = Monday, 2 = Tuesday, 3 etc.)
• Next, using the + and - keys: set the day and month
then press OK.
Operating mode
«A»/»F» LED status
radiator paused
«A»/»F» LED status
radiator is heating
«Sensor = EXT» (*)
«A»/»F» LED status
radiator is heating
«Sensor = INT» (*)
Standby
(by pressing the B button on
the receiver)
Off - -
Standby Solid green - -
Comfort Solid green Solid red Flashing red
Reduced Solid green Solid red Flashing red
Frost protection Solid green Solid red Flashing red
Boost - Flashing red Flashing red
Sensor default or
measured T°C > 35°C
Flashing green/red - -
Min 20cm
1.50M
(*) Sensor =EXT => control via the sensor on the receiver installed on the towel radiator
Probe=INT => control via the transmitter sensor
