Approved Built-In Oven and Induction Cooktop Combinations
For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the
bottom of the cooktop burner box.
NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or
left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface
to pass the appliance cable through to the junction box.

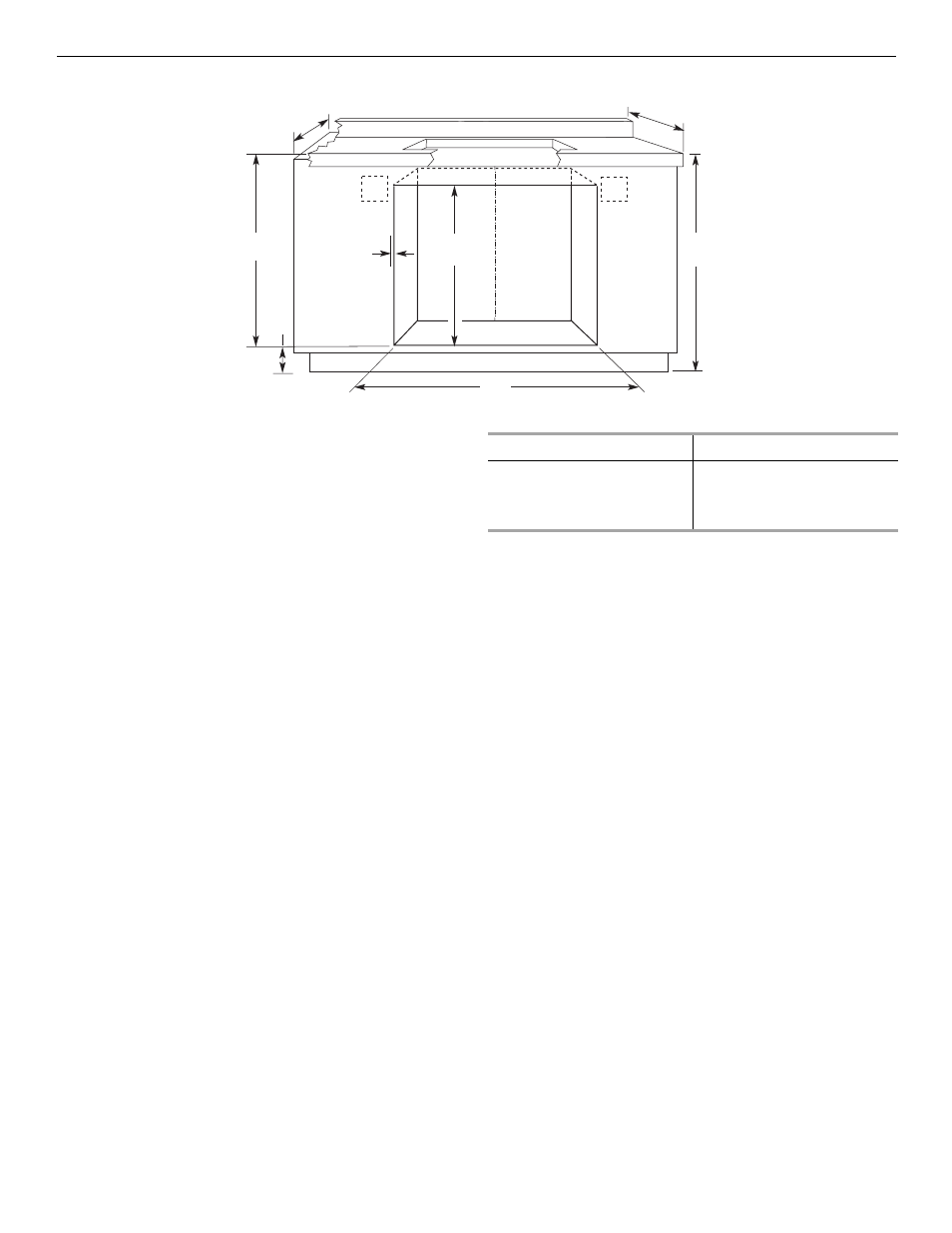

A. 24" (61 cm) cabinet depth
B. 25" (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow
⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
E. 27¾" (70.5 cm) minimum cutout height
F. 36" (91.4 cm) from cabinet base to countertop
G. 3 ⁵⁄₈" (9.2 cm) from cabinet base. If dimension “F” is greater than
36" (91.4 cm), dimension “G” can be increased the same difference
for induction combinations.
H. See Cutout Dimensions chart.
I. 32
³⁄₈
" (82.2 cm) from top of countertop to bottom of cutout
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
24" (61 cm) 22 ¹⁄₂" (57.2 cm)
27" (68.6 cm) 25 ¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
A
E F
G
H
B
C C
D
I
