Legrand 3000 Two-Piece Metal Raceway - Manuel

9.4"
[23.9cm]
2"
[51mm]
1.5"
[38mm]
3000B 630B 630C
3007C
3008C
3000C 3000WC
3001 3001A
3010AE
3010C 3011E
1 2 3
1 2
UNSHIELDED SHIELDED
TWISTED PAIR TELEPHONE TWISTED
TYPE 24 AWG, 4-PAIR 24 AWG, NO. OF PAIRS COAXIAL TWINAXIAL PAIR FIBER OPTIC
TWO STRAND (DUPLEX)
CAT. 5 CAT. 3 2 3 4 25 RG58/U RG59/U RG62/U RG6/U 100 OHM TYPE 1 TYPE 2 TYPE 3 MULTIMODE, 62.5/125µm
O.D. inches 0.220 0.190 0.140 0.150 0.190 0.410 0.195 0.242 0.242 0.270 0.330 0.390 0.465 0.245 0.190
O.D. [mm] [5.6] [4.8] [3.6] [3.8] [4.8] [10.4] [5.0] [6.1] [6.1] [6.9] [8.4] [9.9] [11.8] [6.2] [4.8]
40% fill 37 50 93 81 50 10 47 31 31 25 16 11 8 30 50
3000 RACEWAY WIRE FILL CAPACITIES FOR DATA/COMMUNICATIONS
WITHOUT DEVICES WITH DEVICES (SURGE / GFCI)
TYPE AWG, THHN/THWN 2 4 6 8 10 12 14 2 4 6 8 10 12 14
O.D. inches 0.384 0.324 0.254 0.216 0.164 0.130 0.111 0.384 0.324 0.254 0.216 0.164 0.130 0.111
O.D. [mm] 9.8 8.2 6.5 5.5 4.2 3.3 2.8 9.8 8.2 6.5 5.5 4.2 3.3 2.8
40% fill 0 0 27 38 66 105 144 0 0 11 15 26 42 58
• Use No. 8 (5/16", 7.9mm head size) flat head fastener or equivalent to
mount base to surface.
• Utiliser une attache à tête plate de calibre 8 (tête de 7.9mm, 5/16" po.)
ou une fixation équivalente pour assujettir le tube guide-fils et les rac-
cords à la surface de montage.
• Use un sujetador de cabeza plana No. 8 (tamaño de cabeza: 7.9mm,
5/16" de pulgada) o su equivalente para unir la canalita y los accesorios
a la superficie de montaje.
• Grounding: Use ground location when provided or install a suitable
ground lug, ring terminal or locknut and ground bushing.
• Mise à la terre: Utiliser l’emplacement de terre prévu ou poser le
matériel qui convient: patte de mise à la terre, cosse circulaire à oeil ou
écrou de blocage et manchon de terre.
• Conexión a tierra: Use un localizador de tierra cuando se proporcione o
instale una orejeta de tierra, anillo terminal o contratuerca y cojinetes de
tierra apropiados.
3000 RACEWAY WIRE FILL CAPACITIES FOR POWER
3000 Two-Piece Metal Raceway

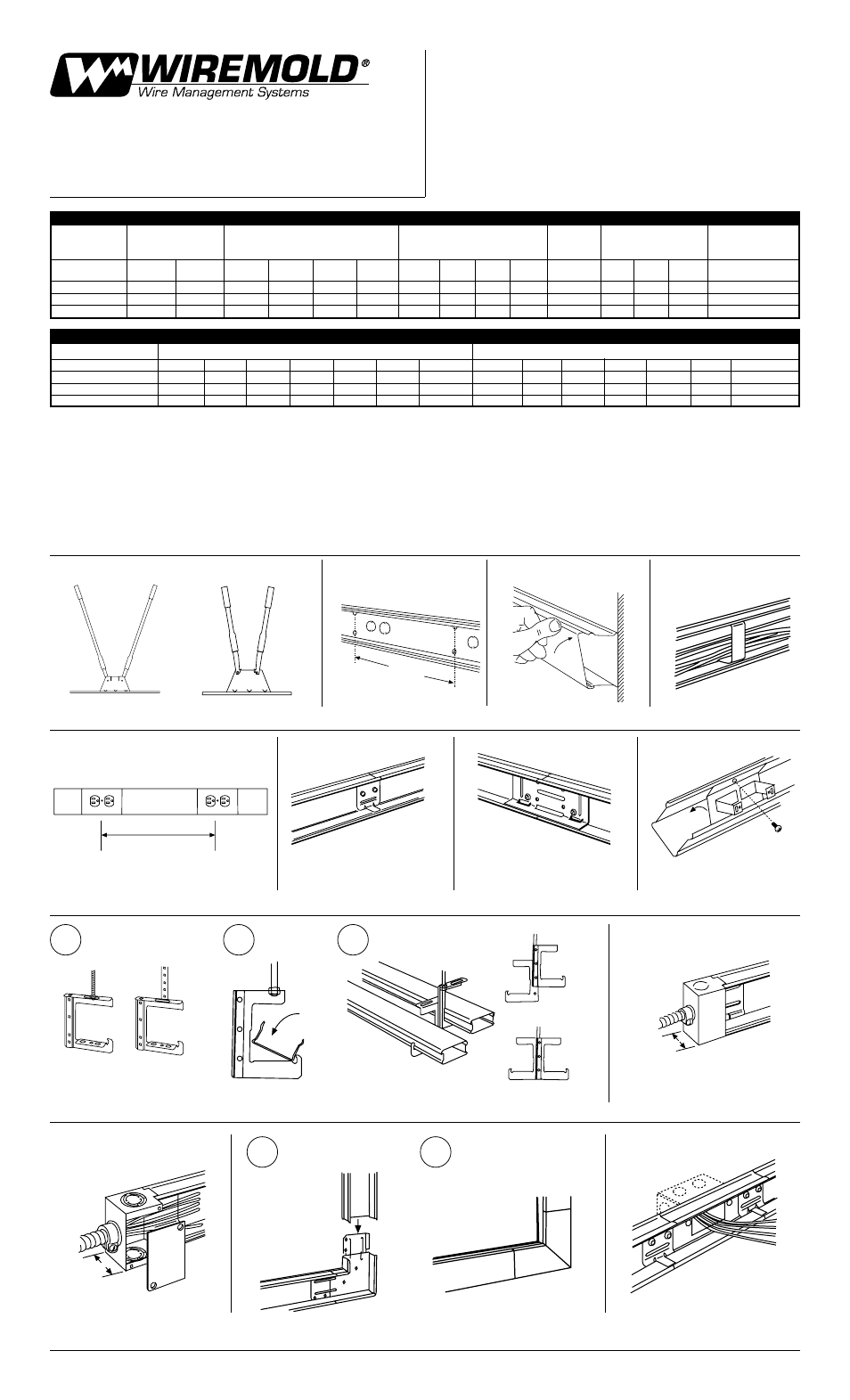

INSTALLATION INSTRUCTIONS
Wiremold Electrical Systems conform to and should be installed and properly
grounded in compliance with requirements of the current National Electrical
Code, Canadian Electrical Code or codes administered by local authorities.
All electrical products may represent possible shock or fire hazard if improperly
installed or used. Wiremold electrical products are UL listed. Made for interior
use only and should be installed in conformance with current local and/or the
National Electrical Code.
3014C
3000C075 = 12" [30.5 cm]
3000C195 = 24" [60.9 cm]
Precut
Covers
