HD SCAN™
PAGE 9
Chapter 5 : LCD SCREEN DESCRIPTION
5-1. INTRODUCTION
The LCD screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and output status of the HD SCAN ™ .
• The CONTROL MODE allows to select and adjust the parameters of the HD SCAN ™ .
5-2. LCD CONTROL BUTTONS
The LCD screen is controlled by 3 buttons:
 CONTROL knob: To scroll thru the different menus.
EXIT / MENU button: • From the STATUS MODE, press this button to display the CONTROL MODE.
• From the CONTROL MODE, press this button to:
- return to the previous menu,
- return to the STATUS MODE (press several times),
- return without safeguarding the item.
ENTER button: • From the STATUS MODE, press this button to return to the last consulted menu.
• From the CONTROL MODE, press this button to confirm a selected item.
NOTE: When entering in the CONTROL MODE, the LCD window will automatically display the STATUS MODE
after 60 seconds of inactivity of the front panel buttons.

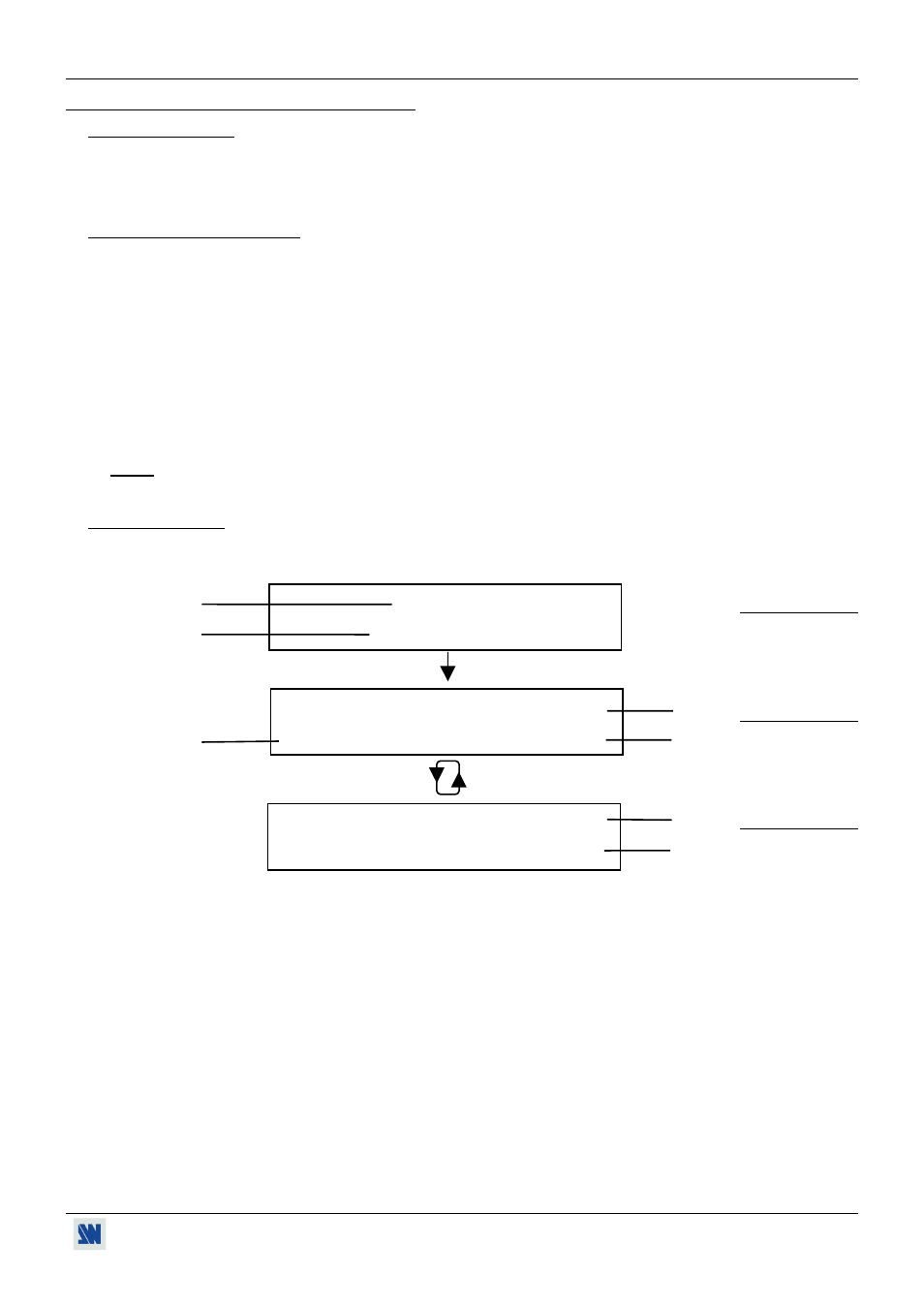

5-3. STATUS MODE
When switching ON, the LCD SCREEN shows the product's name and reference as follows:
c HD SCAN STATUS MENU
d XTD920-HDDG
OUTPUT 1080i f STATUS MENU
e internal 60 Hz g
INPUT SVGA h STATUS MENU
GENLOCK none i
c Product reference.
d Product designation.
e Referenced sync.
f Output format.
g Output frame rate.
h Input format.
i GENLOCK status.
