Chapter 1 : INTRODUCTION (continued) iX Mate™
PAGE 6

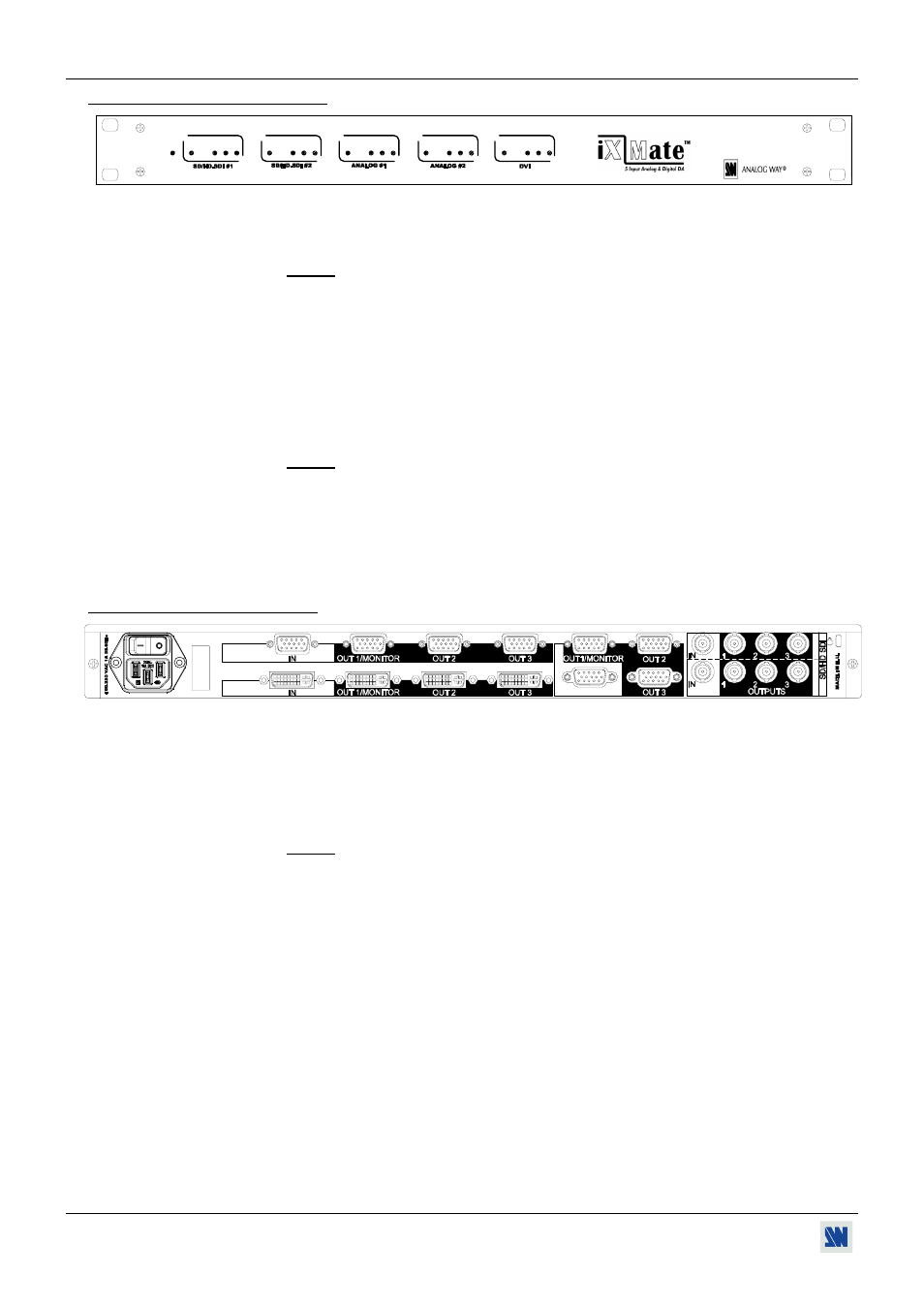

1-4. FRONT PANEL DESCRIPTION
OUTPUT LOAD
1 3 2 IN
OUTPUT LOAD
1 3 2 IN
OUTPUT LOAD
1 3 2 IN
OUTPUT LOAD
1 3 2 IN
OUTPUT LOAD
1 3 2 IN
SIGNAL
POWER
SIGNAL SIGNAL SIGNAL SIGNAL
POWER:
Power ON LED indicator.
SIGNAL IN: Input signal detected LED indicator for each input.
NOTE: -For the SD/HD-SDI inputs: the LED turns ON when a signal is detected onto the
input BNC connector.
-For the ANALOG inputs: the LED turns ON when a ground signal is detected
onto the pin #10 of the HD15 input connector. The LED may stands OFF if you
connect a C.VIDEO, S.VIDEO, YUV/RGB signal.
-For the DVI input: The LED turns ON if the input source comes directly from a
graphic board and if a display device is connected to the DVI OUT1/MONITOR
connector.
OUTPUT LOAD 1,2,3: Output load LED indicator for each output.
NOTE: -For the SD/HD-SDI outputs: the LED turns ON when a 75Ω load is detected onto
the output BNC connector.
-For the ANALOG outputs: the LED turns ON when a ground signal is detected
onto the pin #10 of the HD15 output connector. The LED may stands OFF if you
connect a C.VIDEO, S.VIDEO, YUV/RGB display.
-For the DVI outputs: The LED turns ON when a display device is connected to
the output DVI connector.
1-5. REAR PANEL DESCRIPTION
A
N
A
L
O
G
#
1 ANALOG # 2
MODEL: XM513
IN DVI-D
#
2
#
1
POWER INPUT: Standard IEC connector (100-250 VAC, 50-60 Hz, Automatic).
O / I: AC Power Switch (O=OFF, I=ON).
DVI-D: IN: DVI-D input (DVI-I female connector).
OUT1/MONITOR: Monitoring output (DVI-I female connector).
OUT 2 & OUT 3: Splitted outputs (DVI-I female connectors).
NOTE: The DVI channel is not compatible with HDCP; it may not work if you
connect a HDMI source.
ANALOG: IN: Analog input (HD15 female connector).
OUT1/MONITOR: Monitoring output (HD15 female connector).
OUT 2 & OUT 3: Splitted outputs (HD15 female connectors).
SD-HD SDI: IN: SD/HD-SDI input (BNC female connector).
OUT1, OUT 2 & OUT 3: Splitted outputs (BNC female connectors).
