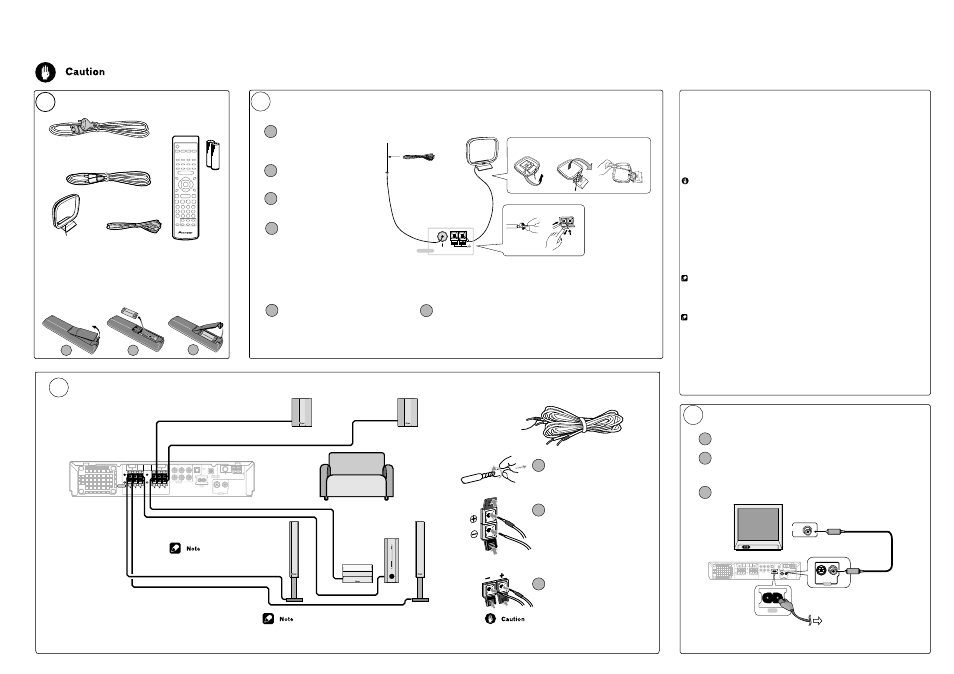

Setting Up your XV-DV505 DVD/CD Receiver
1
1 2 3
Check that you have all the accessories, then put
the batteries in the remote control.
Power cord *
Video cord
Batteries and
remote control
FM antenna
AM loop antenna
Satellite speakers:
• Front (x2)
• Center (1)
• Surround (x2)
• Subwoofer (1)
• Speaker cords (x6)
• Non-slip pads (x16) • Stem (x2)
• Base (x2)
• Cap (x2)
• Flathead screws (x4)
• Captive washer screws (x4)
• Ruler (x1)
2 Connect the AM and FM antennas to the rear panel of the DVD receiver.
1
2
3
Push open the tabs, then insert
one wire fully into each terminal.
Release the tabs to secure the AM
antenna wires.
Pull off the protective
shields of both AM antenna
wires.
4 Fix the AM loop antenna to the
attached stand.
To fix the stand to the antenna, bend in the
direction indicated by the arrow (fig. a) then
clip the loop onto the stand (fig. b).
Note: If you plan to mount the AM antenna
to a wall or other surface, secure the stand
with screws (fig. c) before clipping the loop
to the stand. Make sure the reception is clear.
5 6 Place the AM antenna on a flat
surface and point in the direction
giving the best reception.
Don’t let it come into contact with metal
objects and avoid placing near computers,
television sets or other electrical appliances. Connect the FM wire antenna to the FM UNBAL 75 Ω antenna terminal.
For best results, extend the FM antenna fully and fix to a wall or door
frame. Don’t drape loosely or leave coiled up.
Note: The signal earth ( H) is designed to reduce noise that occurs when an
antenna is connected. It is not an electrical safety earth.
When connecting this system or changing connections, be sure to switch the power off with the STANDBY/ON button, and disconnect the power cord from the AC outlet.
Do not use these speakers with any other system or amplifier as this may result in damage or fire.
3 Connect each speaker using the color-coded
speaker cords. Match them to the colored labels
above the speaker terminals.
1
2
3
Connect each speaker as shown below.
Twist and pull off the
protective shields on each
wire.
Connect one end to the DVD
receiver. Match the colored
wire with the color-coded
label (above the tabs), then
insert the colored wire into
the red (+) tab and the other
wire with the black (–) tab.
Connect the other end to the
speaker in the same way.
Color coding
For the best surround sound, setup your
speakers as above. The front left and right
speakers should be about 1.8–2.7 m apart.
Remove the supplied non-slip pads from the paper, and stick four
onto the base of each satellite speaker.
Actual speakers supplied may differ from those shown.
Congratulations! You're done setting up.
See the enclosed setup guide for detailed
instructions on setting up your front speakers.
These speaker terminals can be under HAZARDOUS VOLTAGE. When you
connect or disconnect the speaker cables, to prevent the risk of electric shock,
do not touch uninsulated parts before disconnecting the power cord.
Connect the DVD/CD receiver to your TV, then connect the
supplied power cord.
3 Connect the power cord to the AC inlet.
2
Connect one end to a video input on your TV.
4
1
Using the remote control
The remote control can be used within a range of about 7 meters from the remote sensor on the front panel, and within a
30 degree angle.
Precautions:
• The remote control may not work if there is an obstacle between the remote control and the display unit, or if the remote
control is not directed towards the remote sensor of the display unit at the correct angle.
• The remote control may not work properly if strong light such as direct sunlight or fluorescent light is shining onto the
unit’s remote sensor.
• The remote control may not work properly when this unit is used near devices emitting infrared rays, or when remote
controls of other devices which use infrared rays are used. Also, the use of this remote control may cause other devices to
work improperly.
• When the operating range of the remote becomes too short, replace the batteries.
Remote control battery caution
Incorrect use of batteries may cause leakage or rupture.
Always be sure to follow these guidelines:
• Always insert batteries into the battery compartment correctly matching the
positive
ª and negative · polarities, as shown by the display inside the compartment.
• Never mix new and used batteries.
• Batteries of the same size may have different voltages, depending on brand. Do not mix different brands of batteries.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules
that apply in your country or area.
• In order to prevent battery leakage, remove the batteries when not using the remote control for an extended period (one
month or more). If leakage occurs, carefully wipe away any battery fluid inside the compartment, and replace the batteries
with new ones.
• Do not allow books or other objects to rest on top of the remote control, since the buttons may be depressed, causing
faster exhaustion of the batteries.
Additional notes on connecting antennas
• Keep antenna cables away from other cables and the display unit and main set.
• To assure optimum reception, pull the FM antenna so that it is fully extended and not coiled or hanging at the rear of the unit.
• If reception with the supplied antenna is poor, see the Additional Connections section in the main operating instructions
for details on connecting outdoor antennas.
Additional notes on speaker placement
Place speakers as shown in step 4 to achieve the optimum surround sound effect
• Install the main front left and right speakers at an equal distance from the TV.
• For optimum effect, install the rear speakers slightly above ear level.
• This system's speakers are magnetically shielded, so there's virtually no picture color distortion when they are placed near
a TV. In the rare event that there is some picture color interference, switch power to the TV off, and wait 15 to 30 minutes
before switching on again.
• Install the center speaker above or below the TV so that the sound of the center channel is localized at the TV screen.
• When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means.
Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or
damaging the speaker.
• Do not connect the supplied speakers with any other amplifier. This may result in malfunction or fire.
* In some countries or regions, the shape of the
power plug may sometimes differ from that
shown in the explanatory drawings.
Connect the other end to the video output of the DVD receiver.
This player is equipped with copy protection technology. Do not connect this
player to your TV via a VCR using AV cables, as the picture from this player will not
appear properly on your TV.
6 6 6 6 6 6
FM UNBAL 75 Ω AM LOOP ANTENNA
S-VIDEO OUT VIDEO OUT
OPTICAL IN OUT IN
AC IN
IN CENTER SURROUND R L FRONT R L SUB WOOFER
R
L
TV LINE 1
LINE 2
SPEAKERS
AUDIO
AUDIO
VIDEO
ANTENNA
6 6 6 6 6 6
FM UNBAL 75 Ω AM LOOP ANTENNA
S-VIDEO OUT VIDEO OUT
OPTICAL IN OUT IN
AC IN
IN CENTER SURROUND R L FRONT R L SUB WOOFER R
L
TV LINE 1
LINE 2
SPEAKERS
AUDIO
AUDIO
VIDEO
ANTENNA
3
1
2
4
6
fig. a fig. b fig. c
ANTENNA FM UNBAL 75 Ω AM LOOP ANTENNA
VIDEO IN
To AC outlet
S-VIDEO OUT VIDEO OUT VIDEO
AC IN
Front left
(White)
Front right
(Red)
Surround left
(Blue)
Surround right
(Grey)
Listening position
Center (Green)
Subwoofer (Purple)
